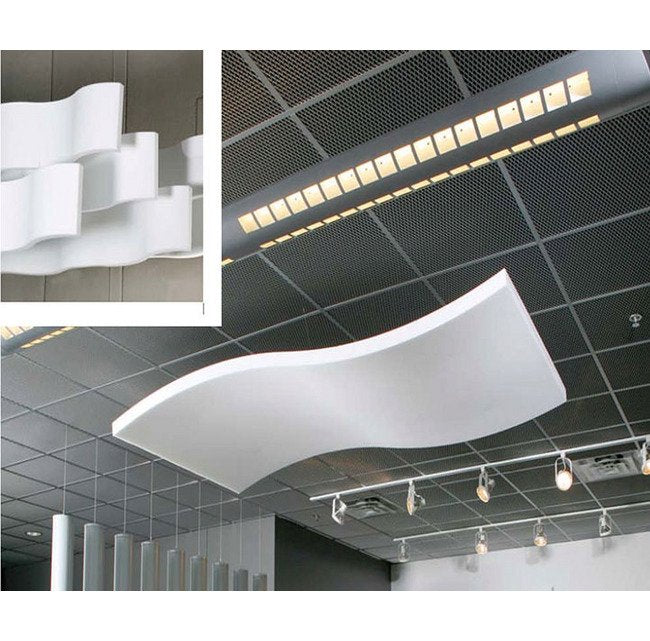

WHISPERWAVE™ Baffles provide exceptional acoustical control and design flexibility. Lightweight and easy to install, WHISPERWAVE™ products are ideal for use in classrooms, cafeterias, multipurpose rooms, indoor swimming pools, offices, libraries, religious facilities and other large open areas.

Product Specifications

Advantages

Standard and custom wave designsExceptional acoustical control across all frequenciesOffered in panel, baffle, ceiling cloud and awning optionsEasy installationClass 1 fire-rated

Installation

Corkscrew hangers are installed in the field for either wall-to-wall cable installation or ceiling-mounted cable installationCan be aligned in the same direction or arranged so that every other baffle is turned 90 degrees

Note

Ceiling-mounted cable installation

Physical Data Willtec Baffle Size

12 x 48 in

Physical Data Willtec Density

0.5 to 0.7 lb/ft³

Physical Data Willtec Fire Resistance

Class 1 per ASTM E 84 (all finishes) | Meets UL 1715 (Willtec® natural)

Physical Data Willtec Flame Spread Per Astm E 84

Natural : 5 | Painted : 10 | Hypalon®-coated : 25

Physical Data Willtec Fungus Resistance

Rating No. 0 per ASTM G21

Physical Data Willtec Long Term Service Temperature

302 ºF

Physical Data Willtec Material

Open-cell melamine-based foamWHISPERWAVE™ is made from willtec® foam, which is Class 1 fire-rated for flame spread and smoke density. willtec® natural also meets the corner burn test UL 1715. WHISPERWAVE™ is offered in natural white and gray and can be painted or Hypalon®-coated.

Physical Data Willtec Microbial Growth

Passes UL 181, Section 11

Physical Data Willtec Note For Baffle Size

Custom baffle sizes available

Physical Data Willtec Smoke Density Per Astm E 84

Natural : 50 | Painted : 10 | Hypalon®-coated : 65

Physical Data Willtec Toxicity

Passes University of Pittsburgh Toxicity of Smoke Emission test

Sound Absorption Finishes

Sound Absorption Noise Reduction Coefficient Nrc Per Astm C423 9

0.95

Sound Absorption Sound Absorption Coefficient 125 Hertz Hz Frequ

0.13

Sound Absorption Sound Absorption Coefficient 1 Kilohertz Hz Fre

1.18

Sound Absorption Sound Absorption Coefficient 250 Hertz Hz Frequ

0.41

Sound Absorption Sound Absorption Coefficient 2 Kilohertz Hz Fre

1.18

Sound Absorption Sound Absorption Coefficient 4 Kilohertz Hz Fre

1.13

Sound Absorption Sound Absorption Coefficient 500 Hertz Hz Frequ

1.02

Sound Absorption Thickness

2 in
