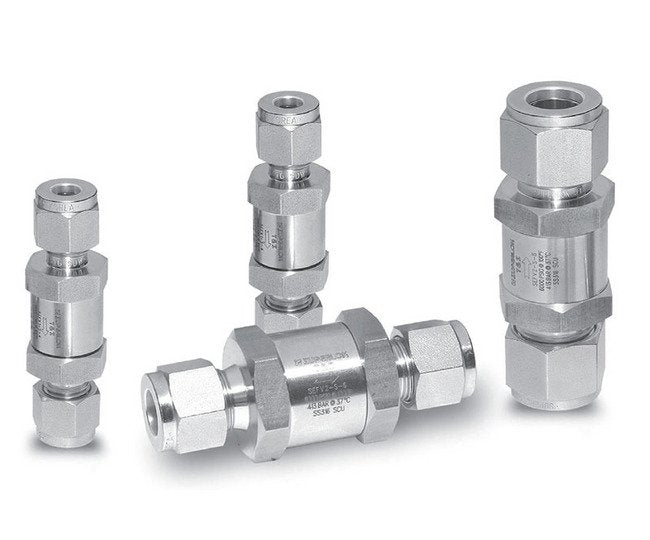

• 3/8 in. SEFV Industrial Excess Flow Valve with SUPERLOK® Connections - Image 1
  • 3/8 in. SEFV Industrial Excess Flow Valve with SUPERLOK® Connections - Image 2
1 2
Superlok-Mako Products LLC →

3/8 in. SEFV Industrial Excess Flow Valve with SUPERLOK® Connections

3/8 in. SEFV Industrial Excess Flow Valve with SUPERLOK® Connections

SEF-bff06c

Precision flow control with SEFV 3/8 in. Industrial Excess Flow Valve for reliable performance in institutional settings.

$129.99
$129.99
Sale

Initiate Order

3/8 in. SEFV Industrial Excess Flow Valve with SUPERLOK® Connections

3/8 in. SEFV Industrial Excess Flow Valve with SUPERLOK® Connections

$129.99

Quantity: 1

Claim Your Seller Account

3/8 in. SEFV Industrial Excess Flow Valve with SUPERLOK® Connections

3/8 in. SEFV Industrial Excess Flow Valve with SUPERLOK® Connections

$129.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The SEFV Series 3/8 inch Industrial Excess Flow Valve with SUPERLOK® Inlet and Outlet End Connections is engineered to control fluid flow with precision. Crafted from 316 Stainless Steel, this valve boasts a pressure rating of 6000 psig and a temperature range of -10 to 400 ºF. With features like automatic reset, variety of end connections, and factory testing, it ensures reliability and easy maintenance. Ideal for institutional applications requiring dependable flow regulation.

Product Specifications

Features Features
2-piece body : Allows for simple spring and seal maintenanceSpring-loaded actuationAutomatic reset : The bleed vent allows the valve to automatically resetVariety of end connections : Can be assembled in any system or applicationStainless steel constructionEvery valve is factory tested for proper functionality.
Note Note
Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Operation Operation
The poppet is loaded by a spring in the open position during normal system operation.if the system becomes unbalanced and the downstream pressure drops, the poppet rapidly move to the tripped position.The poppet will remain in the tripped position until system pressure becomes equal across the bleed vent in the poppet.The bleed vent in the poppet will allow the pressure to slowly equalize across the valve if the downstream line is closed or repaired.When the system pressure becomes equal, the spring automatically reset the poppet to the open position.
Technical Specs Body Material
316 Stainless Steel

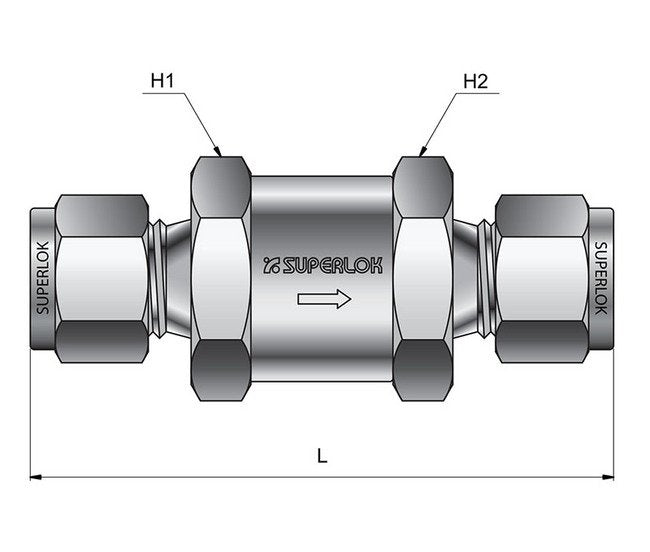

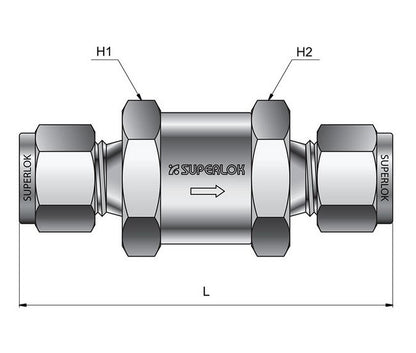

Technical Specs Dimension H1
1 in | 25.4 mm
Technical Specs Dimension H2
1 in | 25.4 mm
Technical Specs Dimension L
2.75 in | 69.9 mm
Technical Specs Inlet End Connections
3/8 in. SUPERLOK®
Technical Specs Outlet End Connections
3/8 in. SUPERLOK®
Technical Specs Pressure Rating At 100 Degree Fahrenheit F 38 De
6000 psig | 413 bar
Technical Specs Temperature Rating
-10 to 400 ºF | -23 to 204 ºC
