3/8 in. SUPERLOK® Elbow Type Purge Valve

3/8 in. SUPERLOK® Elbow Type Purge Valve

SPU-a231c8

Efficient and leaktight 3/8 in. SUPERLOK® Elbow Type Purge Valve for manual bleed, vent, or drain operations. Temperature range: 65 to 600 ºF, pressure rating: 4000 psig.

$69.99
$69.99
Sale

Initiate Order

3/8 in. SUPERLOK® Elbow Type Purge Valve

3/8 in. SUPERLOK® Elbow Type Purge Valve

$69.99

Quantity: 1

Claim Your Seller Account

3/8 in. SUPERLOK® Elbow Type Purge Valve

3/8 in. SUPERLOK® Elbow Type Purge Valve

$69.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The 3/8 in. SUPERLOK® Elbow Type Purge Valve from the SPUV Series is designed for manual bleed, vent, or drain operations, providing leaktight closure with a quarter turn. Constructed with 316 Stainless Steel or Brass, it offers a temperature range of 65 to 600 ºF and a pressure rating of 4000 psig. Compact, easy to install, and featuring various end connections, it ensures safe and efficient fluid system management.

Product Specifications

Application Application
SUPERLOK purge valves are manual bleed, vent, or drain valves. One-quarter turn with a wrench from finger-tight obtains leaktight closure on first makeup. Snugging with a wrench ensures closure to the rated pressure with subsequent makeups.
Caution Caution
When installing a SUPERLOK purge valve, position the vent hole to direct system fluid away from operating personnel. The vent hole rotates with the cap. changing the direction of discharge as the cap is turned. Always open purge valves slowly. These valves contain no packing, so some fluid seepage will occur when the valves are opened. operating personnel must protect themselves from exposure to system fluids.
Features Features
Compact for convenient installation.Vent hole is bled excessive liquid or gas from system lines.Cap is crimped to valve body to prevent accidental disassembly.Variety of end connections : SUPERLOK® tube fittings, NPT and ISO threads.
Note Note
Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Data Pressure Rating At 100 Degree Fahrenheit F 38 Deg
4000 psig | 275 bar
Technical Data Temperature Rating
65 to 600 ºF | -54 to 315 ºC
Technical Specs Body Material
316 Stainless Steel | Brass

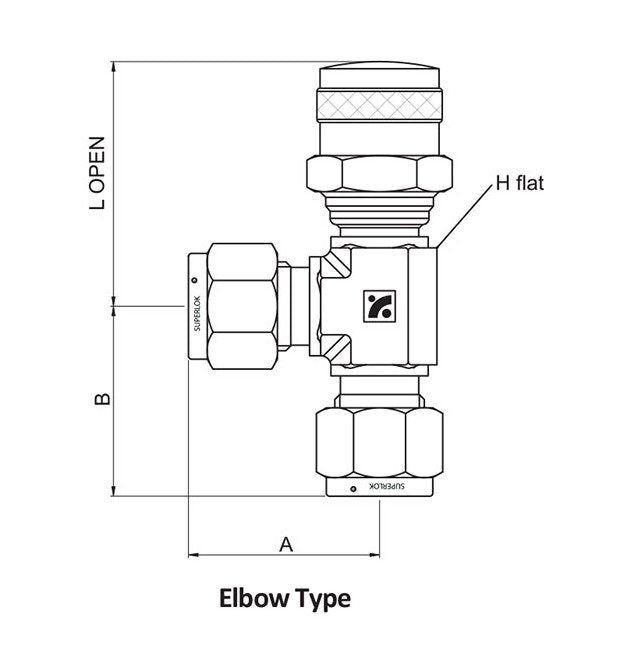

Technical Specs Dimension A
1.20 in | 30.5 mm
Technical Specs Dimension B
1.20 in | 30.5 mm
Technical Specs Dimension H
0.63 in | 15.9 mm
Technical Specs Dimension L
1.49 in | 38.0 mm
Technical Specs Inlet End Connections
3/8 in. SUPERLOK®
Technical Specs Pattern Designator
Elbow Type
Technical Specs Tube Outside Diameter
3/8 in | 10 mm
