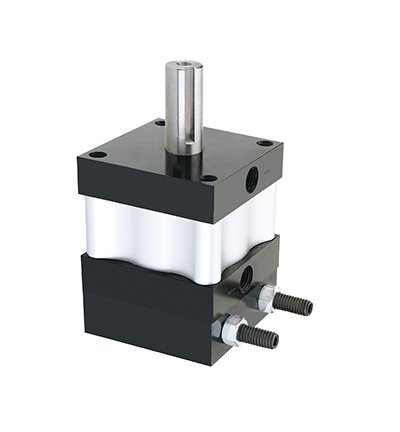

500 in-lb Rotary Vane Actuator with 270º Rotation
500 in-lb Rotary Vane Actuator with 270º Rotation
SKU:ROT-dc3887
Achieve precise rotation control with the 500 in-lb Rotary Vane Actuator featuring 270º rotation. Ideal for industrial applications.
Regular price
$799.99
Regular price
Sale price
$799.99
Unit price
per
Initiate Order
500 in-lb Rotary Vane Actuator with 270º Rotation
$799.99
Quantity: 1
Claim Your Seller Account
500 in-lb Rotary Vane Actuator with 270º Rotation
$799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 500 in-lb Rotary Vane Actuator offers precise rotation control with a maximum torque of 500 in-lb and a rotation angle of 270 degrees. Designed by Compact Automation Products, this hydraulic or pneumatic actuator ensures zero backlash, continuous full torque, and precise repeatability. With patented Urethane seals for durability and options like stop cushioning and position feedback, this actuator is ideal for industrial applications requiring reliable performance.
Product Specifications
Features Features
Stop Cushioning (Optional)Position Feedback (Optional)16 base Comp-Act®'s with torque outputs from 87 in.lbs to 1000 in.lbs.Rotations 45, 90,180 & 270 degreesOne moving part providing:Zero BacklashNo loss of motion.Precise RepeatabilityContinuous full torque throughout the rotationPatented Urethane seals for:Long cycle life and non-lube serviceOptions and modifications to fit your application
Specifications Actuator Style
Rotary Vane (Single)
Specifications Body Material
Aluminum
Specifications Length
10.38 in
Specifications Maximum Torque
500 in·lb
Specifications Number Of Shafts
Single Shaft
Specifications Operating Pressure Range High
200 psi
Specifications Operating Pressure Range Low
35 psi
Specifications Operating Temperature High
180 ºF
Specifications Operating Temperature Low
-20 ºF
Specifications Physical Dimensions
3.03 in²
Specifications Rotational Output
Shaft
Specifications Rotation Angle
270 º | Indexing/Multi-Position (Optional)
Specifications Shaft Length Or Table Height
1.75 in
Specifications Shaft Or Table Diameter
0.75 in
Specifications Standard
english_2_1_2
Specifications Technology Type
Hydraulic (Optional) | Pneumatic
