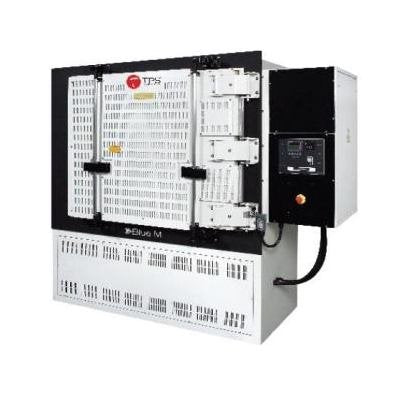

The Blue M Ultra-Temp® Standard High-Temperature Industrial Oven is ideal for annealing, heat treating, stress relieving, binder burn-out, ceramic firing and a number of other high-temperature processes.
Product Specifications
Specifications Ac Voltage
208 V | 240 V | 480 V
Specifications Engineered Options
Lead-in ports | Redundant over-temperature protection | Single and double doors and hinge placement options | Special control systems | Vycor® glass observation panel
Specifications Exterior Depth
32 in | 914 mm
Specifications Exterior Height
66 in | 1778 mm
Specifications Exterior Width
40 in | 1143 mm
Specifications Frequency
60 Hz
Specifications General Specifications
Resolution: ± 0.1°C | Temperature range: 15°C above ambient to 704°C (1299°F) | Uniformity: ± 2% of setpoint | Control Accuracy: ± 0.5°C
Specifications Interior Depth
14 in | 356 mm
Specifications Interior Height
14 in | 356 mm
Specifications Interior Volume
1.6 ft³
Specifications Interior Width
14 in | 356 mm
Specifications Line Current Per 208 Volts V At 3 Phase
30 A
Specifications Line Current Per 240 Volts V At 3 Phase
34 A
Specifications Machine Footprint
9.7 ft²
Specifications Rated Power Per 208 Volts V At 3 Phase
9 kW
Specifications Rated Power Per 240 Volts V At 3 Phase
12 kW
Specifications Ultra Temp High Temperature Industrial Oven Featu
6 Inch (in) of mineral wool insulation to minimize heat loss | Blue M Pivot Lock door latch to seal gaskets at the highest operating temperatures | Blue M tadpole door gasket design | Heat shielded doors for low skin temperature | Safety door switch shuts down heaters and blower when door opens | Welded and sealed inner chamber eliminates fume migration into the insulation
Specifications Ultra Temp Options
24-hour, 7-day digital timer | Circular chart recorder | Comm-Link RS-485 to RS-232 converter | Motorized exhaust damper | Reverse door hinge | Stainless steel shelves
