#7 Nylon Strip Brush with 96-inch Length - Galvanized Backing

#7 Nylon Strip Brush with 96-inch Length - Galvanized Backing

Upgrade your industrial cleaning with the durable #7 Nylon Strip Brush - 96-inch length, galvanized backing, crimped black nylon fill.

$49.99
$49.99
Sale

Initiate Order

#7 Nylon Strip Brush with 96-inch Length - Galvanized Backing

#7 Nylon Strip Brush with 96-inch Length - Galvanized Backing

$49.99

Quantity: 1

Claim Your Seller Account

#7 Nylon Strip Brush with 96-inch Length - Galvanized Backing

#7 Nylon Strip Brush with 96-inch Length - Galvanized Backing

$49.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

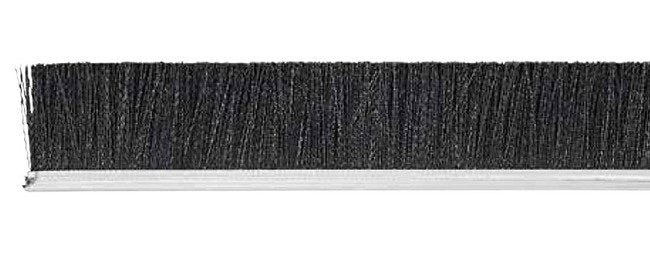

Enhance your cleaning and sealing operations with the #7 Nylon Strip Brush featuring a galvanized backing and crimped black nylon fill. With an overall length of 96 inches and a precise 0.014-inch filament diameter, this brush provides durability and effectiveness in various industrial applications. The staple construction ensures consistent quality and reliability, meeting the highest standards set forth in government, defense, and institutional procurement.

Product Specifications

Accessories
Metal Back Strip HoldersPart Number - AH700012Overall Length - 12 in.Backing Material - AluminumBacking Size - #7;Finish - Clear AnodizedPart Number - AH700024Overall Length - 24 in.Backing Material - AluminumBacking Size - #7;Finish - Clear AnodizedPart Number - AH700036Overall Length - 36 in.Backing Material - AluminumBacking Size - #7;Finish - Clear AnodizedPart Number - AH700048Overall Length - 48 in.Backing Material - AluminumBacking Size - #7;Finish - Clear AnodizedPart Number - AH700060Overall Length - 60 in.Backing Material - AluminumBacking Size - #7;Finish - Clear AnodizedPart Number - AH700072Overall Length - 72 in.Backing Material - AluminumBacking Size - #7;Finish - Clear AnodizedPart Number - AH700084Overall Length - 84 in.Backing Material - AluminumBacking Size - #7;Finish - Clear AnodizedPart Number - AH700096Overall Length - 96 in.Backing Material - AluminumBacking Size - #7;Finish - Clear AnodizedPart Number - AH700412Overall Length - 12 in.Backing Material - AluminumBacking Size - #7;Finish - Clear AnodizedPart Number - AH700424Overall Length - 24 in.Backing Material - AluminumBacking Size - #7;Finish - Clear AnodizedPart Number - AH700436Overall Length - 36 in.Backing Material - AluminumBacking Size - #7;Finish - Clear AnodizedPart Number - AH700448Overall Length - 48 in.Backing Material - AluminumBacking Size - #7;Finish - Clear AnodizedPart Number - AH700460Overall Length - 60 in.Backing Material - AluminumBacking Size - #7;Finish - Clear AnodizedPart Number - AH700472Overall Length - 72 in.Backing Material - AluminumBacking Size - #7;Finish - Clear AnodizedPart Number - AH700484Overall Length - 84 in.Backing Material - AluminumBacking Size - #7;Finish - Clear AnodizedPart Number - AH700496Overall Length - 96 in.Backing Material - AluminumBacking Size - #7;Finish - Clear AnodizedPart Number - AH700812Overall Length - 12 in.Backing Material - AluminumBacking Size - #7;Finish - Clear AnodizedPart Number - AH700824Overall Length - 24 in.Backing Material - AluminumBacking Size - #7;Finish - Clear AnodizedPart Number - AH700836Overall Length - 36 in.Backing Material - AluminumBacking Size - #7;Finish - Clear AnodizedPart Number - AH700848Overall Length - 48 in.Backing Material - AluminumBacking Size - #7;Finish - Clear AnodizedPart Number - AH700860Overall Length - 60 in.Backing Material - AluminumBacking Size - #7;Finish - Clear AnodizedPart Number - AH700872Overall Length - 72 in.Backing Material - AluminumBacking Size - #7;Finish - Clear AnodizedPart Number - AH700884Overall Length - 84 in.Backing Material - AluminumBacking Size - #7;Finish - Clear AnodizedPart Number - AH700896Overall Length - 96 in.Backing Material - AluminumBacking Size - #7;Finish - Clear AnodizedPart Number - AH701212Overall Length - 12 in.Backing Material - AluminumBacking Size - #7;Finish - Clear AnodizedPart Number - AH701224Overall Length - 24 in.Backing Material - AluminumBacking Size - #7;Finish - Clear AnodizedPart Number - AH701236Overall Length - 36 in.Backing Material - AluminumBacking Size - #7;Finish - Clear AnodizedPart Number - AH701248Overall Length - 48 in.Backing Material - AluminumBacking Size - #7;Finish - Clear AnodizedPart Number - AH701260Overall Length - 60 in.Backing Material - AluminumBacking Size - #7;Finish - Clear AnodizedPart Number - AH701272Overall Length - 72 in.Backing Material - AluminumBacking Size - #7;Finish - Clear AnodizedPart Number - AH701284Overall Length - 84 in.Backing Material - AluminumBacking Size - #7;Finish - Clear AnodizedPart Number - AH701296Overall Length - 96 in.Backing Material - AluminumBacking Size - #7;Finish - Clear AnodizedPart Number - AH701612Overall Length - 12 in.Backing Material - AluminumBacking Size - #7;Finish - Clear AnodizedPart Number - AH701624Overall Length - 24 in.Backing Material - AluminumBacking Size - #7;Finish - Clear AnodizedPart Number - AH701636Overall Length - 36 in.Backing Material - AluminumBacking Size - #7;Finish - Clear AnodizedPart Number - AH701648Overall Length - 48 in.Backing Material - AluminumBacking Size - #7;Finish - Clear AnodizedPart Number - AH701660Overall Length - 60 in.Backing Material - AluminumBacking Size - #7;Finish - Clear AnodizedPart Number - AH701672Overall Length - 72 in.Backing Material - AluminumBacking Size - #7;Finish - Clear AnodizedPart Number - AH701684Overall Length - 84 in.Backing Material - AluminumBacking Size - #7;Finish - Clear AnodizedPart Number - AH701696Overall Length - 96 in.Backing Material - AluminumBacking Size - #7;Finish - Clear AnodizedPart Number - AH702012Overall Length - 12 in.Backing Material - AluminumBacking Size - #7;Finish - Clear AnodizedPart Number - AH702024Overall Length - 24 in.Backing Material - AluminumBacking Size - #7;Finish - Clear AnodizedPart Number - AH702036Overall Length - 36 in.Backing Material - AluminumBacking Size - #7;Finish - Clear AnodizedPart Number - AH702048Overall Length - 48 in.Backing Material - AluminumBacking Size - #7;Finish - Clear AnodizedPart Number - AH702060Overall Length - 60 in.Backing Material - AluminumBacking Size - #7;Finish - Clear AnodizedPart Number - AH702072Overall Length - 72 in.Backing Material - AluminumBacking Size - #7;Finish - Clear AnodizedPart Number - AH702084Overall Length - 84 in.Backing Material - AluminumBacking Size - #7;Finish - Clear AnodizedPart Number - AH702096Overall Length - 96 in.Backing Material - AluminumBacking Size - #7;Finish - Clear AnodizedPart Number - AH702412Overall Length - 12 in.Backing Material - AluminumBacking Size - #7;Finish - Clear AnodizedPart Number - AH702424Overall Length - 24 in.Backing Material - AluminumBacking Size - #7;Finish - Clear AnodizedPart Number - AH702436Overall Length - 36 in.Backing Material - AluminumBacking Size - #7;Finish - Clear AnodizedPart Number - AH702448Overall Length - 48 in.Backing Material - AluminumBacking Size - #7;Finish - Clear AnodizedPart Number - AH702460Overall Length - 60 in.Backing Material - AluminumBacking Size - #7;Finish - Clear AnodizedPart Number - AH702472Overall Length - 72 in.Backing Material - AluminumBacking Size - #7;Finish - Clear AnodizedPart Number - AH702484Overall Length - 84 in.Backing Material - AluminumBacking Size - #7;Finish - Clear AnodizedPart Number - AH702496Overall Length - 96 in.Backing Material - AluminumBacking Size - #7;Finish - Clear AnodizedPart Number - AH702812Overall Length - 12 in.Backing Material - AluminumBacking Size - #7;Finish - Clear AnodizedPart Number - AH702824Overall Length - 24 in.Backing Material - AluminumBacking Size - #7;Finish - Clear AnodizedPart Number - AH702836Overall Length - 36 in.Backing Material - AluminumBacking Size - #7;Finish - Clear AnodizedPart Number - AH702848Overall Length - 48 in.Backing Material - AluminumBacking Size - #7;Finish - Clear AnodizedPart Number - AH702860Overall Length - 60 in.Backing Material - AluminumBacking Size - #7;Finish - Clear AnodizedPart Number - AH702872Overall Length - 72 in.Backing Material - AluminumBacking Size - #7;Finish - Clear AnodizedPart Number - AH702884Overall Length - 84 in.Backing Material - AluminumBacking Size - #7;Finish - Clear AnodizedPart Number - AH702896Overall Length - 96 in.Backing Material - AluminumBacking Size - #7;Finish - Clear AnodizedPart Number - STH700012Overall Length - 12 in.Backing Material - Stainless SteelBacking Size - #7;Finish - Clear AnodizedPart Number - STH700024Overall Length - 24 in.Backing Material - Stainless SteelBacking Size - #7;Finish - Clear AnodizedPart Number - STH700036Overall Length - 36 in.Backing Material - Stainless SteelBacking Size - #7;Finish - Clear AnodizedPart Number - STH700048Overall Length - 48 in.Backing Material - Stainless SteelBacking Size - #7;Finish - Clear AnodizedPart Number - STH700060Overall Length - 60 in.Backing Material - Stainless SteelBacking Size - #7;Finish - Clear AnodizedPart Number - STH700072Overall Length - 72 in.Backing Material - Stainless SteelBacking Size - #7;Finish - Clear AnodizedPart Number - STH700084Overall Length - 84 in.Backing Material - Stainless SteelBacking Size - #7;Finish - Clear AnodizedPart Number - STH700096Overall Length - 96 in.Backing Material - Stainless SteelBacking Size - #7;Finish - Clear AnodizedNote - Clear Anodized Finish in StockMounting holes and slots
Additional Information
Metal Back Strip Attachment to Core, Shaft or TubeAfter the straight metal back strip brush is formed, the strip is attached to the core, shaft or tube and wound under tension to make the coil cylinder brush. We are able to wind the strip right or left handed at the desired pitch to determine the brush density. Strips can be wound in either an open wound or close wound pitch.Stapled Set Tufted Cylinder and Circular BrushesStapled brushes consist of a series of individual tufts of fill material inserted into a bored hole in a solid block of wood or plastic. The tufts of fill material are secured to the block by a wire staple. Stapled set brushes are made with a variety of hole or tuft patterns to obtain the desired brush density and brushing effect. Hole patterns can be made with virtually any brush pattern.As with coil wound cylinder brushes, stapled set brushes can be made with similar core constructions. The plastic or wood core can be press fit to a shaft, made with collars to accept customer’s shaft, made with stub ends or ends can be machined and inserted into ends of core. Steel or aluminum tubing can be press fit into the inside diameter of the tube for mounting collars and added support. Bearings can be press fit into circular brushes.Core material is generally made of a hard wood or plastic. Most common types of plastics used are PVC, Acetal, high-density polyethylene, UHMW, ABS or polypropylene.
Assembled Coils
A finished coil can be assembled to a core, shaft, tube, or free coiled for mounting to the customers shaft in the field. Assembled coils can be tack welded or attached with an alligator clip to the core, shaft or tube. A larger winding pitch provides a less dense brush and conforms better to the surface being brushed. The photos above illustrate a loose or free coil and an assembled coil brush construction.
Configurator Coiled
Metal back strip brushes are manufactured into free or loose coils by winding them onto a mandrel or free coiling them. They can be produced as internal or external coils depending on the application and can be made with a close wound, tight coil making an extremely dense brush face or an open wound, loose coil with a lead producing less density in the brush face. Coils are manufactured to replace an existing coil on installed equipment or mounted onto a shaft or tube as a cylinder or rotary brush. Applications include conveyor cleaning, glass washing, vegetable and fruit washing, sheet metal polishing, cleaning trammel screens and used as an auger or screw to move product in a given direction.
Configurator Cylinder Or Rotary
A metal back strip brush is attached and wound directly to a core, shaft or tube. The coil is wound under tension onto a core, shaft or tube for secure mounting, or free coiled and then assembled to the core. A coil can be close or open wound depending on the desired brush density. Dynamic balancing is provided, if required, to assure complete surface contact regardless of the brush size and speed of the brush. Brushes are generally used in conveyor cleaning, glass washing, vegetable and fruit washing, sheet metal polishing, cleaning trammel screens and used as an auger or screw to move product in a given direction.
Configurator External Ring
External rings are metal back strip brushes wound with the filament to the outside. They are used as individual rings or mounted together to make a wide brush face. They are used in various cleaning and polishing applications.
Configurator Formed Cup
A metal back strip brush is formed into a 360 degree circle or segments of a full circle. The backing sides can be formed vertical or at various angles. Generally used for vacuum hose seals, router enclosures for dust and particle collection on drill presses.
Configurator Formed Strip
The metal back strip brush can be formed into irregular shapes. With a range of configurations, strip brushes can be formed into ovals, squares, rectangles, “L” and “V” shapes and compound curves. Formed to meet many shapes and applications.
Configurator Internal Ring
An internal ring is manufactured by forming a metal back strip brush with the filament material to the inside. The ring can be sprung open to place over a shaft or split in halves or segments to be mounted over a shaft. Ideally used for cleaning the outside surfaces of plastic or metal tubing and rod or used for drum and shaft seals. In high temperature applications, wire filament is recommended.
Configurator Shapes And Construction
Prior to coiling the brush, a metal back strip brush is made first. Strip brushes consist of densely compressed synthetic, natural bristles or wire filaments laid down over a continuous metal channel formed into a "U" shape. A binding wire is inserted over the filament materials and forced down into the partially formed metal backing. The binding wire causes the fill material to form vertically as the metal backing forms and closes over the binding wire and filament.
Configurator Straight Strip
The most economical and common manufacturing shape for metal back strip brushes. Brushes are used individually or mounted parallel on a flat surface for a wider brush face. Applications include window seals, door and dock leveler seals, air flow seals, cable management, engine seals, conveyor cleaning, splash curtains, machine guards, static control, transportation vehicle seals and cleaning glass
Formed Dimensions Base Standard Formed Dimensions
0.310 in
Formed Dimensions Base Standard Formed Dimensions Tolerance
0.010 in
Formed Dimensions Leg Standard Formed Dimensions
0.340 in
Formed Dimensions Leg Standard Formed Dimensions Tolerance
0.015 in
Holder Options

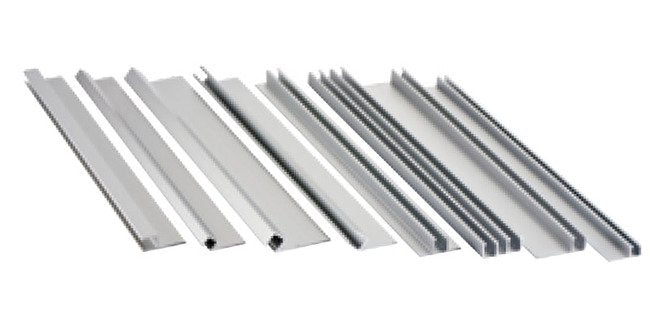

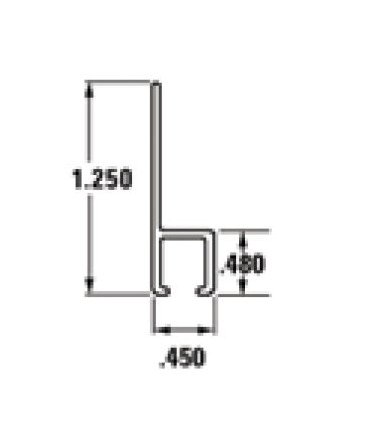

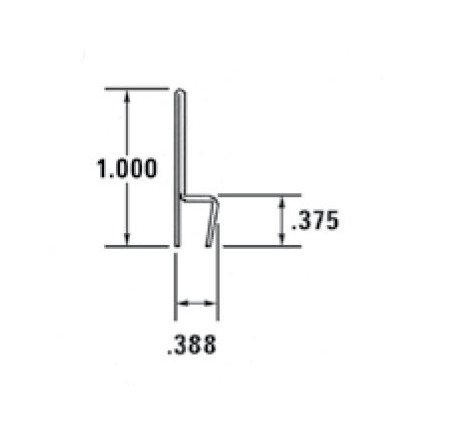

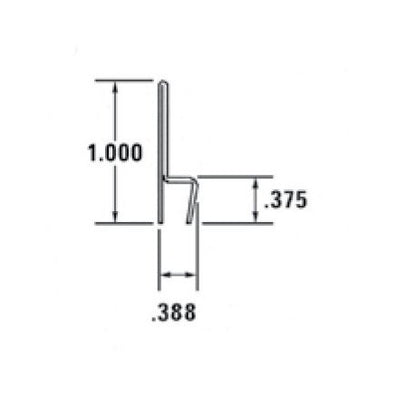

We offer strip brush holders for our metal back strip brushes in extruded aluminum for #2; 1/2, #3;, #4;, #7; and #10; backing sizes, and in formed stainless steel in #4; and #7; backing sizes. A flexible PVC holder is also available for #2; 1/2 backing size. The holders are produced with a variety of profile shapes for straight and angled mounting. The different profile shapes ensure the brush is mounted at an optimal position for maximum surface contact and effectiveness.We stock aluminum holders with clear anodized finishes. The anodized finish provides the aluminum with a naturally protective coating, strengthening the durability and extending the life of the brush holder.For our stapled set line, the all-in-one designs conveniently include holders, which are available in two styles: Clip Style and h-Profile. The integrated Clip Style backing makes placing and moving the brush fast and easy. The integrated h-Profile allows for quick and easy mounting without needing to purchase a separate holder. We stock flexible PVC holders in Clip Style and h-Profile to match with our new Fuze Flex™ Strip Brushes.
Level Or Crimped Level Or Crimped Synthetic Fill Size Range
0.003 to 0.120 in
Level Or Crimped Level Or Crimped Wire Fill Size Range
0.003 to 0.014 in
Note
Other trim lengths, overall lengths, fill material and backing sizes are available upon request.
Overall Trim Maximum Overall Trim
12.00 in
Overall Trim Maximum Overall Trim Tolerance
0.032 in
Overall Trim Minimum Overall Trim
0.625 in
Overall Trim Minimum Overall Trim Tolerance
0.032 in
Specifications Backing Material
Galvanized

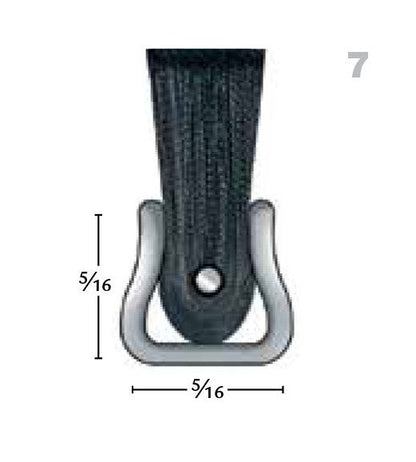

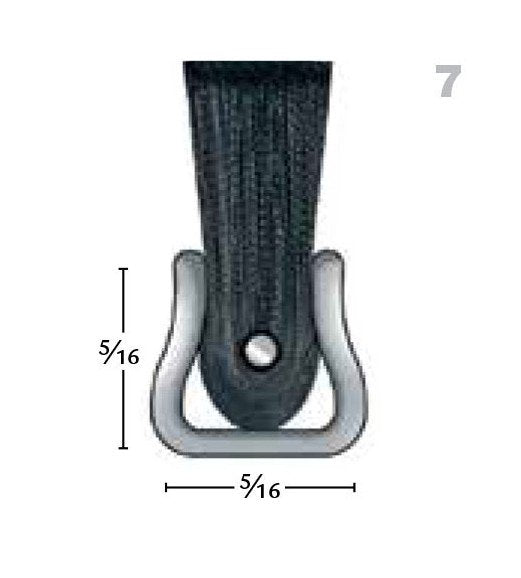

Specifications Backing Size
#7
Specifications Filament Diameter
0.014 in
Specifications Fill Material
Crimped Black Nylon
Specifications Overall Length
96 in
Specifications Overall Trim
2 in
Staple Construction
Stapling provides consistent product quality and reliability. The versatility and economy of stapling makes stapled set cylinder and circular brushes ideal for a wide variety of applications and industries. The staple, as shown in the illustrations at right, is a primary part of the brush. A staple is made either of steel, stainless steel or brass. The type of staple used is predicated by the environment and conditions the brush will be performing under.
Thickness Thickness Galvanized
0.040 in
Thickness Thickness Stainless Steelstainless Steel
0.040 in
