8" T-Handle Aluminum Test Plug with By-Pass - Petersen® 143-7 Series
8" T-Handle Aluminum Test Plug with By-Pass - Petersen® 143-7 Series
SKU:HIG-69a5f8
Durable 8" T-Handle Aluminum Test Plug with By-Pass by Petersen®. Heavy-duty build for reliable sewer air pressure tests. Ideal for concrete, clay, and SDR pipes.
Regular price
$64.99
Regular price
Sale price
$64.99
Unit price
per
Initiate Order
8" T-Handle Aluminum Test Plug with By-Pass - Petersen® 143-7 Series
$64.99
Quantity: 1
Claim Your Seller Account
8" T-Handle Aluminum Test Plug with By-Pass - Petersen® 143-7 Series
$64.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience durability and reliability with the Petersen® 143-7 Series 8" T-Handle Aluminum Test Plug with By-Pass. Designed for long-term applications, this plug features a heavy-duty aluminum body, a chemical-resistant neoprene seal, and a 3/4 in MNPT by-pass. With a nominal diameter of 8 inches, maximum back pressures of 5 psi for air and 40 ft for liquid, this plug is ideal for sewer air pressure tests and sized for concrete, clay, and SDR 26 & 35 pipe. Safety is paramount, follow proper usage guidelines for mechanical plugs.
Product Specifications

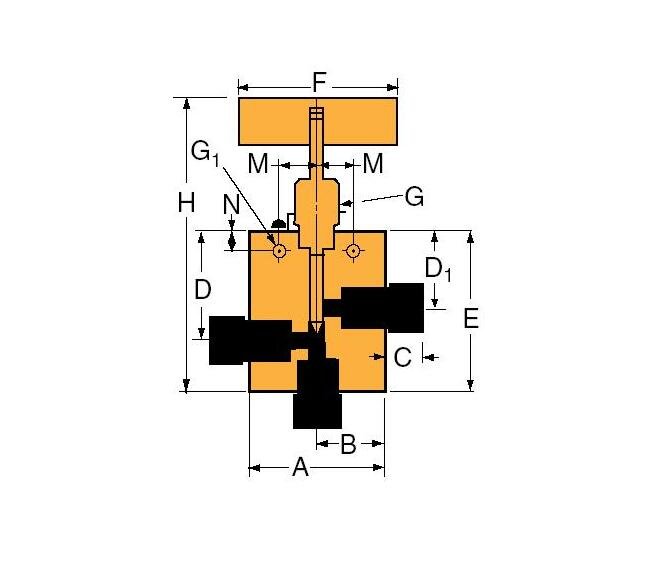

Specifications A Width
2.00 in | 50.80 mm
Specifications Block Thickness
1.00 in | 25.40 mm
Specifications B Length
1.00 in | 25.40 mm
Specifications Connection Type
F250C
Specifications C Length
0.50 in | 12.70 mm
Specifications D1 Height
1.12 in | 28.45 mm
Specifications D Height
1.5 in | 38.1 mm
Specifications E Height
2.12 in | 53.85 mm
Specifications F Length
3.00 in | 76.20 mm
Specifications G1 Bracket Mounting Hole Size
0.22 in | 5.59 mm
Specifications G Packing Gland Mounting Hole Drill Size
1.00 in | 25.40 mm
Specifications H Height
4.74 in | 120.4 mm
Specifications M Length
0.69 in | 17.53 mm
Specifications N Height
0.38 in | 9.65 mm
Specifications Orifice Diameter
0.094 in | 2.39 mm
Specifications Outside Diameter Tube
1/4 in | 6.35 mm
Specifications Pressure Rating At Room Temperature
30000 psi | 2068 bar
Specifications Rated Cv
0.12
Specifications Stem Type
VEE
Specifications Tubing Engagement Depth
0.50 in | 12.7 mm
Specifications Valve Pattern
3-Way / 2 on Pressure
Valve Maintenance 0
Repair Kits:add "R" to the front of valve catalog number for proper repair kit. (Example: R30VM4071)Valve Bodies:Valve bodies are available. Order using the eight (8) digit part number found on the valve drawing or contact your Sales Representative for information.Consult your Autoclave representative for pricing on repair kits and valve bodies. Refer to the Tools, Installation, Operation and Maintenance section for proper maintenance procedures.
Valve Options 0
Extreme TemperaturesStandard Autoclave valves with Teflon packing may be operated from 0°F (-17.8°C) to 450°F (232°C). High temperature packing is available for service from -423°F (-252°C) to 1200°F (649°C) by adding the following suffixes to catalog order number.TG - standard valve with Teflon glass packing to 600°F (316°C).GY - standard valve with graphite braided yarn packing to 800°F (427°C).HT - extended stuffing box valve with graphite braided yarn packing to 1200°F (649°C).B - standard valve with cryogenic trim material and Teflon packing to -100°F (-73°C).LT - extended stuffing box valve with Teflon packing & Cryogenic trim materials to -423°F (-252°C).
