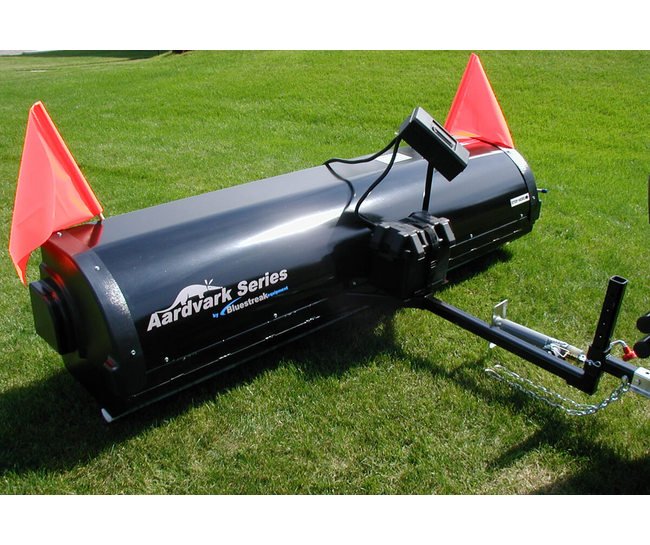

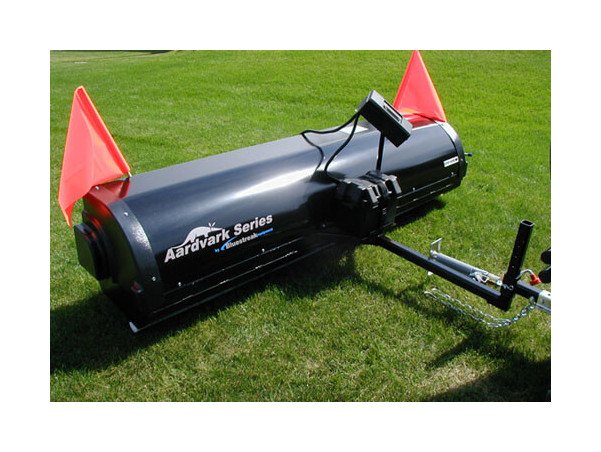

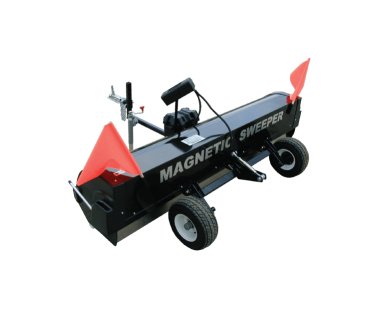

A Tow Behind Magnetic Sweeper with an Automated Clean Off System.The Aardvark™ has a permanently charged magnet in it that weighs close to 600 lbs and with a magnet this big, clean off has to be automated in some way.The Aardvark™ utilizes the simplest most proven and effective method of automating clean off which is to rotate the magnet around a pivot point on one side to rotate the magnet upward to physically separate the magnet from the debris.
Product Specifications
Additional Features

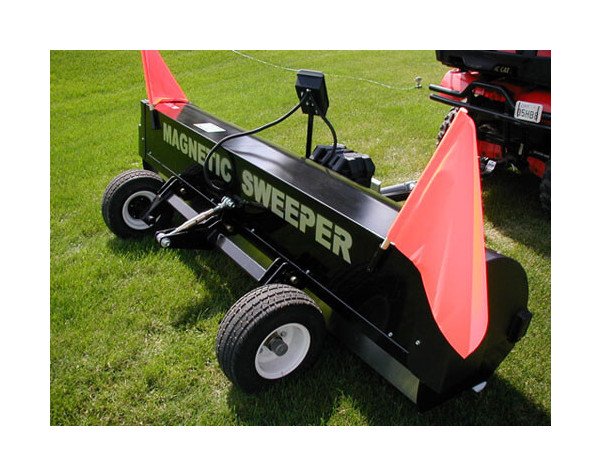

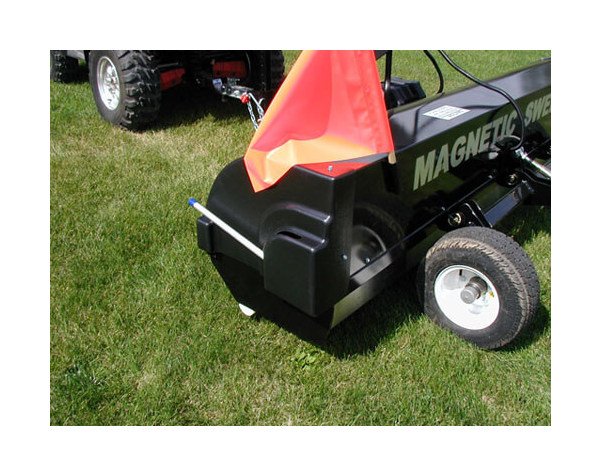

Angled 12 gauge steel bash bar and UHMW skid bar to protect sweeper on rough ground.Safety Flags and "Magnetic Sweeper" signage ensure the equipment is seen to improve safety and reduce accidents.Available with optional Debris Digging Rake (DDR96) accessory to loosen partially embedded debris.Optional Pintle Hook available to replace 2″ ball coupler."Bearing Buddies" on both hubs to ensure continuous lubrication and easy maintenance, just fill with grease occasionally.Eight foot sweeping width to cover lots of ground fast.Maximum Lifting height - 12" (using a two and a half inch nail).Adjustable coupler hitch height from 13" to 23" to match any tow vehicle hitch height to ensure sweeper can be towed level for optimum performance.
Additional Information

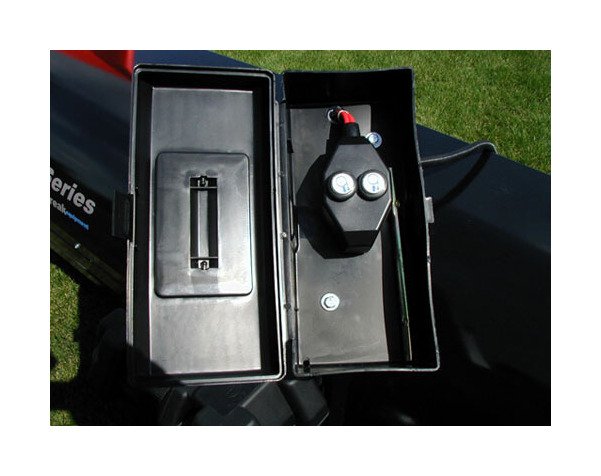

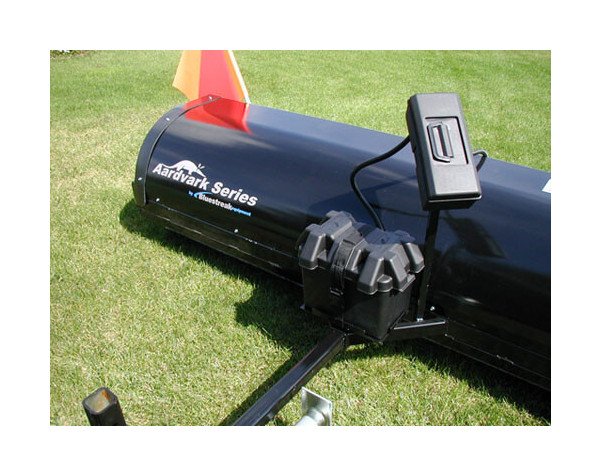

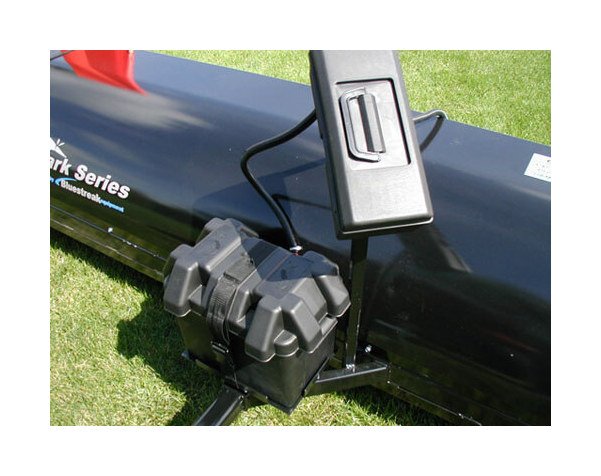

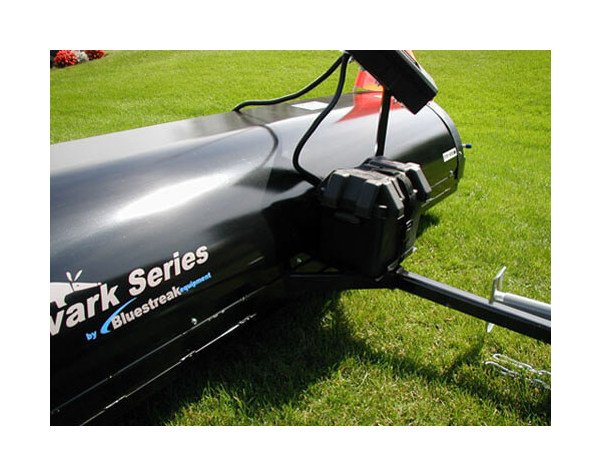

To do this a 4000 lb winch is used. Rotating the magnet around a pivot point on one side takes less effort than lifting the magnet straight up and the 4000 lbs winch does this with no problem. The normal steel winch cable is replaced with an Amsteel blue synthetic winch rope in order to withstand more frequent unwinding and winding. A normal steel winch cable would fatigue and break with a limited number of uses.The winch is designed to be powered by a deep cycle marine battery. A marine battery does not come with the unit but should be used instead of a regular battery because they are designed to be used in these circumstances much like they are used for trolling motors in boats. They can also withstand some bumping and bouncing.
Recommended Industry Applications
Landfill SitesMining SitesConstruction SitesMilitaryLogging Roads
Shipping Dimensions Height
28 in
Shipping Dimensions Length
120 in
Shipping Dimensions Width
40 in
Specifications Cleaning Method
Automatic
Specifications Coupler Height Adjustment

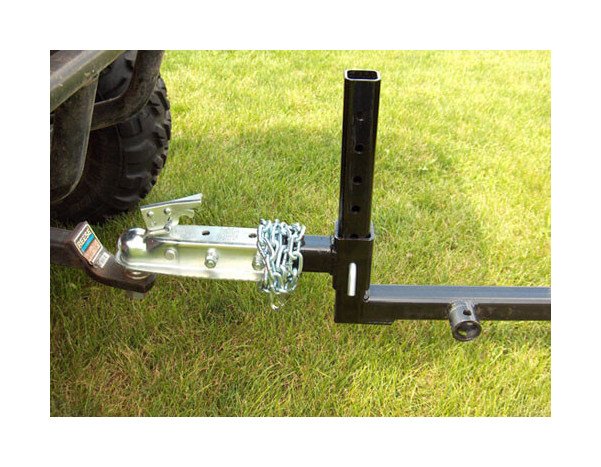

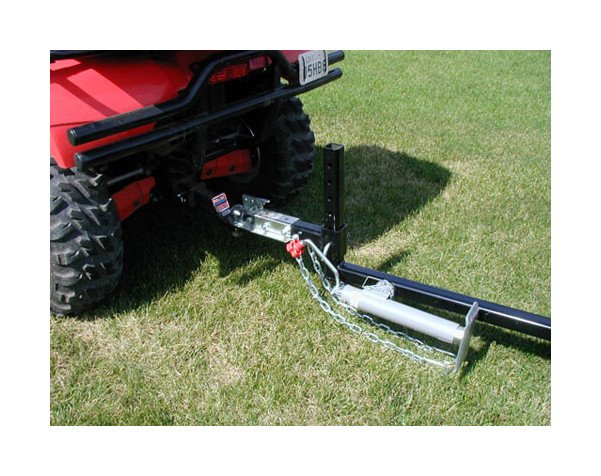

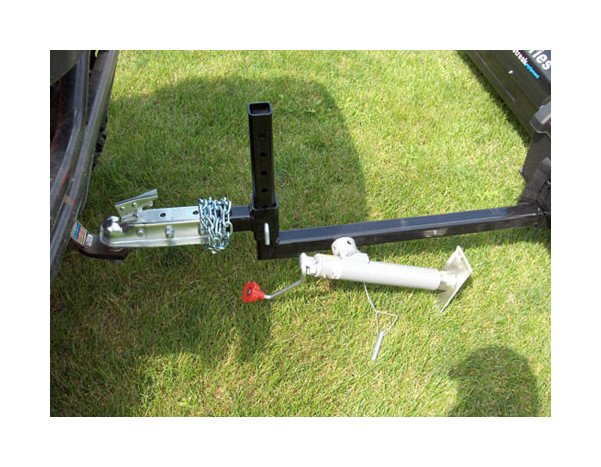

2 in. Ball with 6 Adjustment Coupler Heights of 13 in., 15 in., 17 in., 19 in., 21 in., and 23 in.
Specifications Ground Clearance
1.5 to 6 in
Specifications Height Adjustability
1.5 to 6 in. Continuous Adjustment
Specifications Housing Construction
Steel and WeldedAaluminum
Specifications Magnetic Surface Area
752 in²
Specifications Maintenance
Yes
Specifications Maximum Lifting Height
12 in
Specifications Series
Aardvark™ 96
Specifications Sweeper Width
96 in | 8 ft
Specifications Tongue Weight
260 lb
Specifications Total Shipping Weight
1181 lb
Specifications Total Sweeper Weight
1056 lb
Specifications Wheels

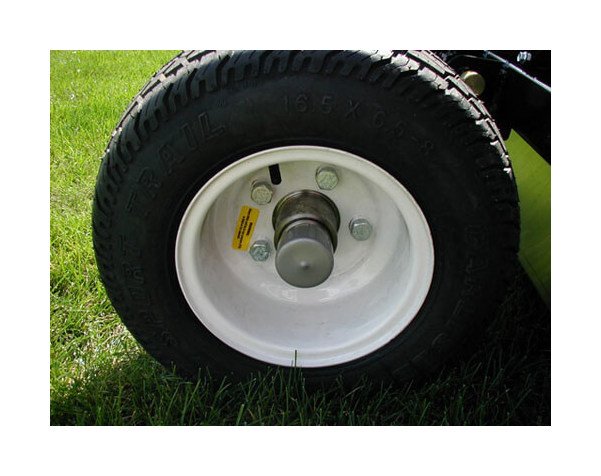

16.5 x 6.5 in. flat proof, hub and spindle
