Acousti-Curtain™ 2 Inch (in) Material Thickness Frame Enclosure

Name: Acousti-Curtain™ 2 Inch (in) Material Thickness Frame Enclosure
Brand: ArtUSA Noise Control Products
SKU: CUR-cbbdba
Price: 49.99 USD
Availability: OutOfStock

SKU:CUR-cbbdba

N/A

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

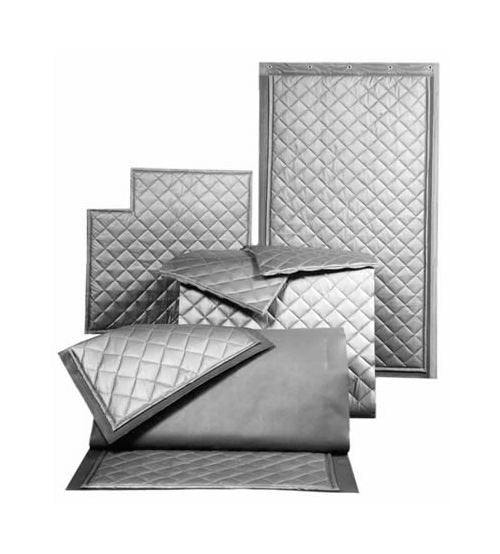

Vinyl faced 1 inch quilted fiberglass on both sides of a 1 lbs PSF reinforced noise barrier septum.

Product Specifications

Features

High actual noise reduction up to 25 dB(A)Custom engineered systems for any applicationRoof Panels and ventilation systems available when requiredQuick access to machinery and equipment for operation and maintenanceFire safe and low smoke emissions per ASTM E-84, Class 1: Per ASTM E-162, ASTM E-662Easily installed, relocated or modifiedView windows for visibilityWashable and steam cleanable component materialsDurable constructions for long service life in severe industrial conditionsCurtain system models are offered in various styles for optimum solution of application's requirementsEconomical alternative to rigid acoustical panel systems

Specifications Flame Spread

Specifications Material Thickness

2 in

Specifications Smoke Density

Specifications Sound Transmission Loss Standard

ASTM E90

Specifications Transmission Loss 1000 Hertz Hz Frequency

40 dB

Specifications Transmission Loss 125 Hertz Hz Frequency

12 dB

Specifications Transmission Loss 2000 Hertz Hz Frequency

44 dB

Specifications Transmission Loss 250 Hertz Hz Frequency

16 dB

Specifications Transmission Loss 4000 Hertz Hz Frequency

43 dB

Specifications Transmission Loss 500 Hertz Hz Frequency

27 dB

Specifications Transmission Loss Sound Transmission Class Stc

29 dB

Specifications Weight

1.5 lb/ft²
