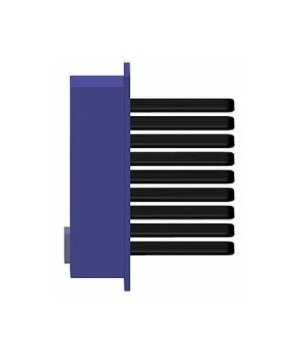

Acrolab Duct Heaters - Incoloy® Immersion Heating Elements

Name: Acrolab Duct Heaters - Incoloy® Immersion Heating Elements
Brand: Acrolab Ltd.
SKU: HEA-4a0814
Price: 299.99 USD
Availability: OutOfStock

SKU:HEA-4a0814

Acrolab Duct Heaters - Reliable heating elements with Incoloy® sheaths for institutional needs.

$299.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Acrolab Duct Heaters offer reliable heating solutions with a vented cover enclosing a NEMA 1 terminal box. These heaters come with optional NEMA 4, NEMA 7, and NEMA 12 ratings for different environmental conditions, ensuring durability and safety. Featuring a heavy-duty frame with steel mounting flange and Incoloy® sheaths, these heaters provide excellent corrosion resistance and insulation reliability. The 3 1/4" mineral insulation in an aluminized steel enclosure minimizes heat loss while keeping electrical wiring cooler, making them ideal for diverse heating applications in institutional settings.

Product Specifications

Features

Heavy duty frame composed 1/4" (6mm) steel mounting flange, corner posts, and stainless steel support plate support the heating elements any position.Single screw quick release "V" clamp holds field replaceable elements. Optional Gas Tight design using compression fittings to attach elements to the flange prevents leakage of ducted gas into terminal enclosure.1/4" (6mm) inside diameter thermowell accessed through 1/8" NPT tapped hole in the flange allows installation of optional Type J or K thermocouple for sensing element temperature. An excellent safeguard for your system.Elements are 0.430 in. (11 mm) diameter and have Incoloy® sheaths for excellent corrosion and scaling resistance at high temperatures. Element hairpin bends are spanked in special dies to re-compact the MGO refractory to eliminate any electrical insulation voids.

Specifications Heating Element Diameter

0.430 in | 11 mm

Specifications Insulation Material

Aluminized Steel

Specifications National Pipe Thread Npt Size

1/8 in

Specifications Optional Element Sheath Materials

6 mm

Specifications Sheath Material

Incoloy®

Specifications Thermowell Inside Diameter

1/4 in
