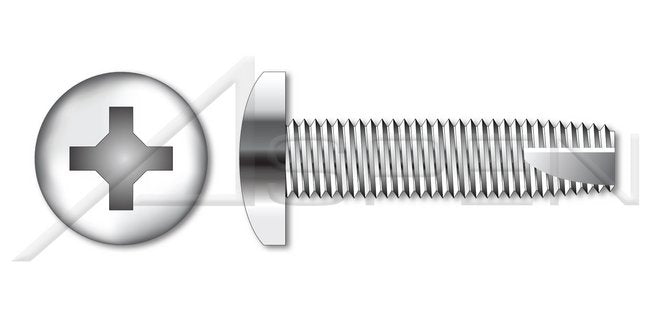

AISI 304 Stainless Steel (18-8) Type "23" Pan Phillips® Drive Thread Cutting Screw

Name: AISI 304 Stainless Steel (18-8) Type "23" Pan Phillips® Drive Thread Cutting Screw
Brand: Aspen Fasteners
SKU: SCR-003035
Price: 49.99 USD
Availability: OutOfStock

SKU:SCR-003035

N/A

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Thread Cutting Screws are a type of self-tapping screw designed to tap its own threads as it penetrates a pre-drilled pilot hole. Manufactured with specialized screw points - referred to as "Types" (Type 1, Type 23, Type 25 and Type F) - designed to physically remove material from the substrate to form the tapped thread path.

Product Specifications

Additional Information

Thread cutting screws are a type of self-tapping screw that cuts threads in existing holes in metal.Type 23 point screws provides maximum thread cutting area and exceptional chip clearing.Type 304 stainless steel is defined as a Chromium-Nickel austenitic alloy.Stainless steel significantly improves resistance to tarnishing or corrosion.

Specifications Coating

Uncoated

Specifications Drive Detail

Phillips® Type H

Specifications Drive Style

Cruciform Recess Drive

Specifications Head Style

Pan Head

Specifications Industry Standards And Specifications

American Society of Mechanical Engineers (ASME B18.6.3)

Specifications Material

Stainless Steel

Specifications Material Grade

American Iron and Steel Institute (AISI) 304 Stainless Steel (18-8)

Specifications Point

Type "23"

Specifications System Of Measurement

Inch

Specifications Thread Direction

Right-Hand Thread

Specifications Thread Length

Full Thread

AISI 304 Stainless Steel (18-8) Type "23" Pan Phillips® Drive Thread Cutting Screw
