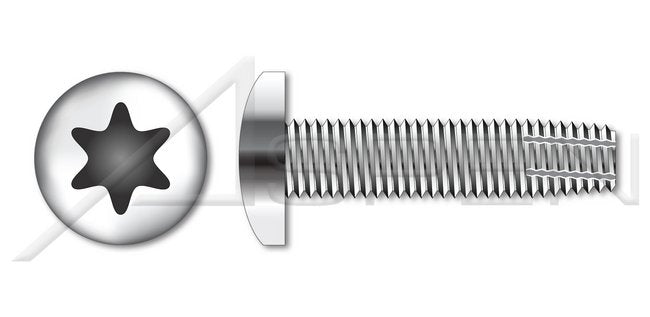

AISI 304 Stainless Steel (18-8) Type "F" Pan 6 Lobe Torx® Drive Thread Cutting Screw

Name: AISI 304 Stainless Steel (18-8) Type "F" Pan 6 Lobe Torx® Drive Thread Cutting Screw
Brand: Aspen Fasteners
SKU: SCR-d76f52
Price: 49.99 USD
Availability: OutOfStock

SKU:SCR-d76f52

N/A

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Thread Cutting Screws are a type of self-tapping screw designed to tap its own threads as it penetrates a pre-drilled pilot hole. Manufactured with specialized screw points - referred to as "Types" (Type 1, Type 23, Type 25 and Type F) - designed to physically remove material from the substrate to form the tapped thread path.

Product Specifications

Additional Information

Thread cutting screws are a type of self-tapping screw that cuts threads in existing holes in metal.Type F point screws have a machine screw thread and a blunt tapered point.Ideal for use with heavy gauge sheet metal, zinc, cast iron and lead die castings.A 6-lobe recess is also known as a hexalobular internal drive.Type 304 stainless steel is defined as a Chromium-Nickel austenitic alloy.Stainless steel significantly improves resistance to tarnishing or corrosion.

Specifications Coating

Uncoated

Specifications Drive Detail

Torx® Generic Alternative

Specifications Drive Style

6 Lobe Drive

Specifications Head Style

Pan Head

Specifications Industry Standards And Specifications

American Society of Mechanical Engineers (ASME B18.6.3) | Society of Automotive Engineers (SAE-J933)

Specifications Material

Stainless Steel

Specifications Material Grade

American Iron and Steel Institute (AISI) 304 Stainless Steel (18-8)

Specifications Point

Type "F"

Specifications System Of Measurement

Inch

Specifications Thread Direction

Right-Hand Thread

Specifications Thread Length

Full Thread

AISI 304 Stainless Steel (18-8) Type "F" Pan 6 Lobe Torx® Drive Thread Cutting Screw
