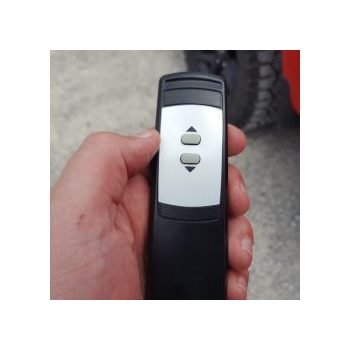

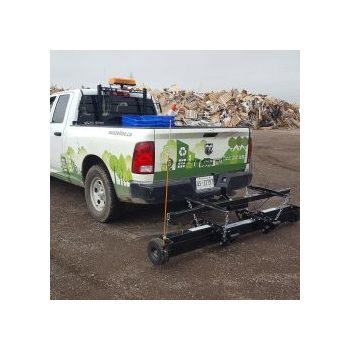

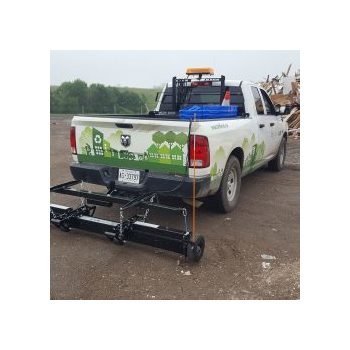

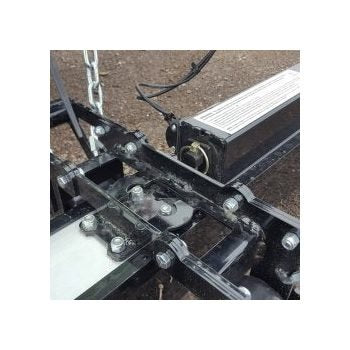

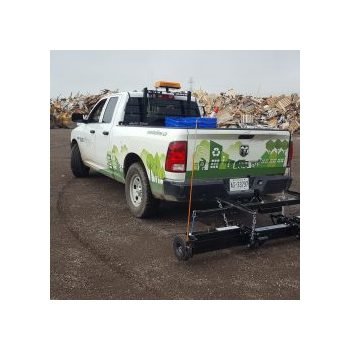

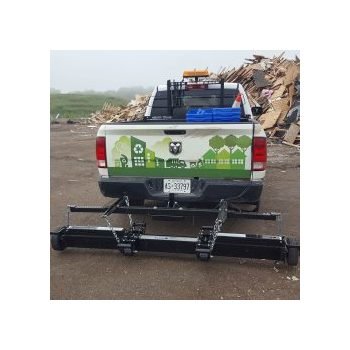

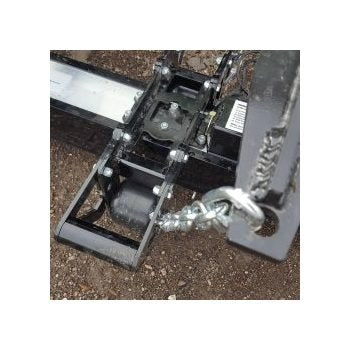

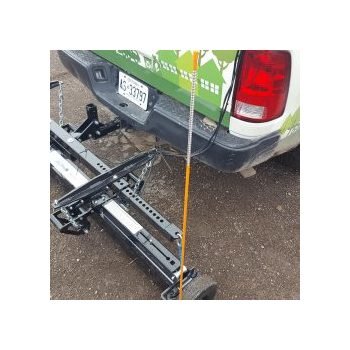

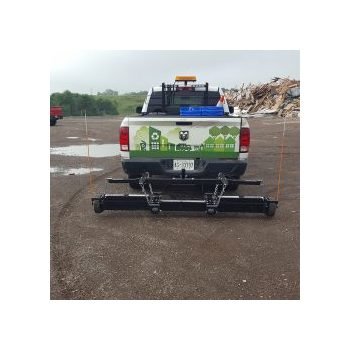

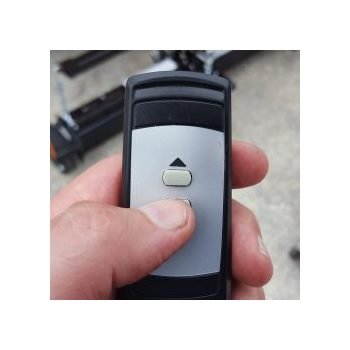

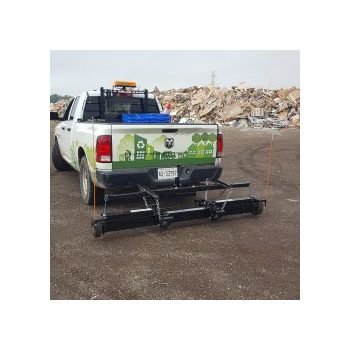

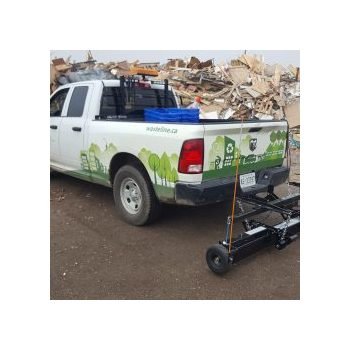

Remote controlled Height Adjustment without leaving the cab of your vehicle.The Alpha™ has outdoor rated IP65 12-volt DC actuators rated at 562 lbs each with 7.5" inches of up and down movement for remote controlled raising and lowering of magnet from raised travelling to lowered sweeping position.The Alpha™ is unique in our line hanging magnets because of its remoted controlled up and down feature. The Alpha™ lets you lower and deploy the magnet for sweeping operations from the cab of your vehicle and then when done sweeping for the moment the operator can raise the magnet for travelling between locations on the road or for entering a service bay with a large lip obstacle or for whatever reason the operator has, the magnet can be lifted simply by pressing the remote control from the cab. The automatic raising and lowering of the magnet is done via 12-volt DC remote controlled electric actuators providing 7.5" inches of up and down movement. The 12-volt DC power is obtained by connecting the supplied cables to your vehicle battery.
Product Specifications
Additional Features

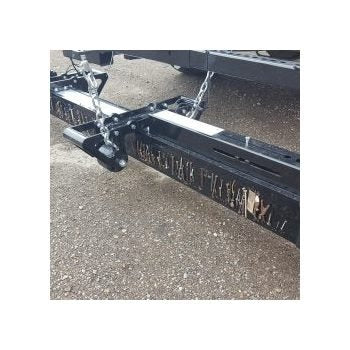

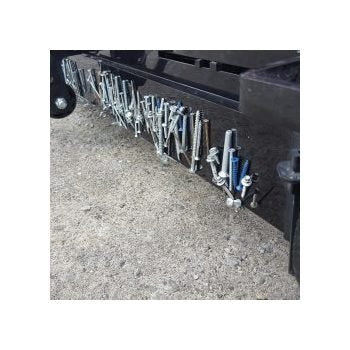

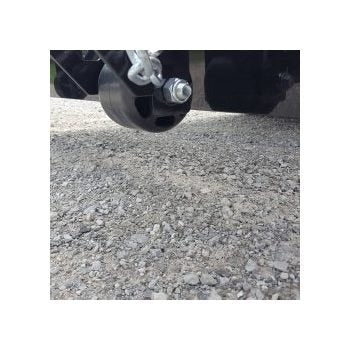

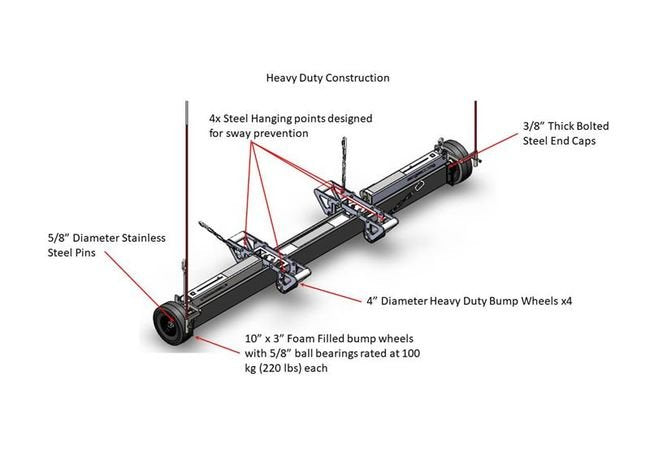

Permanently Charged Grade C8 Magnet.Durable and Protective PVC Quick Clean Off Sleeve.Rugged Durability and Construction.Available in 2 Different Sweeping Widths of 86 and 98 Inches.Wrap Around Feature to Hold onto Debris in Off Road Conditions.Comes With 4 Stabilizing Chains.Flat Proof 10" x 3" Tires with 5/8" Ball Bearings, Each with a 100 kg (220 lb) Rating.Replacement Quick Clean Off Sleeves and all Parts Can be Ordered on this Website if Needed.
Additional Information

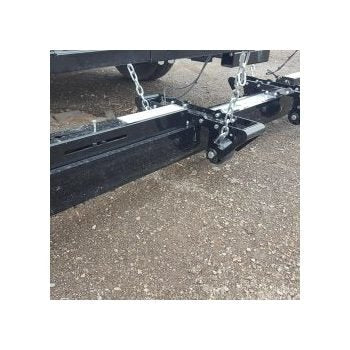

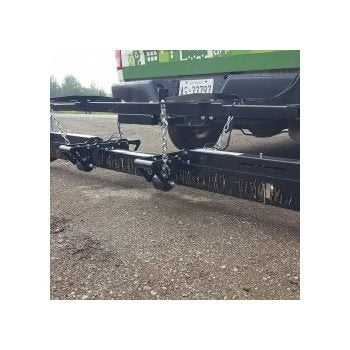

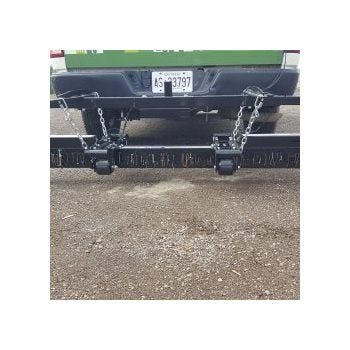

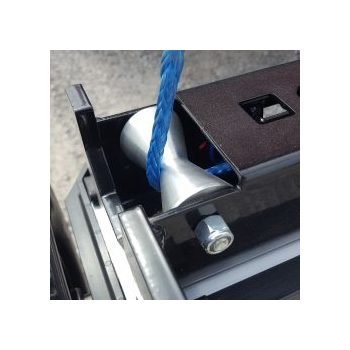

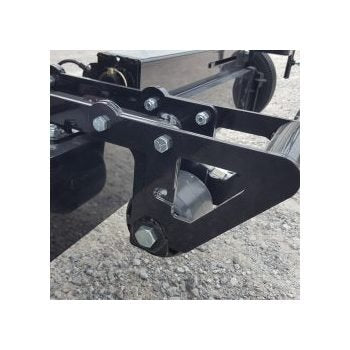

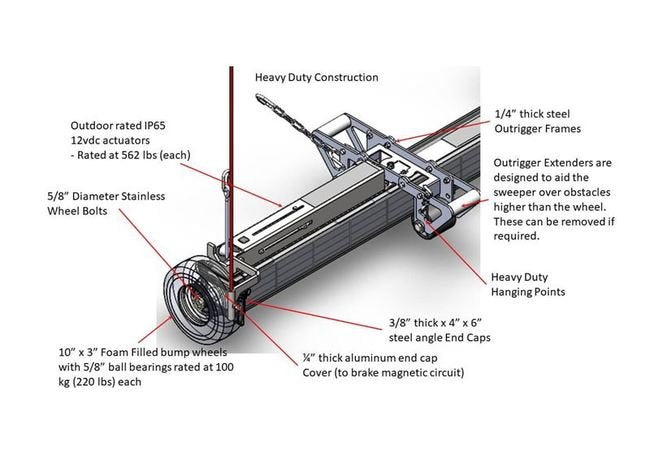

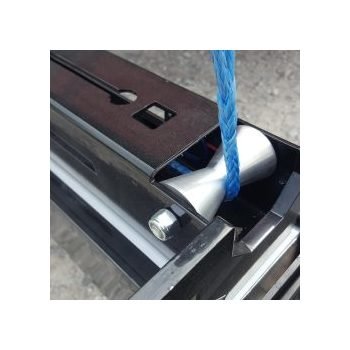

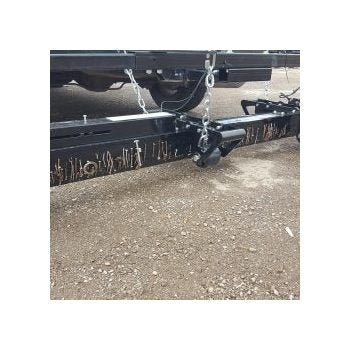

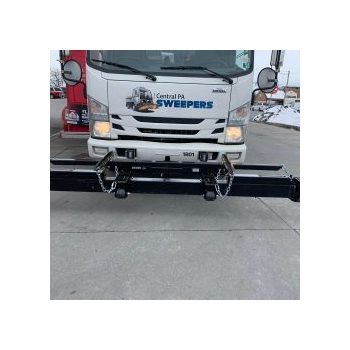

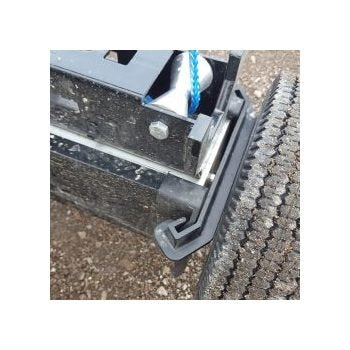

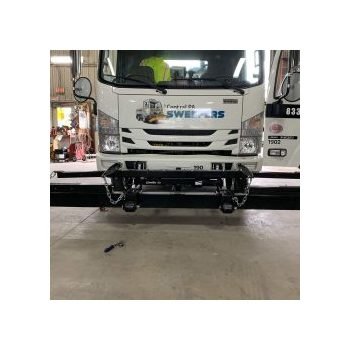

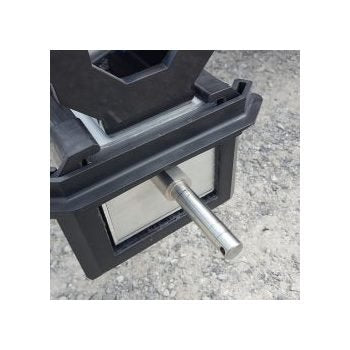

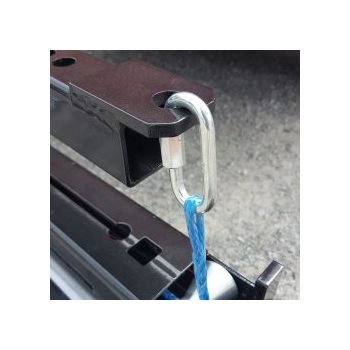

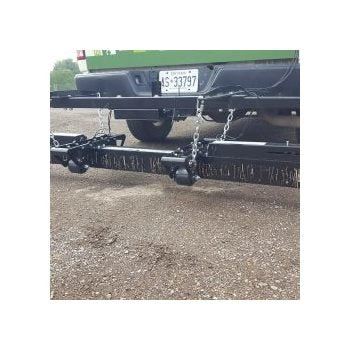

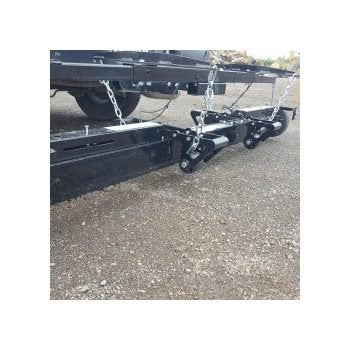

An ample length of cables are provided even if rear mounting of the magnet on a vehicle. Quick disconnections by the magnet unit mean that you can still disconnect the cables from the magnet if you wish to demount the magnet from the vehicle but leave the electrical connections in place for easy and quick mounting later.The Alpha™ is essentially an Aether hanging magnet with the addition of the remote-controlled electric actuators, and therefore the Alpha™ has a combination flat proof bump wheels on each end and its two wheeled outriggers positioned along the length between the wheels. The wheeled outriggers provide extra protection in rough environments that hanging magnetic sweepers with only wheels on the end cannot. Both of these features; wheels and outriggers, make sure the magnet doesn't hit the ground in rough, rutted, pothole filled environments. You can operate the Alpha™ with the peace of mind that the sweeper won’t get damaged.The Alpha™ comes with 4 stabilizing chains and 8 quick clips to mount the Alpha™ as well as 2 blue synthetic winch ropes used with the electric actuators, and it also comes standard with a durable PVC black Quick Clean Off Sleeve to make clean off quick and easy.The Alpha™ magnet has a strong magnetic field with a maximum lifting height of 9 inches using a 2.5" inch nail. (We use a 2-1/2" nail to measure maximum lifting heights of all of our sweepers because it is a standard well know item familiar to customers. Keep in mind the maximum lifting heights will vary depending upon the shape and ferrous content of the items you are trying to pickup)To ensure Alpha™ performance pickup power long term, the Alpha™ utilizes permanently charged grade C8 Ceramic magnets that will never need to be recharged.
Shipping Dimensions Shipping Height
15 in
Shipping Dimensions Shipping Length
109 in
Shipping Dimensions Shipping Width
17 in
Specifications Alpha Series
Alpha™ 86
Specifications Application
Construction sitesLandfillsMining SitesParking LotsHighways and Roads MaintenanceStreet SweepingShipping TerminalsTrucking Terminals
Specifications Cleaning Method
Quick Clean Off Sleeve

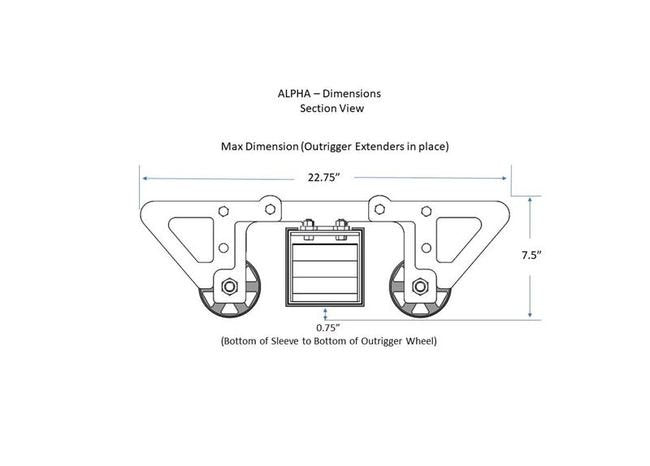

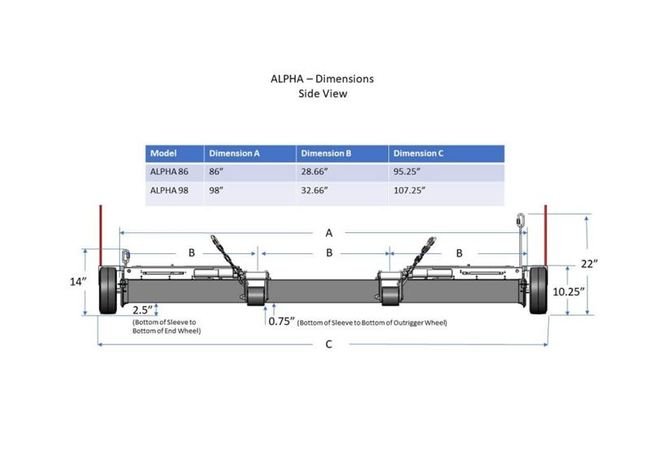

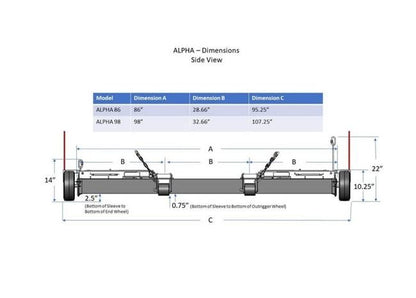

Specifications Dimension A
98 in
Specifications Dimension B
32.66 in
Specifications Dimension C
107.25 in
Specifications Ground Clearance
Adjustable, with a Minimum of 2.5 Inches
Specifications Housing Construction
Aluminum
Specifications Included Accessories
Comes Standard with 4 Stabilizing Chains and Quick Clean Off Sleeve
Specifications Magnet Type
Ceramic 8
Specifications Maximum Lifting Height
9 in
Specifications Sweeper Width
98 in
Specifications Sweeping Height Adjustability
Yes, 2-1/2 in. Minimum, Recommended From 3 to 5 in. Maximum, Remote Controlled Raising and Lowering of Magnet from Raised Travelling to Lowered Sweeping Position
Specifications Total Shipping Weight
394.9 lb
Specifications Total Sweeper Weight
361.4 lb

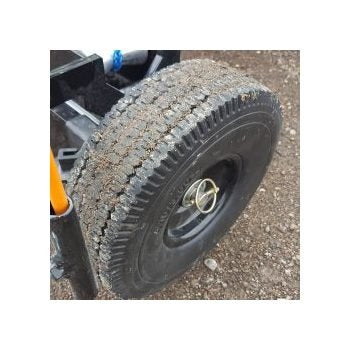

Specifications Wheels
10 x 3 in. Foam Filled Flat Proof Wheels with 5/8 in. Ball Bearings, Each with a 100 kg (220 lb) Rating
