AMETEK® MOCON® OX-TRAN® 2/40 Series Oxygen Permeation Analyzer
$14,999.99
Quantity: 1
Claim Your Seller Account
AMETEK® MOCON® OX-TRAN® 2/40 Series Oxygen Permeation Analyzer
$14,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

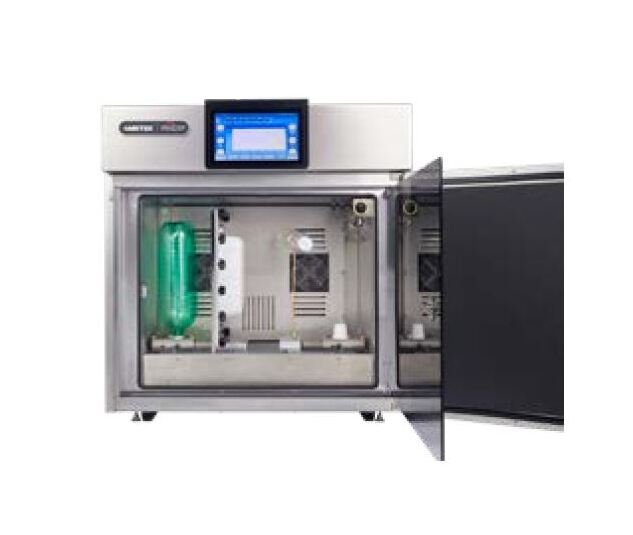

The AMETEK® MOCON® OX-TRAN® 2/40 Series Oxygen Permeation Analyzer is a state-of-the-art instrument designed specifically for accurate and reliable oxygen permeation testing of finished packages. Featuring a large environmental chamber integrated with Oxygen Transmission Rate (OTR) testing capabilities, this analyzer ensures precise test gas conditions and accommodates a wide range of package types. With unique Test Cartridges, it offers an all-in-one solution for package OTR testing, enabling users to achieve absolute precision, optimize productivity, and make informed packaging decisions.
Product Specifications
Additional Information Additional Information
Whole Package Testing - Made EasyThe precisely controlled environmental chamber eliminates the need for cumbersome set-up of independent test gas environments and ensures accurate test results for real-world conditions. The new controlled chamber instrument has four independent test cells allowing multiple analyses to be run at the same time, while the easy to use Package Test Cartridges make mounting and testing of packages simple and repeatable.Simplified Test Set-up and MonitoringThe simple user interface with automated controls makes testing easy with little training. In certain applications, starting a new test may be as simple as a single press of a button. Your operators can now pre-program a variety of tests at different conditions and run them sequentially without operator intervention, resulting in less instrument idle time.Coulox Sensor TechnologyUsing a patented coulometric sensor, the OX-TRAN® provides the most precise and repeatable oxygen permeation data available on the market today. It is the basis for the ASTM standard D3985, requires no calibration, and is the only sensor proven to meet its precision and bias requirements through independent third-party testing.Improve your bottom line and get peace of mind.The OX-TRAN® 2/40 was designed to help maintain the integrity of your package by giving you the capability to test it in real world conditions.This arms you with precise data to select the most appropriate packaging for your product - no over or under packaging, saving costs and reducing package waste.
Application Solutions Application Solutions

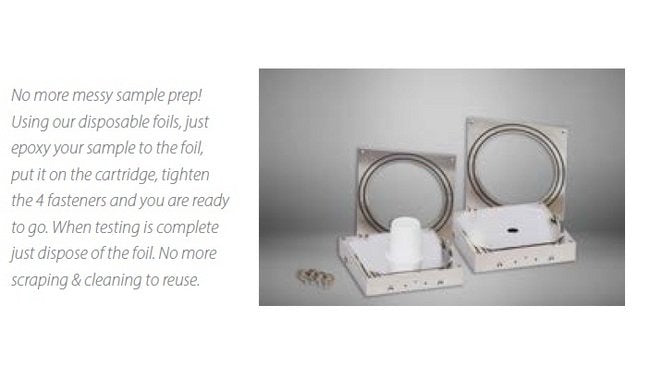

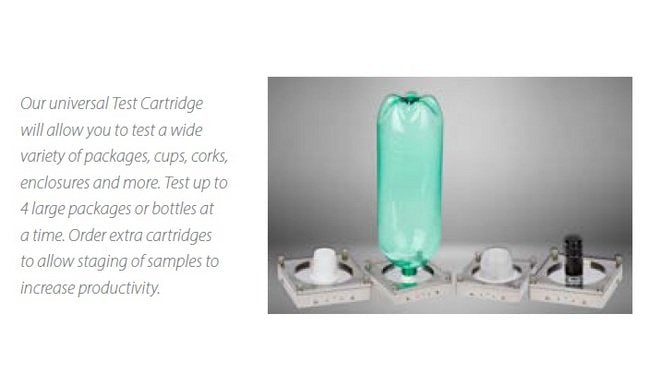

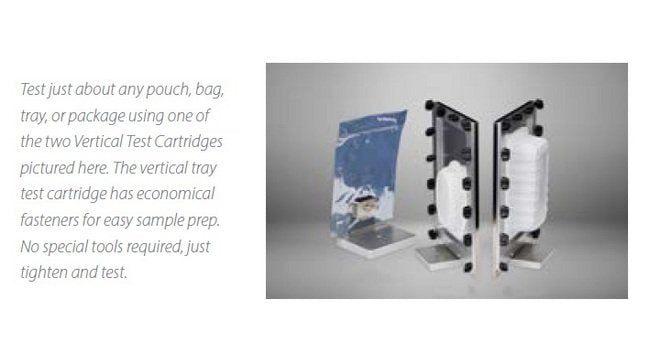

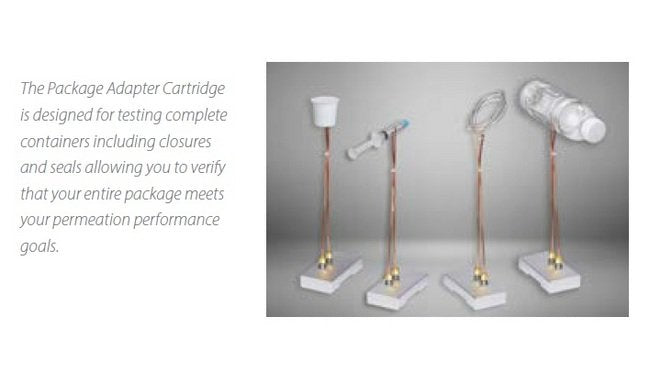

The OX-TRAN® 2/40 is capable of testing a wide range of package types through the use of our innovative Test Cartridges.A variety of package Test Cartridges are available to easily and accurately test: TraysBottlesFlexible containers or pouchesCups, Packs or PodsCaps or CorksFilmsComplete packages or tubing via Package Adapter CartridgePackage Test Cartridges use pneumatic clamp mounting in the chamber for quick and tool-less installation and removal.Low cost, single-use Package Test Foils eliminate the need to heat and scrape the epoxy from reusable plates, while also providing high-confidence mounting with the integrated TruSeal® design that utilizes gas flushing between two (2) seals to prevent ingress into the test area. This eliminates the need to run absolute zero tests on samples, thus saving time. Custom test cartridges and fixtures are available to greater improve test accuracy and reduce setup time. Contact one of our application experts to ask about your custom package application needs.
Connectivity Connectivity
2 Universal Serial Bus (USB) Ports | Ethernet Port | Optional PERM-NET Lite⢠for Remote Monitoring
Dimensions And Weight Exterior Depth
29.75 in | 75.6 cm
Dimensions And Weight Exterior Height
35 in | 88.9 cm
Dimensions And Weight Exterior Width
33 in | 83.8 cm
Dimensions And Weight Interior Depth
12 in | 30.5 cm
Dimensions And Weight Interior Height
17 in | 43.2 cm
Dimensions And Weight Interior Width
25.5 in | 64.8 cm
Dimensions And Weight Volume
3 ft³ | 85 L
Dimensions And Weight Weight
225 lb | 102 kg
Features Features
Absolute PrecisionTemperature and humidity-controlled chamber allows testing in real-world conditions for precise resultsNo sensor calibration requiredConforms to ASTM Test StandardsOptimized ProductivitySave on labor hours with easy set-up and less in-test monitoringRemovable test cartridges, prepare additional samples while testingPerform simultaneous tests with up to 4 large packagesUser FriendlyVarious test cell cartridges available to accommodate a variety of package types and barrier filmsSimplified sample preparationTouch screen interface, with accelerated test options
Specifications Conformance Standards
Canadian Standards Association (CSA) Safety Compliance | European Conformity (CE) | Underwriters Laboratories (UL)
Specifications Industry Standards
American Society for Testing and Materials (ASTM) D3985 Films | American Society for Testing and Materials (ASTM) F1307 packages | American Society for Testing and Materials (ASTM) F1927 Films (with RH) | American Society for Testing and Materials (ASTM) F2622 Films | German Institute for Standardization (DIN) 53380-3 Films | International Organization for Standardization (ISO) 15105-2 | Japanese Industrial Standards (JIS) 7126-B Films
Technical Specifications Minimum Exam Time
60 min
Technical Specifications Repeatability Atmospheric Tested 209 Pe
0.0000025 cm³/(pkg·day)
Technical Specifications Resolution Atmospheric Tested 209 Perce
0.000001 cm³/(pkg·day)
Technical Specifications Test Ranges Atmospheric Tested 209 Perc
0.0000025 to 1 cm³/(pkg·day) | 0.0005 to 200 cm³/(m²·day)
Technical Specifications Test Ranges Software Compensated To 100
0.0000125 to 5 cm³/(pkg·day) | 0.0025 to 1,000 cm³/(m²·day)
Test Conditions Carrier Gas Relative Humidity Rh Testing Range
0 to 90 %
Test Conditions Carrier Gas Relative Humidity Rh Testing Range T
4 %
Test Conditions Chamber Relative Humidity Rh Testing Range
5 to 90 %
Test Conditions Chamber Relative Humidity Rh Testing Range Toler
5 %
Test Conditions Test Temperature Range
10 to 50 ºC
Test Conditions Test Temperature Range Tolerance
0.5 ºC
