AMETEK Permatran-W® 3/34 G Water Vapor Permeation Analyzer
AMETEK Permatran-W® 3/34 G Water Vapor Permeation Analyzer
SKU:PRO-fd3d07
Industry's most trusted water vapor permeation analyzer for precise testing of barrier films & packages.
Regular price
$26,999.00
Regular price
Sale price
$26,999.00
Unit price
per
Initiate Order
AMETEK Permatran-W® 3/34 G Water Vapor Permeation Analyzer
$26,999.00
Quantity: 1
Claim Your Seller Account
AMETEK Permatran-W® 3/34 G Water Vapor Permeation Analyzer
$26,999.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The AMETEK Permatran-W® 3/34 G Water Vapor Permeation Analyzer is the industry's most trusted instrument for testing water vapor transmission rates in barrier films and packages. With a detection range from 0.005 to 100 g/(m²·day), it offers exceptional accuracy and reliability. Featuring patented modulated infrared sensor technology, this analyzer ensures precise and repeatable results, meeting ASTM F1249 and other industry standards. Its advanced control system, including automated flow and temperature control, makes testing easy and efficient for research, development, or production facilities.
Product Specifications
Accessories Accessories
Reduced area cartridgeEdge effect cartridgeBlister testing cartridgePackage testing adapterCustom engineered test cartridgesPermWare⢠software for data collection and remote monitoring
Advanced Control System Advanced Control System

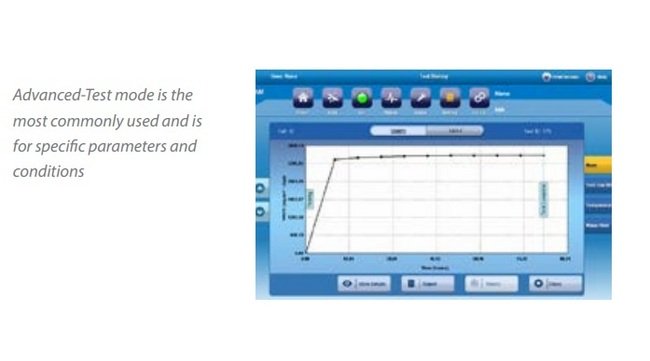

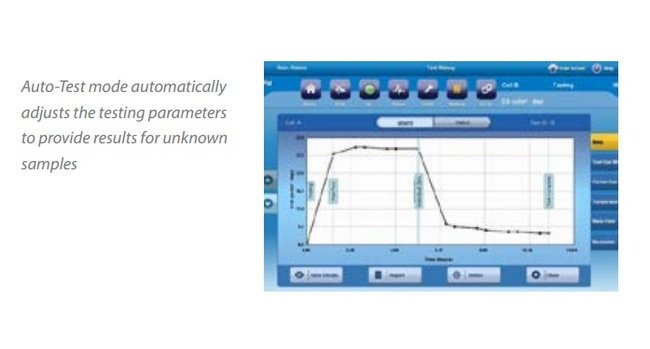

The user friendly WinPerm 2 control system features fully automated testing including temperature, gas flow and RH control. Final test reports are automatically saved and can be set to automatically print and export to permanent storage directories. The analyzer is compatible with PermWareâ¢, your complete permeation laboratory data management system. The test mode options make testing known or unknown samples easy and repeatable. A single button push initiates a fully automated test following pre-set stored parameters, reducing operator variability. The intuitive color touch screen is easy to learn and use while the automated testing provides consistent results and fewer potential errors.
Control Features Control Features

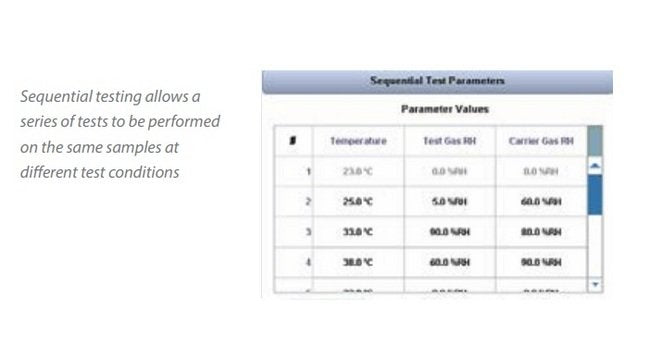

Fully automated flow, temp, & RH control throughout testsAutomatic test method development and recommendationsProgrammable multi-test sequencingBuilt-in sensor protection
Dimensions And Weight Depth
23 in | 58.0 cm
Dimensions And Weight Height
15.5 in | 39.4 cm
Dimensions And Weight Weight
95 lb | 42.1 kg
Dimensions And Weight Width
12 in | 30.4 cm
Extensive Testing Capabilities And Applications Extensive Testin

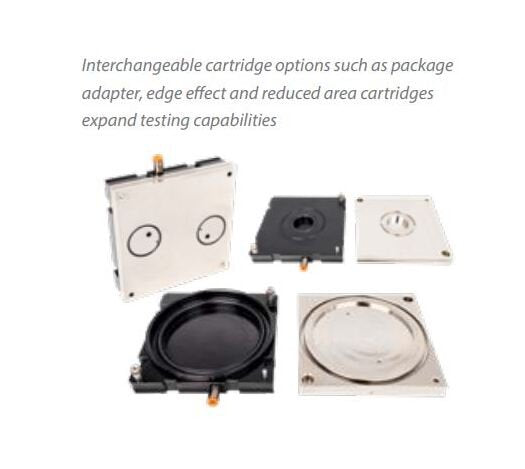

The accuracy and wide testing capability of the 3/34 Series make it an ideal WVTR instrument for both research and development or production support laboratories. It has the capability test flat barriers such as mono-layer to multi-layer films, coated films to coated paper board, and specialty applications such as gels or lotions.With the optional adapter cartridge it can also test additional applications such as complete or partial packages, flexible or rigid containers, bottles and/or closures, and seals in the form of O-rings or gaskets.The interchangeable cartridges also work with other Next Generation AMETEK® MOCON® permeation analyzers. These purpose-built cartridges increase accuracy, extend the range, or make it possible to test unique or difficult samples.
Industry Standard In Water Vapor Permeation Testing Industry Sta
The Permatran-W® 3/34 Series features our exclusive test cell drawer design with two horizontal removable easy- to-load cartridges improve test repeatability. A single button opens and closes the drawers, and the cartridge is automatically clamped in place with consistent and even force on any sample thickness. This approach provides greater test repeatability than manual or cam clamping methods. All test cartridges incorporate AMETEK® mocon®'s exclusive TruSeal® design that utilizes two seals and flushes gas between them to prevent ambient ingress into the test area. This reduces background levels, improves repeatability, and reduces the need to run individual zero.
Modulated Infrared Ir Sensor Modulated Infrared Ir Sensor
Using a patented modulated infrared (IR) technology, this sensor provides accurate and repeatable results. It has the longest life of any WVTR sensor on the market, and the only modulated IR sensor system to meet the ASTM F1249 standard.
Modulated Infrared Ir Sensor Trusted Results Modulated Infrared
Short exam times reduce overall test time to increase throughputLongest life water vapor permeation modulated IR sensorAccurate and repeatable resultsMost trusted modulated IR sensor that fully complies with ASTM F1249
Performance Specifications Carrier Gas
Nitrogen (99.7% N2 or better)
Performance Specifications Controlled Relative Humidity Rh Testi
3
Performance Specifications Maximum Film Thickness
0 to 120 mil | 0 to 3 mm
Performance Specifications Test Temperature Range
10 to 40 ºC
Performance Specifications Test Temperature Range Tolerance
0.2 ºC
Removable Cartridges Removable Cartridges
Easy sample prep on the benchtopOne button release and loadingPneumatic clamping provides more repeatable resultsInterchangeable cartridge options
Specifications Barrier Level
Low to High
Specifications Conformance Standards
Canadian Standards Association (CSA) Safety Compliance | European Conformity (CE) | Underwriters Laboratories (UL)
Specifications Connectivity
2 Universal Serial Bus (USB) Ports | Ethernet Port | Optional PERM-NET Lite⢠for Remote Monitoring
Specifications Controlled Relative Humidity Rh Testing Range
50 to 90 % | 100 %
Specifications Detection Range
0.005 to 100 g/(m²·day)
Specifications Industry Standards
American Society for Testing and Materials (ASTM) F-1249 | International Organization for Standardization (ISO) 15106-2 | Japanese Industrial Standards (JIS) K7129 | National Standard (Recommended) (GB/T) 26253-2010 | National Standard (Recommended) (GB/T) 31355-2014 | Technical Association of the Pulp and Paper Industry (TAPPI) T557
Technical Specifications Repeatability
0.005 g/(m²·day) | 2 %
Technical Specifications Resolution
0.0001 g/(m²·day)
Technical Specifications Test Range For Normal Model 50 Cm
0.005 to 100 g/(m²·day) | 0.0003 to 6.45 g/(100 m²·day) | 0.000025 to 0.5 g/(pkg·day)
Technical Specifications Test Range For Reduced Area Cartridge 5
0.044 to 890 g/(m²·day) | 0.0027 to 57.2 g/(100 m²·day)
Touchscreen Interface Touchscreen Interface
Intuitive automated operation requires less trainingBuilt in multi-level user management and data securityEvent log & trouble shooting guideSave on valuable lab space by eliminating need for PC
Truseal Truseal
Gas flushing of sample mounting seal protects chamber integrityLowers background levels reducing need to run individual zeroShortened testing time increases throughputMore repeatable results
Warranty Warranty
Full 100% parts and workmanship warranty for 12 monthsExclusive 4-year warranty on the modulated IR sensor
