Anaconda SEALTITE® Type CNP - Non-Metallic Liquid-Tight Flexible Conduit

Name: Anaconda SEALTITE® Type CNP - Non-Metallic Liquid-Tight Flexible Conduit
Brand: Anamet Electrical, Inc.
SKU: LIQ-f00e84
Price: 199.99 USD
Availability: OutOfStock

SKU:LIQ-f00e84

Anaconda SEALTITE® Type CNP Non-Metallic Liquid-Tight Flexible Conduit - UL Listed, CSA Certified, Temperature Range -4ºF to +140ºF.

$199.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

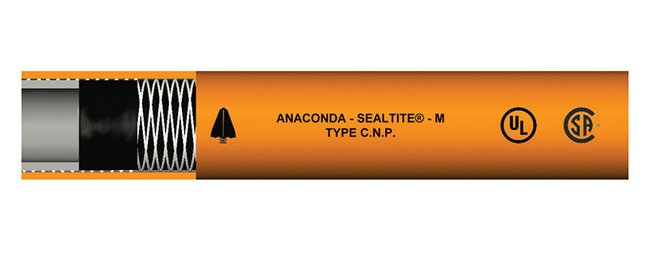

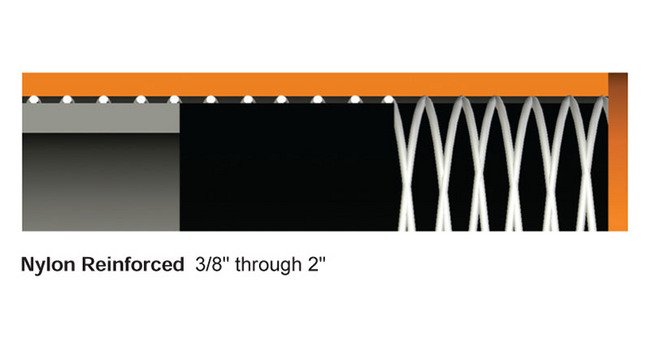

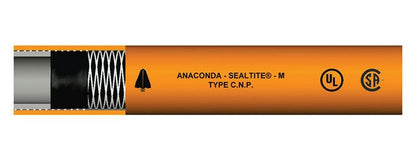

The Anaconda SEALTITE® Type CNP Non-Metallic Liquid-Tight Flexible Conduit is engineered for superior performance in demanding environments. With a smooth inner thermoplastic PVC core, oil and sunlight-resistant PVC outer cover, and nylon reinforcing layer, this conduit ensures a liquid-tight raceway for wiring. UL listed and CSA certified as a Type 'A' non-metallic conduit, it operates flawlessly in temperatures ranging from -4ºF to +140ºF (-20ºC to +60ºC). Easy to install with standard connectors, crush-resistant, and compliant with key industry standards, this conduit is ideal for applications requiring durability, flexibility, and proven reliability.

Product Specifications

Application 0

Where Abrasion or Physical Abuse are Factors, Constant Flexing or MovementTemperature Range: -4ºF to +140ºF (-20ºC to +60ºC)

Installation 0

Conduit used with standard connectors for non-metallic conduit Type A for easy installation. IP 67 Rated when installed with approved connectors.Approved for both exposed and concealed locations. Rated for temperature ranges of -4ºF to +140ºF (-20ºCto +60ºC).Complies with UL Standard 1660 Type A conduit File No. E-75863; CSA C22.2 File No. LL15257; and NEC Article 356.Easy to install and cuts easily.Manufactured in a full range of trade sizes from 3/8" through 2".Flexible, but tough; crush, abrasion and strain resistant. Where abrasion, physical abuse or constant flexing are a factor.

Nec Articles 0

Article 250.102 Equipment Bonding JumpersArticle 250.134 (B) Equipment GroundingArticle 300.22 (D) Information Technology EquipmentArticle 356 Liquid-Tight Flexible Nonmetallic Conduit (LFNC-A)Article 501.10 (B) (2) Class I Div. 2 Article 502.10 (A) (2) and (B) (2) Class II Div. 1 & 2Article 503.10 (A) (3) and (B) Class III Div. 1 & 2Article 620.21 Elevator Wiring MethodsArticle 645.5 (E) (2) Under Raised Floors

Specifications Approx Inside Bend Radius

6.0 in | 152.4 mm

Specifications Approx Weight Per 100 Ft

43 lbs | 19.5 kg

Specifications Color

Orange

Specifications Core Material

Polyvinyl Chloride (PVC)

Specifications Cross Reference

6504-45-00 | 87304 | LFNC-A | LNM-P 13

Specifications Electrical Trade Size

1 in | 27 mm

Specifications Industry Certifications

UL Listed & CSA Certified

Specifications Ingress Protection Ip Rating

Ingress Protection (IP) 66/67

Specifications Inside Diameter

1.030 to 1.055 in | 26.162 to 26.797 mm

Specifications Jacket Benefits

Liquid Tight | Oil Resistant

Specifications Jacket Material

Polyvinyl Chloride (PVC)

Specifications Length

300 ft | 91.44 m

Specifications Note

Colors available on request.

Specifications Optional Colors

Gray

Specifications Outside Diameter

1.415 to 1.440 in | 35.941 to 36.576 mm

Specifications Packaging

Reels

Specifications Type

CNP
