Anaconda SEALTITE® Type MTC Liquid-Tight Flexible Metal Conduit
Anaconda SEALTITE® Type MTC Liquid-Tight Flexible Metal Conduit
SKU:LIQ-6a0f5e
Anaconda SEALTITE® Type MTC offers durable, liquid-tight wiring protection for machine centers and robotics. IP 67 rated with PVC jacket.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
Anaconda SEALTITE® Type MTC Liquid-Tight Flexible Metal Conduit
$129.99
Quantity: 1
Claim Your Seller Account
Anaconda SEALTITE® Type MTC Liquid-Tight Flexible Metal Conduit
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

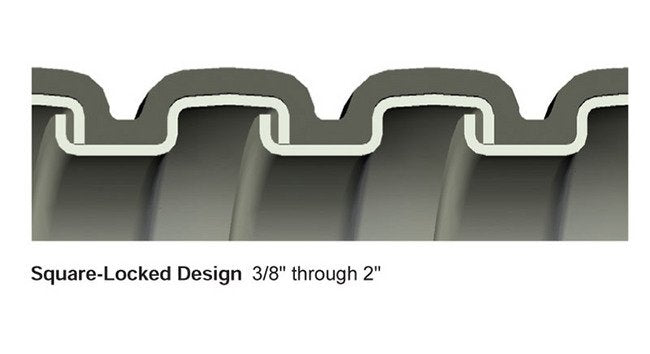

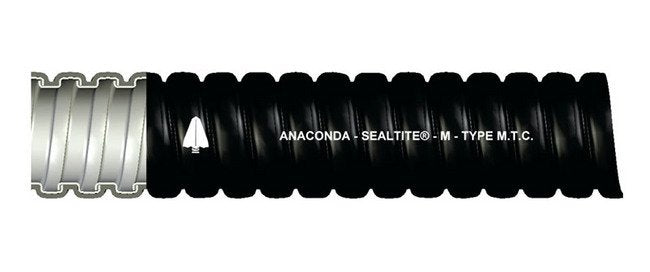

The Anaconda SEALTITE® Type MTC Liquid-Tight Flexible Metal Conduit is engineered for superior wiring protection in machine centers and robotics applications. Featuring a thermoplastic PVC jacket, this conduit provides a flexible, liquid-tight raceway for electrical conductors. Constructed with continuously interlocked hot-dipped zinc galvanized steel core and a sunlight-resistant PVC outer jacket, it ensures durability and reliability. Approved for use in various trade sizes, it offers a smooth appearing jacket ideal for exposed installations and an IP 67 rating when installed with the correct connectors.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Application 0
Extra Flexible. For Use in Machine Centers and RoboticsTemperature Range: -4°F to +140°F (-20°C to +60°C)
Installation 0
Conduit used with standard liquid-tight connector for easy installation. IP 67 Rated when installed with approved connectors.Delivers superior wiring protection where agency approvals are not required.Manufactured in a full range of trade sizes from 3/8" through 2".Smooth appearing jacket for exposed applications. Rated for temperature range of -4ºF to +140ºF (-20ºC to +60ºC).Provides liquid-tight raceway for electrical conductors.
Specifications Approx Inside Bend Radius
4.0 in | 101.6 mm
Specifications Approx Weight Per 100 Ft
70 lbs | 31.75 kg
Specifications Color
BLACK
Specifications Core Material
Galvanized Steel
Specifications Cross Reference
89252 | MTLT | MTLT-1-1/2 | VJC-15
Specifications Electrical Trade Size
1-1/2 in | 41 mm
Specifications Industry Certifications
RoHS WEEE
Specifications Ingress Protection Ip Rating
Ingress Protection (IP) 66/67
Specifications Inside Diameter
1.570 to 1.595 in | 39.878 to 40.513 mm
Specifications Jacket Benefits
Liquid Tight
Specifications Jacket Material
Polyvinyl Chloride (PVC)
Specifications Length
50 ft | 15.24 m
Specifications Outside Diameter
1.830 to 1.860 in | 46.482 to 47.244 mm
Specifications Packaging
Standard Carton
Specifications Type
MTC
