Anamet SHIELDTITE® LFMC - EMI/EMP High Level Shielding Conduit
Anamet SHIELDTITE® LFMC - EMI/EMP High Level Shielding Conduit
SKU:LIQ-418558
Anamet SHIELDTITE® LFMC - Superior EMI/EMP Shielding Solution with Wide Temperature Range & Custom Length Options
Regular price
$139.99
Regular price
Sale price
$139.99
Unit price
per
Initiate Order
Anamet SHIELDTITE® LFMC - EMI/EMP High Level Shielding Conduit
$139.99
Quantity: 1
Claim Your Seller Account
Anamet SHIELDTITE® LFMC - EMI/EMP High Level Shielding Conduit
$139.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

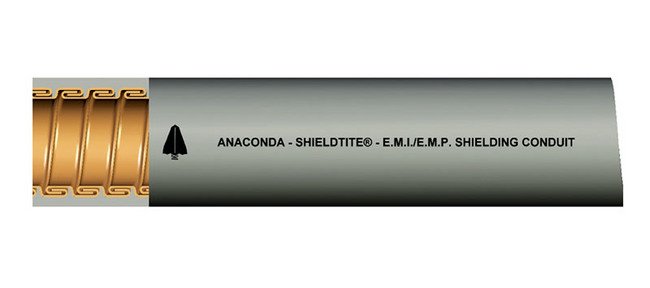

The Anamet SHIELDTITE® Liquid-Tight Flexible Metal Conduit (LFMC) is a premium grade conduit meticulously designed for high-level EMI/EMP shielding needs. With a Thermoplastic PVC jacket and a bronze core construction, this conduit provides superior shielding effectiveness meeting Mil-STD-1310D standards. Operating within -51ºF to +221ºF range, it safeguards against RFI and EMI interference. Smooth interior surface, custom length options, and a wide size range from 3/8" - 4" make it a versatile solution for various applications.
Product Specifications
Application 0
For High Level RFI and EMI ShieldingTemperature Range: -51ºF to +221ºF (-46ºC to +105ºC)
Installation 0
Conduit used with standard liquid-tight connector for easy installation. IP 67 Rated when installed with approved connectors.Meets Mil-STD-1310D for EMI and EMP shielding.Smooth interior surface protects sensitive conductors from harm.Provides shielding effectiveness of 81 - 119 Db at 1 Megahertz to 1 Gigahertz.Rated for temperature range from -51ºF to + 221ºF (-46ºC to +105ºC).Manufactured in a full range of sizes from 3/8" through 4".Available in custom-cut lengths.
Specifications Approx Inside Bend Radius
17 in | 431.8 mm
Specifications Approx Weight Per 100 Ft
298 lbs | 135.17 kg
Specifications Color
GRAY
Specifications Core Material
Bronze
Specifications Cross Reference
78892 | EMS-19
Specifications Electrical Trade Size
4 in | 103 mm
Specifications Industry Certifications
RoHS WEEE
Specifications Ingress Protection Ip Rating
Ingress Protection (IP) 66/67
Specifications Inside Diameter
4.000 to 4.040 in | 101.600 to 102.616 mm
Specifications Jacket Benefits
Liquid Tight
Specifications Jacket Material
Polyvinyl Chloride (PVC)
Specifications Length
Custom
Specifications Note
Available in Random Lengths
Specifications Outside Diameter
4.460 to 4.500 in | 113.284 to 114.300 mm
Specifications Packaging
Contact Anamet
Specifications Type
SHIELDTITE®
