APM Hexseal® 1113/66 Standard Rocker Boot

Name: APM Hexseal® 1113/66 Standard Rocker Boot
Brand: APM Hexseal
SKU: APM-ea8144
Price: 49.99 USD
Availability: OutOfStock

SKU:APM-ea8144

N/A

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

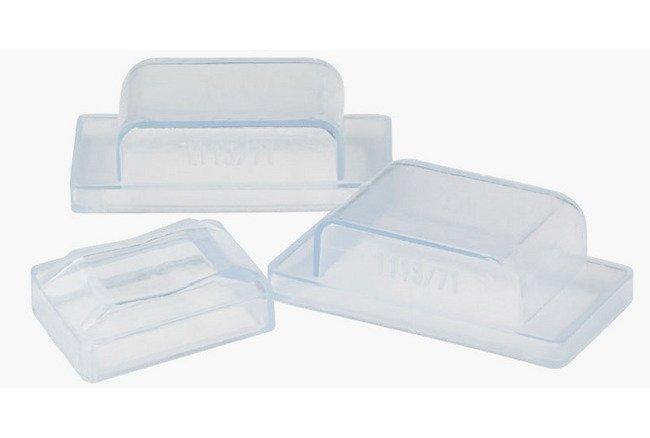

Unlike traditional toggle, pushbutton and rotary switches, rocker switches do not utilize a round threaded mounting bushing, and therefore a Rocker Boot does not include a threaded mounting nut. In fact, most of APM Hexseal®’s Rocker Boots do not include an insert or frame of any kind. The majority of our Rocker Boots are designed to install on the switch prior to the switch installation. Much like our Lever-Actuated Circuit Breaker Boots, APM Hexseal®'s Rocker Boots are often molded from transparent silicone RUBRGLAS™ which allows for easy viewing of the switch position.

Product Specifications

Additional Information

Much like our Circuit Breaker Boots, APM Hexseal®'s Rocker Boots are often molded from transparent silicone RUBRGLAS™ which makes for easy viewing of the switch position. The majority of our Rocker Boots do not include an insert or frame, and are designed to install on the switch prior to the switch installation.APM Hexseal®'s UL and ULC Recognized Components conform to UL Standard 50. Contact us for a complete list of our Recognized Components and ratings.

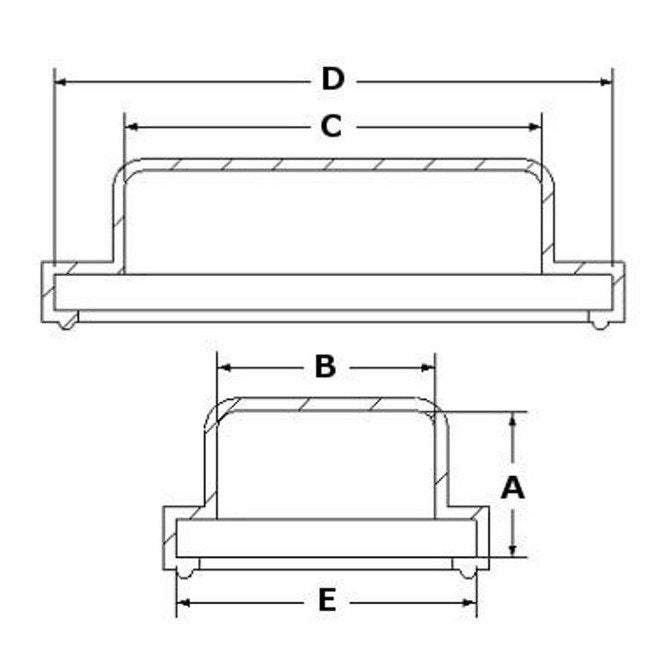

Dimensions Height A

0.228 in | 5.79 mm

Dimensions Length 1 C

0.531 in | 13.49 mm

Dimensions Length 2 D

0.750 in | 19.05 mm

Dimensions Width 1 B

0.348 in | 8.84 mm

Dimensions Width 2 E

0.531 in | 13.49 mm

Material Specifications Elastomer

APM Hexseal® RUBRGLAS™ (Transparent Silicone) Conforms to A-A-59588 | Class 3A | GR50 (Durometer Options Available.)

Material Specifications Enclosure Protection

International Electrotechnical Commission (IEC) Ingress Protection (IP55)

Material Specifications Resistant To

Material Specifications Shelf Life

Excess of 25 Years

Material Specifications Temperature Range

-103 to 400 ºF | -75 to 204 ºC

Note

Proudly manufacturing in the USA for 70 years.Please contact us directly for additional parts and alternative size options.

Specifications Applications

Rocker Switch

Specifications Compatible Switches Partial List

Curling 611/621-Series

Specifications Industry Standards

Underwriters Laboratories (UL) | Underwriters Laboratories of Canada (ULC) | Registration, Evaluation, Authorization, and Restriction of Chemicals (REACH) | Restriction of Hazardous Substances (RoHS) | Defense Federal Acquisition Regulation Supplement (DFARS) Compliant | International Organization for Standardization (ISO 9001:2008) Registered
