APM Hexseal® Seelnut® 21/64 Inch (in) Maximum Head Height (D) Standard High-Pressure Self-Sealing Machine Nut
APM Hexseal® Seelnut® 21/64 Inch (in) Maximum Head Height (D) Standard High-Pressure Self-Sealing Machine Nut
SKU:APM-e22312
N/A
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
APM Hexseal® Seelnut® 21/64 Inch (in) Maximum Head Height (D) Standard High-Pressure Self-Sealing Machine Nut
$49.99
Quantity: 1
Claim Your Seller Account
APM Hexseal® Seelnut® 21/64 Inch (in) Maximum Head Height (D) Standard High-Pressure Self-Sealing Machine Nut
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

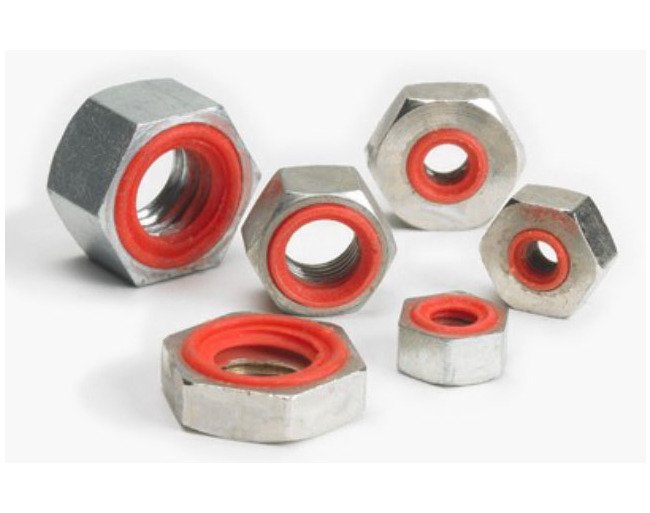

One of APM Hexseal®'s earliest innovations was a self-sealing hexagonal nut, or Seelnut®.Seelnut®'s install just like conventional nuts, and are designed for use with ordinary screws, bolts and studs, making them a quick and easy sealing option for all sorts of applications, especially where there is a need to withstand high internal or external pressures.Our Seelnut®s are made from high quality rubber, molded into a specially shaped cavity in the nut itself. With threads molded directly into the rubber, these self-sealing nuts form a positive seal along the threaded section of the Seelnut®, as well as with the contact surface, removing the need for gaskets, sealing compounds or extra surface preparation. The single piece design makes for a more consistent and reliable seal, resulting in a significant savings of time and expense, and contributing to overall performance efficiency.APM Hexseal®'s Seelnut®s are also reusable, meaning that they can be easily removed and reapplied, reestablishing the same reliable seal when torqued.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Information

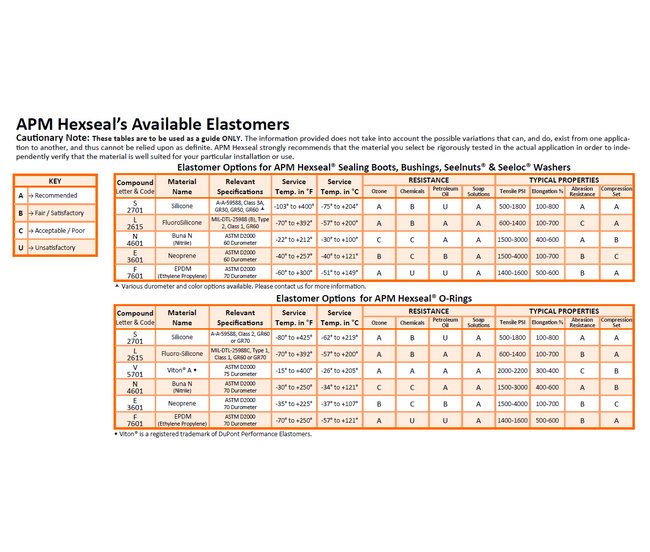

Our Seelnut® are available in all standard thread sizes as well as a variety of different elastomers to suit your application needs. For applications where excessive vibration is an issue, Seelnut® can be supplied with self-locking pellets.APM Hexseal®'s UL and ULC Recognized Components conform to UL Standard 50. Contact us for a complete list of our Recognized Components and ratings.
Material Specifications Elastomer
GR60 | Red (Alternative Elastomers are Available by Special Order.) | Silicone Conforms to A-A-59588 | Class 3A
Material Specifications Enclosure Protection
International Electrotechnical Commission (IEC) Ingress Protection (IP66) | Ingress Protection (IP68) (A dual IP code rating indicates that both ratings apply.)
Material Specifications Materials
Low Carbon Steel with Zinc-Chromate Plating (Standard Jam Nut material is Brass with Nickel Plating.)
Material Specifications Pressure Range
0 to 20,000 psig
Material Specifications Resistant To
Dust | Fungus | Lubricating Oils | Most Acids | Ozone | Salt Spray | Splash | Sunlight | Weather
Material Specifications Shelf Life
Excess of 25 Years
Material Specifications System Of Measurement
Imperial
Material Specifications Temperature Range
-103 to 400 ºF | -75 to 204 ºC
Note
Proudly manufacturing in the USA for 70 years.
Specifications Class
2B

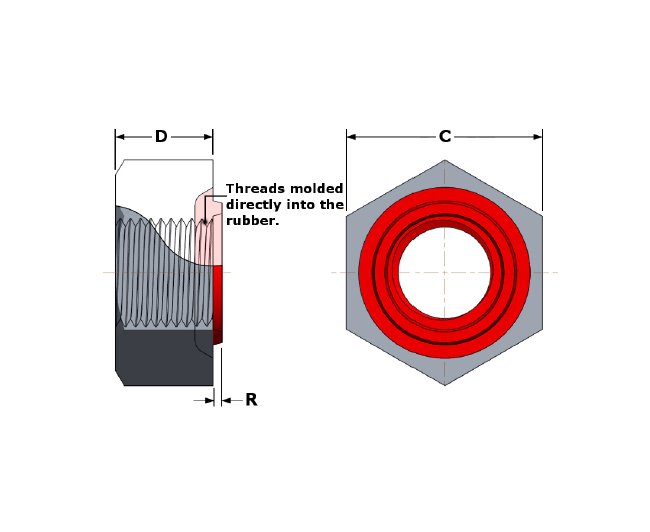

Specifications Distance Between Flats C Type Code Aj
9/16 in
Specifications Distance Between Flats C Type Code Aj Mc
5/8 in
Specifications Height Of Sealing Rib R
1/64 in
Specifications Industry Standards
Underwriters Laboratories (UL) | Underwriters Laboratories of Canada (ULC) | Registration, Evaluation, Authorization, and Restriction of Chemicals (REACH) | Restriction of Hazardous Substances (RoHS) | Defense Federal Acquisition Regulation Supplement (DFARS) Compliant | International Organization for Standardization (ISO 9001:2008) Registered
Specifications Maximum Head Height D Type Code Aj
21/64 in
Specifications Maximum Head Height D Type Code Aj Mc
7/32 in
Specifications Other Fastener Features
Self-Sealing
Specifications Thread Size
3/8-24
Specifications Thread Type
Unified Fine (UNF)
