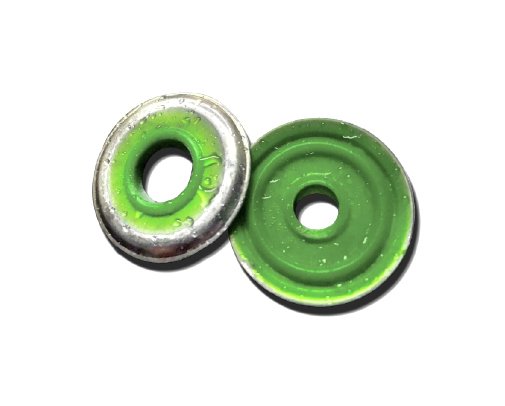

APM Hexseal®'s Seeloc® Washers consist of molded silicone rubber bonded to specially formed stainless steel washers. Designed to be used in conjunction with conventional screws, bolts or studs, Seeloc® Washers are a simple solution that is ideal for all sorts of applications, especially where spray, vapors or wash-downs are present, or where there is concern of contamination from dust, oils or salt build-up. The silicone contact surface features a continuous ridge which, upon compression, creates a 360º sealing barrier around the periphery of the washer face. The silicone rubber also forms a seal under the head of the associated fastener and makes full vertical contact with the threads/shank, making for a complete, high-pressure seal unlike any other.In addition to conventional mounting holes, Seeloc® Washers can be used over extra-large holes, or even oddly shaped adjustment slots. They also make an excellent "plug" for sealing optional knockout holes in control boxes or electrical cabinets.
Product Specifications
Additional Information
Their reusability make them perfect for applications that might require periodic maintenance or adjustments.UL Recognized (UL Type 4X/6 enclosures) and IP66/68 rated, Seeloc® Washers provide a high-performance, air- and liquid-tight seal that is ideal for applications where spray, vapors or wash-downs are present, or where there is a concern of damage from a wide range of contaminants, such as dust, oils and salt build-up.APM Hexseal® is now introducing our newly developed Heavy-Duty Seeloc® Washers, capable of handling torque values AT LEAST 50% higher than our original Seeloc® Washers. Currently available in both 1/2" (14 mm) and 1" (25.4 mm) O.D. sizes, these new sealing washers are perfect for a myriad of sealing requirements, from medical equipment and chemical handling, to construction equipment and food processing. Seeloc® Washers are a proven solution just waiting for a problem!For information on maximum torque values for our Original and Heavy-Duty Seeloc® Washers.APM Hexseal®'s UL and ULC Recognized Components conform to UL Standard 50. Contact us for a complete list of our Recognized Components and ratings.

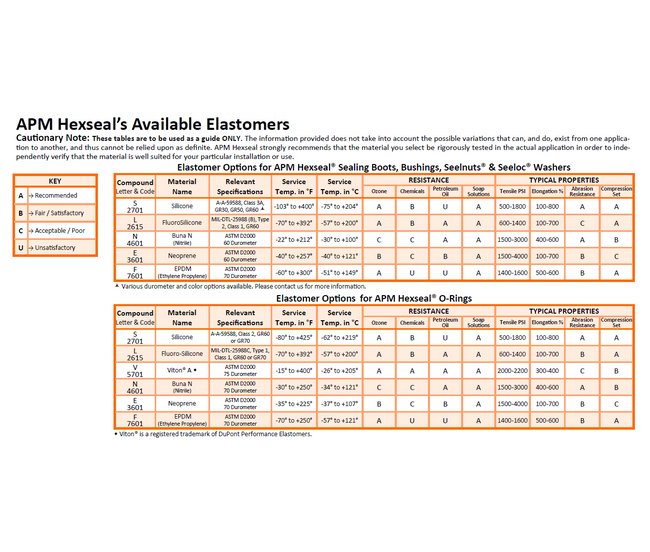

Material Specifications Elastomer
GR50 | Silicone (Alternative Materials are Available.) Conforms to A-A-59588 | Green (Standard color for Metric Seeloc® Washers is red. Alternative colors are available by special order.) | Class 3A
Material Specifications Enclosure Protection
International Electrotechnical Commission (IEC) Ingress Protection (IP66) | Ingress Protection (IP68) (A dual IP code rating indicates that both ratings apply.)
Material Specifications Internal And External Pressure Range
0 to 100 psig
Material Specifications Materials
18/8 Stainless Steel
Material Specifications Resistant To
Dust | Fungus | Lubricating Oils | Most Acids | Ozone | Salt Spray | Splash | Sunlight | Weather
Material Specifications Shelf Life
Excess of 25 Years
Material Specifications Temperature Range
-103 to 400 ºF | -75 to 204 ºC
Note
Proudly manufacturing in the USA for 70 years.Please contact us directly for additional parts and alternative size options.
Specifications Compatible Thread Size
#8
Specifications Features
Air-Tight | Self-Sealing
Specifications Industry Standards
Underwriters Laboratories (UL) | Underwriters Laboratories of Canada (ULC) | Registration, Evaluation, Authorization, and Restriction of Chemicals (REACH) | Restriction of Hazardous Substances (RoHS) | Defense Federal Acquisition Regulation Supplement (DFARS) Compliant | International Organization for Standardization (ISO 9001:2008) Registered
Specifications Maximum Mounting Hole Diameter
3/8 in | 9.53 mm
Specifications Outer Diameter C
1 in
Specifications System Of Measurement
Imperial
