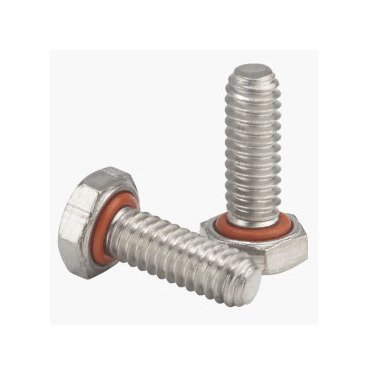

APM Hexseal® Standard Seelbolt® 10 Millimeter (mm) Distance between Flats (C) High-Pressure Self-Sealing Hex Bolt
APM Hexseal® Standard Seelbolt® 10 Millimeter (mm) Distance between Flats (C) High-Pressure Self-Sealing Hex Bolt
SKU:APM-9c3b18
N/A
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
APM Hexseal® Standard Seelbolt® 10 Millimeter (mm) Distance between Flats (C) High-Pressure Self-Sealing Hex Bolt
$49.99
Quantity: 1
Claim Your Seller Account
APM Hexseal® Standard Seelbolt® 10 Millimeter (mm) Distance between Flats (C) High-Pressure Self-Sealing Hex Bolt
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

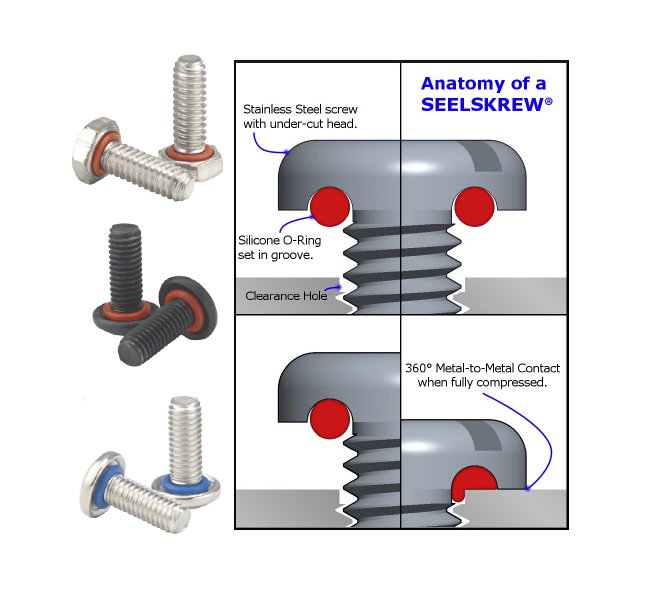

In addition to fastening, our self-sealing screws and bolts offer a reliable and reusable seal, preventing (or containing!) contamination from dust, air, water, lubricants and other liquid or gaseous substances. They are also vibration resistant, making them a great choice for applications that encounter day-to-day jarring, or repetitive movement.Should you need a more serious level of vibration resistance, our screws and bolts are available with additional locking features, such as self-locking pellets, strips and patches. Seelskrews® and Seelbolts® are available in many standard thread sizes and with various o-ring elastomer options. Some additional customizations include specialty thread-forming variations, tamper-resistant drives, thread captivation, as well as paint and finish options.
Product Specifications
Additional Information
APM Hexseal® holds the notable distinction of having designed and patented the very first self-sealing fasteners, which became our trademarked Seelskrews® and Seelbolt®. In addition to fastening, our self-sealing screws and bolts offer a reliable and reusable seal, preventing (or containing!) contamination from dust, air, water, lubricants and other liquid or gaseous substances. They are also vibration resistant, making them a great choice for applications that encounter day-to-day jarring, or repetitive movement. Should you need a more serious level of vibration resistance, our screws and bolts are available with locking features such as self-locking pellets, strips and patches. Some additional customizations include specialty thread-forming variations, tamper-resistant drives, thread captivation, as well as paint and finish options. Contact us for additional thread size and o-ring elastomer options.APM Hexseal®'s UL and ULC Recognized Components conform to UL Standard 50. Contact us for a complete list of our Recognized Components and ratings.
Material Specifications Enclosure Protection
International Electrotechnical Commission (IEC) Ingress Protection (IP66) | Ingress Protection (IP68) (A dual IP code rating indicates that both ratings apply.)
Material Specifications Materials
18/8 Stainless Steel
Material Specifications O Ring Elastomer
Class 2 | GR60 | GR70 | Red (Alternative O-Ring Elastomers are Available.) | Silicone Conforms to A-A-59588
Material Specifications Pressure Range
0 to 20,000 psig
Material Specifications Resistant To
Dust | Fungus | Lubricating Oils | Most Acids | Ozone | Salt Spray | Splash | Sunlight | Weather
Material Specifications Shelf Life
Excess of 25 Years
Material Specifications System Of Measurement
Metric
Material Specifications Temperature Range
-80 to 425 ºF | -62 to 219 ºC
Material Specifications Treatment
Passivated
Note
Proudly manufacturing in the USA for 70 years.Please contact us directly for additional parts and alternative size options.
Specifications Class
6g

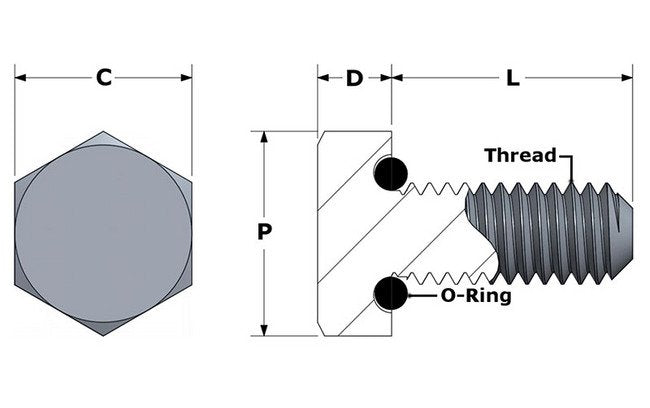

Specifications Distance Between Flats C
10 mm
Specifications Distance Between Points P
11.28 mm
Specifications Head Type
Hex
Specifications Industry Standards
Underwriters Laboratories (UL) | Underwriters Laboratories of Canada (ULC) | Registration, Evaluation, Authorization, and Restriction of Chemicals (REACH) | Restriction of Hazardous Substances (RoHS) | Defense Federal Acquisition Regulation Supplement (DFARS) Compliant | International Organization for Standardization (ISO 9001:2008) Registered
Specifications Maximum Head Height D
4.15 mm
Specifications Maximum Recommended Clearance Hole Depth
3.00 mm
Specifications Maximum Recommended Clearance Hole Diameter
6.83 mm
Specifications Minimum Available Length L
8 mm
Specifications Minimum Recommended Clearance Hole Depth
2.00 mm
Specifications Minimum Recommended Clearance Hole Diameter
6.73 mm
Specifications Other Fastener Features
Self-Sealing
Specifications Thread Size
M6 x 1
