APM Hexseal® Standard Seelskrew® 8.69 Millimeter (mm) Maximum Head Diameter (C) Standard Flat Head High-Pressure Self-Sealing Screw with Cross Recess Drive

APM Hexseal® Standard Seelskrew® 8.69 Millimeter (mm) Maximum Head Diameter (C) Standard Flat Head High-Pressure Self-Sealing Screw with Cross Recess Drive

APM-c667d5

N/A

$49.99
$49.99
Sale

Initiate Order

APM Hexseal® Standard Seelskrew® 8.69 Millimeter (mm) Maximum Head Diameter (C) Standard Flat Head High-Pressure Self-Sealing Screw with Cross Recess Drive

APM Hexseal® Standard Seelskrew® 8.69 Millimeter (mm) Maximum Head Diameter (C) Standard Flat Head High-Pressure Self-Sealing Screw with Cross Recess Drive

$49.99

Quantity: 1

Claim Your Seller Account

APM Hexseal® Standard Seelskrew® 8.69 Millimeter (mm) Maximum Head Diameter (C) Standard Flat Head High-Pressure Self-Sealing Screw with Cross Recess Drive

APM Hexseal® Standard Seelskrew® 8.69 Millimeter (mm) Maximum Head Diameter (C) Standard Flat Head High-Pressure Self-Sealing Screw with Cross Recess Drive

$49.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

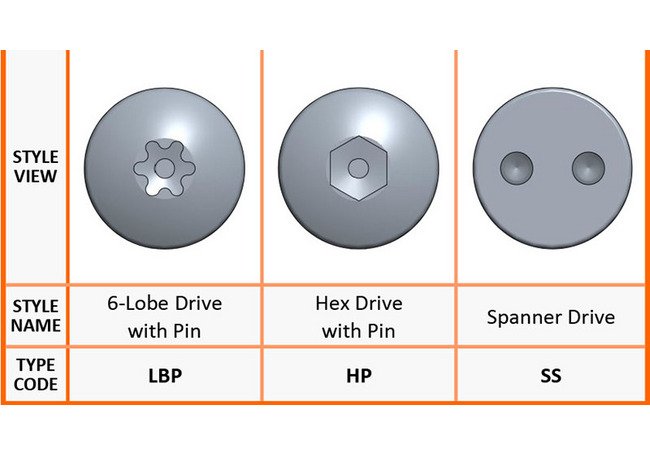

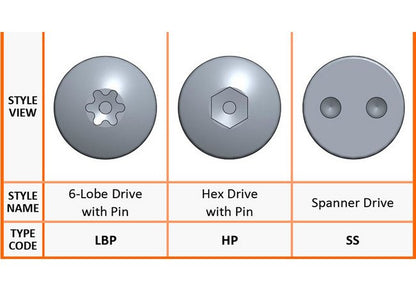

In addition to fastening, our self-sealing screws and bolts offer a reliable and reusable seal, preventing (or containing!) contamination from dust, air, water, lubricants and other liquid or gaseous substances. They are also vibration resistant, making them a great choice for applications that encounter day-to-day jarring, or repetitive movement.Should you need a more serious level of vibration resistance, our screws and bolts are available with additional locking features, such as self-locking pellets, strips and patches. Seelskrews® and Seelbolts® are available in many standard thread sizes and with various o-ring elastomer options. Some additional customizations include specialty thread-forming variations, tamper-resistant drives, thread captivation, as well as paint and finish options.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Additional Information
APM Hexseal® holds the notable distinction of having designed and patented the very first self-sealing fasteners, which became our trademarked Seelskrews® and Seelbolts®.APM Hexseal®'s UL and ULC Recognized Components conform to UL Standard 50. Contact us for a complete list of our Recognized Components and ratings.
Material Specifications Enclosure Protection
International Electrotechnical Commission (IEC) Ingress Protection (IP66)|Ingress Protection (IP68) (A dual IP code rating indicates that both ratings apply.)
Material Specifications Materials
18/8 Stainless Steel
Material Specifications O Ring Elastomer
Class 2 | GR60 | GR70 | Red (Alternative O-Ring Elastomers are Available.) | Silicone Conforms to A-A-59588
Material Specifications Pressure Range
0 to 20,000 psig
Material Specifications Resistant To
Dust | Fungus | Lubricating Oils | Most Acids | Ozone | Salt Spray | Splash | Sunlight | Weather
Material Specifications Shelf Life
Excess of 25 Years
Material Specifications System Of Measurement
Metric
Material Specifications Temperature Range
-80 to 425 ºF | -62 to 219 ºC
Material Specifications Thread Size
M4 x 0.70
Material Specifications Treatment
Passivated
Note
Proudly manufacturing in the USA for 70 years.Please contact us directly for additional parts and alternative size options.
Note For Available Lengths L
Available in increments of 2 mm. Tolerance for lengths up to 25 mm is + 0 -0.8 mm. Tolerance above 25 mm is + 0 -1.6 mm.
Specifications Available Lengths L
4 to 40 mm
Specifications Class
6g
Specifications Drive Size
#2
Specifications Drive Style
Phillips
Specifications Features
High-Pressure | Sealing
Specifications Head Type
Pan
Specifications Industry Standards
Underwriters Laboratories (UL) | Underwriters Laboratories of Canada (ULC) | Registration, Evaluation, Authorization, and Restriction of Chemicals (REACH) | Restriction of Hazardous Substances (RoHS) | Defense Federal Acquisition Regulation Supplement (DFARS) Compliant | International Organization for Standardization (ISO 9001:2008) Registered

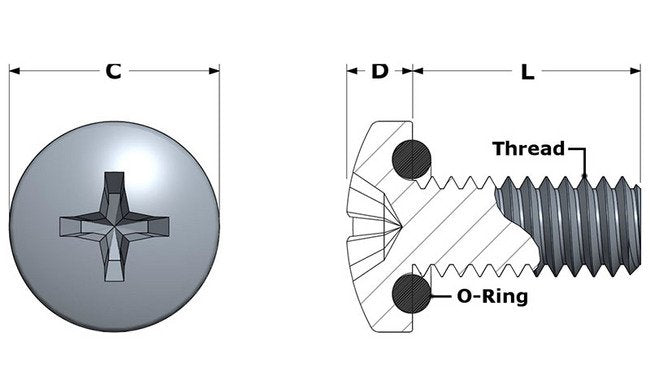

Specifications Maximum Head Diameter C
8.69 mm
Specifications Maximum Head Height D
3.05 mm
Specifications Maximum Recommended Clearance Hole Depth
2.10 mm
Specifications Maximum Recommended Clearance Hole Diameter
4.54 mm
Specifications Minimum Recommended Clearance Hole Depth
1.40 mm
Specifications Minimum Recommended Clearance Hole Diameter
4.39 mm
