The AquaMaKKs™ Water Cooled Clutches and Brakes with Composite Water Jacket are advanced pneumatic or hydraulically controlled systems designed for optimal torque transmission. Featuring alternating friction discs and water jackets for efficient cooling, these clutches and brakes boast copper wear plates for exceptional heat dissipation. Available in 19", 25", and 36" sizes with dynamic torque ratings ranging from 66,500 in.lb. to 1,611,000 in.lbs., these units deliver high performance and reliability in demanding industrial applications.
Product Specifications
Specifications Actuation
Air Applied
Specifications Assembly Number
7-319AM-W-1300

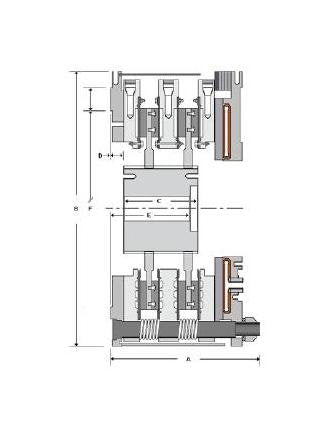

Specifications Bolt Circle Diameter C
0.656 in | 17 mm
Specifications Diameter A
28.30 in | 719 mm
Specifications Diameter B
28.3 in | 719 mm
Specifications Dynamic Torque Rating 100 Psi7 Bar
249000 lb·in | 28112 Nm
Specifications Dynamic Torque Rating 80 Psi55 Bar
199000 lb·in | 22467 Nm
Specifications Heat Capacity For Parallel Water Hosing
555 hp | 414 kW
Specifications Heat Capacity For Series Water Hosing
278 hp | 207 kW
Specifications Holes Quantity
10
Specifications Hole Circle
22 in | 559 mm
Specifications Inner Diameter Length F
18.25 in | 464 mm
Specifications Length A
21.33 in | 542 mm
Specifications Length C
11.33 in | 288 mm
Specifications Length D
1.25 in | 32 mm
Specifications Length E
10.88 in | 276 mm
Specifications Manufacturer
Wichita Clutch
Specifications Maximum Bore Size
6.13 in | 156 mm
Specifications Outer Diameter Length F
23.25 in | 591 mm
Specifications Pilot Diameter B
11 in | 279 mm
Specifications Plt Thickness
1.38 in | 35 mm
