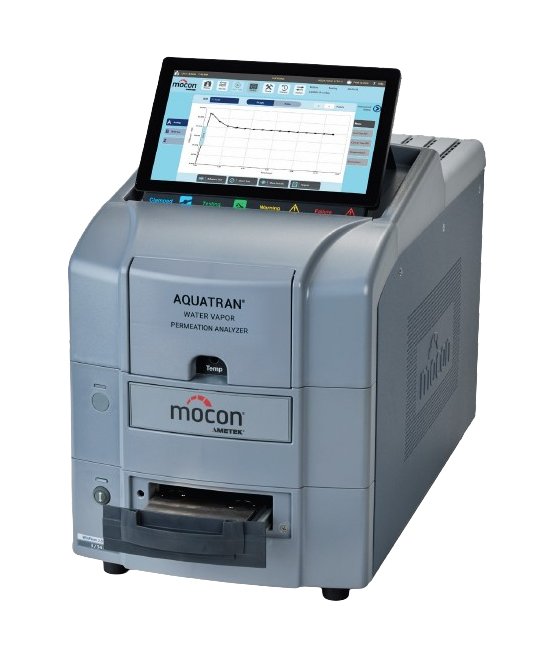

The Aquatran® Series 3/34 A Water Vapor Permeation Analyzer is a cutting-edge instrument designed for precise Oxygen Transmission Rate (OTR) and Water Vapor Transmission Rate (WVTR) testing on barrier films and packages. Its advanced features include interchangeable cartridges for enhanced testing versatility, automated control systems for user-friendly operation, and patented modulated infrared (IR) technology for accurate and repeatable results. With a wide detection range and conformance to industry standards like ASTM and ISO, this analyzer is ideal for institutional labs, research facilities, and production operations seeking reliable permeation testing data.
Product Specifications
Accessories Accessories
PermWare® software for data collection and remote monitoringTest cartridges to expand capabilities:Reduced area cartridgeEdge effect cartridgeBlister testing cartridgePackage testing adapter
Additional Information Additional Information

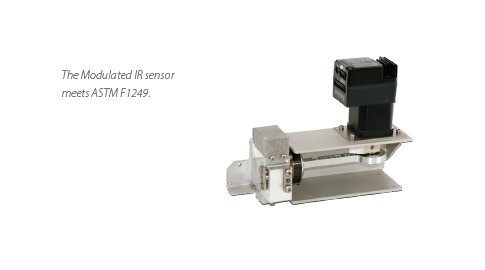

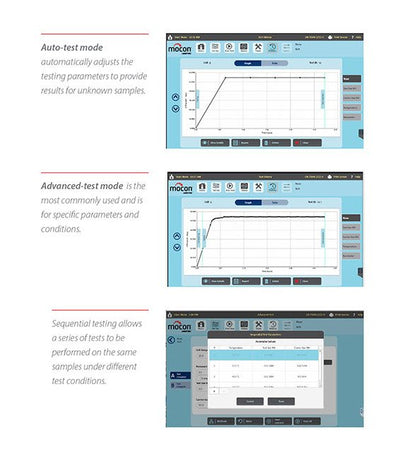

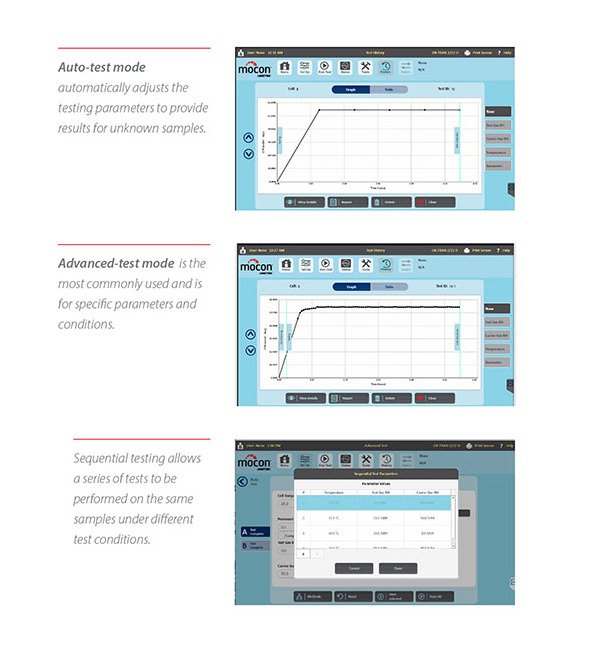

Simple OperationPrecision Measurement with Our Accurate SensorsThe Aquatran® 3/34 uses our patented modulated infrared (IR) technology to provide accurate and repeatable results. Short exam times reduce overall test times to increase instrument throughput. It also has the longest life of any WVTR sensor on the market and is the only modulated IR sensor system to meet ASTM standard F1249.User-friendly Automated TestingThe WinPerm⢠2.5 control system features fully automated testing, including temperature, gas flow and RH control. Final test reports are automatically saved and can be set to automatically print and export to permanent storage directories.One push of a button initiates a fully automated test following pre-set stored parameters, reducing operator variability. The intuitive color touchscreen reduces the learning curve, while the automated testing provides consistent results and fewer errors.The analyzer is compatible with PermWare®, a complete permeation laboratory data management system.
Dimensions And Weight Depth
23 in | 58.0 cm
Dimensions And Weight Height
15.5 in | 39.4 cm
Dimensions And Weight Weight
95 lb | 43.1 kg
Dimensions And Weight Width
12 in | 30.4 cm
Features Features

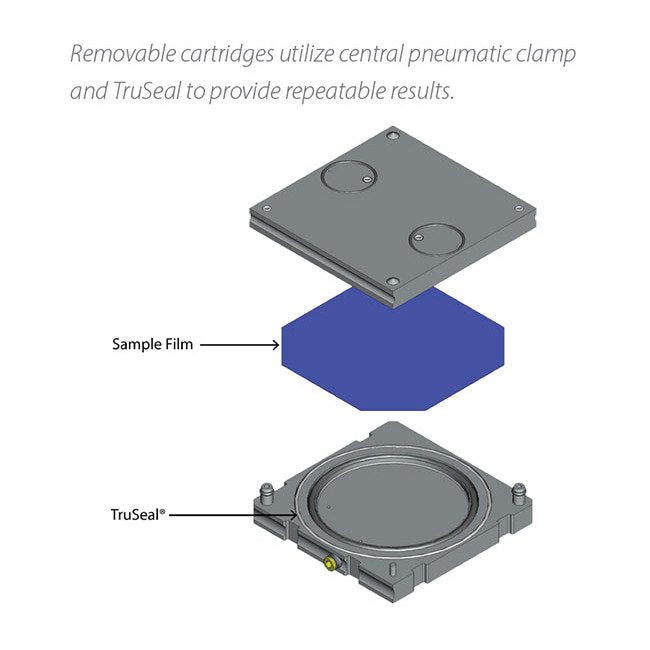

Interchangeable Cartridges for Testing VersatilityThese instruments feature our exclusive test cell drawer design with one horizontal removable easy-to-load test cartridge that improves test repeatability. One button opens and closes the drawers, and the cartridge is automatically clamped in place with consistent force on any sample thickness. This provides greater test repeatability than manual or cam-clamping methods. With the cartridge removed, it is easy to clean and consistently load samples on the bench-top, reducing operator variability.The interchangeable cartridges also work with other MOCON® permeation analyzers. These purpose-built cartridges increase accuracy, extend the range, or make it possible to test unique or difficult samples. All test cartridges incorporate our proprietary TruSeal® design, which uses two seals and flushes gas between them to prevent ambient ingress into the test area. This reduces background levels, improves repeatability, and reduces the need to run individual zero.Testing Capabilities and ApplicationsThese 1-cell models are designed to be effective yet simple-to-use instruments for a wide range of applications where low throughput is acceptable. The testing capability make them an ideal OTR or WVTR instrument to test single samples from mono-layer to multi-layer films, coated films and coated paper board. Whether it is research and development at a university or as a QC instrument to support production operations, the 1-cell modules provide reliable data to support your permeation testing needs.
Performance Specifications Carrier Gas
Nitrogen (99.7% N2 or better)
Performance Specifications Controlled Relative Humidity Rh Testi
3 %
Performance Specifications Film Thickness
0 to 120 mil | 3 mm
Performance Specifications Temperature Control Range
20 to 40 ºC
Performance Specifications Temperature Control Range Tolerance
0.2 ºC
Performance Specifications Test Gas
Nitrogen (99.7% N2 or better)
Specifications Barrier Level
Low to Moderate
Specifications Conformance Standards
Canadian Standards Association (CSA) Safety Compliance | European Conformity (CE) | Underwriters Laboratories (UL)
Specifications Connectivity
Ethernet Port2 USB Ports
Specifications Detection Range
0.1 to 100 cm³/(m²·day)
Technical Specifications Industry Standards
American Society for Testing and Materials (ASTM) F-1249 | International Organization for Standardization (ISO) 15106-2 | Japanese Industrial Standards (JIS) K7129 | National Standard (Recommended) (GB/T) 26253-2010 | National Standard (Recommended) (GB/T) 31355-2014 | Technical Association of the Pulp and Paper Industry (TAPPI) T557
Technical Specifications Repeatability For Normal Model 50 Cm
0.02 g/(m²·day) or 1%
Technical Specifications Resolution For Normal Model 50 Cm
0.0001 g/(m²·day)
Technical Specifications Test Range For Masked Model 50 Cm
1.0 to 1000 g/(m²·day) | 0.06 to 64.5 g/(100 in²·day)
Technical Specifications Test Range For Normal Model 50 Cm
0.1 to 100 g/(m²·day) | 0.006 to 6.45 g/(100 in²·day) | 0.0005 to 0.5 cm³/(pkg·day)
Warranty Warranty

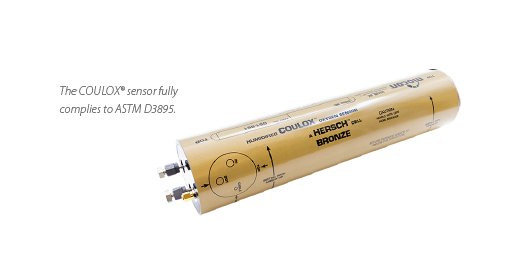

Full 100% warranty on parts and workmanship for 12 monthsExclusive 4-year prorated warranty on the COULOX and modulated IR sensors
