ATS Electro-Luber™ 4-Port Single Line Grease Dispenser
ATS Electro-Luber™ 4-Port Single Line Grease Dispenser
SKU:ELE-bd9e42
Efficiently lubricate up to 4 points with precision using the ATS Electro-Luber™ 4-Port Grease Dispenser.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
ATS Electro-Luber™ 4-Port Single Line Grease Dispenser
$129.99
Quantity: 1
Claim Your Seller Account
ATS Electro-Luber™ 4-Port Single Line Grease Dispenser
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

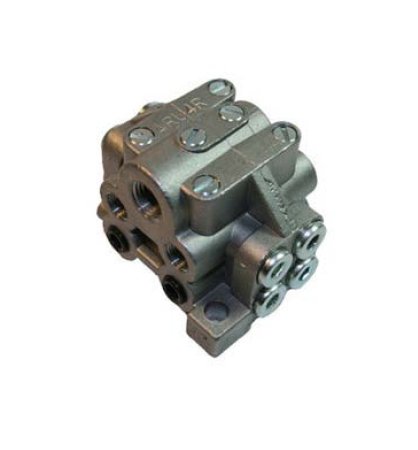

The ATS Electro-Luber™ 4-Port Single Line Grease Dispenser is a high-performance distributor designed to efficiently lubricate up to 4 separate points with precision. Featuring an indicator pin for cycle completion, this dispenser ensures optimal operation. With 0.3 cm³ discharge volume per outlet port and reliable FNPT connections, it offers seamless lubrication. Easily customizable for fewer points, this dispenser, when paired with an ULTIMATE Lubricator, creates a robust multi-point grease lubrication system.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Discharge Volume Per Outlet Port
0.3 cm³

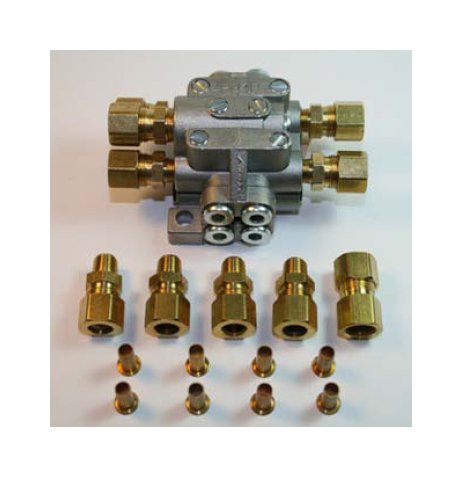

Specifications Distribution Block Kit Components
1 4-port Distribution Block | 3/8 Inch (in) Outer Diameter (OD) Hose not included | 8-3/8 Inch (in) Comp X 1/4 Inch (in) Male Pipe Thread (MPT) Connectors
Specifications Inlet
Automatic Transfer Switches (ATS) recommends installing the ultimate lubricator as close to the block as possible. The optimum location is directly on the block.
Specifications Inlet Port Size
1/4 in
Specifications Inlet Thread Type
Female National Pipe Thread (FNPT)
Specifications Note
After installation, all lines need to be primed using a grease gun attached to the zirk fitting on the block until grease is flowing from all outlets.
Specifications Number Of Ports
4
Specifications Outlet
Automatic Transfer Switches (ATS) recommends a maximum of 10 Feet (ft) of 3/8 Inch (in) Outer Diameter (OD) by 1/4 Inch (in) Inner Diameter (ID) Air Brake Hose on each outlet port.
Specifications Outlet Port Size
1/8 in
Specifications Outlet Port Thread Type
Female National Pipe Thread (FNPT)
Specifications Weight
1.3 lb | 0.6 kg
