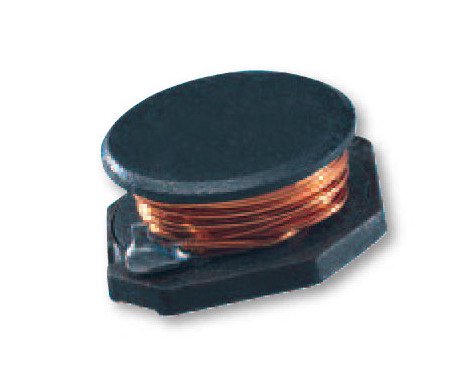

AX97 Series Power Shielded Inductors - 1000 µH
AX97 Series Power Shielded Inductors - 1000 µH
SKU:IND-42586c
Slim, low resistance SMD Power Shielded Inductors - Ideal for laptops, converters, and communication devices.
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
AX97 Series Power Shielded Inductors - 1000 µH
$34.99
Quantity: 1
Claim Your Seller Account
AX97 Series Power Shielded Inductors - 1000 µH
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The AX97 Series SMD Power Shielded Inductors offer a slim design with low resistance and exceptional DC current characteristics, making them ideal for a variety of applications such as laptop computers, DC/DC converters, and portable communication equipment. With an inductance of 1000 µH ±20%, a max DC resistance of 6.000 Ohm, and a current rating of 0.05 A, these inductors provide efficient performance and reliable power supply. The dimensions and build quality meet stringent industry standards, ensuring optimal functionality and durability.
Product Specifications
Applications 0
Laptop and Notebook Computers and PDAsDC/DC ConvertersPortable Communication EquipmentInductor for General Purpose Use
Specifications Current Rating
0.05 A
Specifications Dimension A
0.530 in | 13.46 mm
Specifications Dimension B
0.370 in | 9.40 mm
Specifications Dimension C
0.137 in | 3.50 mm
Specifications Dimension D
0.404 in | 10.26 mm
Specifications Dimension E
0.120 in | 3.05 mm
Specifications Dimension F
0.135 in | 3.43 mm
Specifications Inductance H 20
1000.0 µH
Specifications Max Dc Resistance At 25
6.000 Ohm
