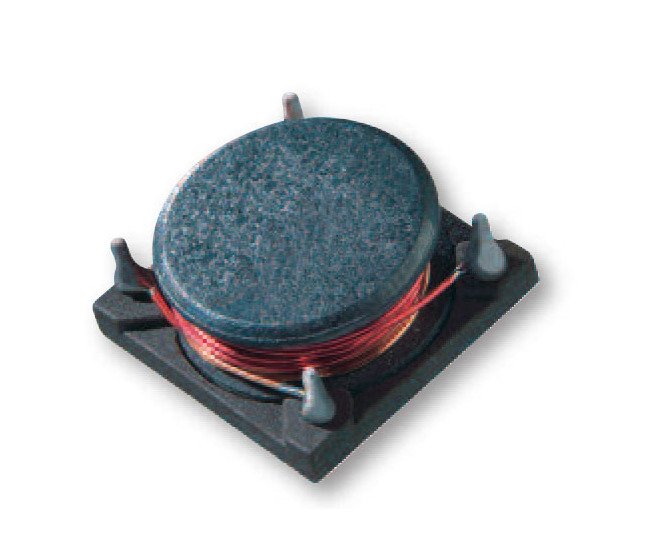

AX97 Series SMD Power Shielded Inductors - 220.0 µH

AX97 Series SMD Power Shielded Inductors - 220.0 µH

SKU:IND-517c1a

Slim design with low resistance and excellent DC current characteristics.

Regular price $9.99
Regular price Sale price $9.99
Sale

Initiate Order

AX97 Series SMD Power Shielded Inductors - 220.0 µH

AX97 Series SMD Power Shielded Inductors - 220.0 µH

$9.99

Quantity: 1

Claim Your Seller Account

AX97 Series SMD Power Shielded Inductors - 220.0 µH

AX97 Series SMD Power Shielded Inductors - 220.0 µH

$9.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The AX97 Series SMD Power Shielded Inductors offer a slim design with low resistance, ensuring excellent DC current characteristics. With an inductance of 220.0 µH and max. DC resistance of 0.3300 Ohm, these inductors are ideal for applications in laptop, notebook computers, PDAs, DC/DC converters, and portable communication equipment. Meeting stringent industry standards, these inductors provide reliable performance and durability.

Product Specifications

Applications 0
Laptop and Notebook Computers and PDAsDC/DC ConvertersPortable Communication EquipmentInductor for General Purpose Use
Specifications Current Rating
1.3 A

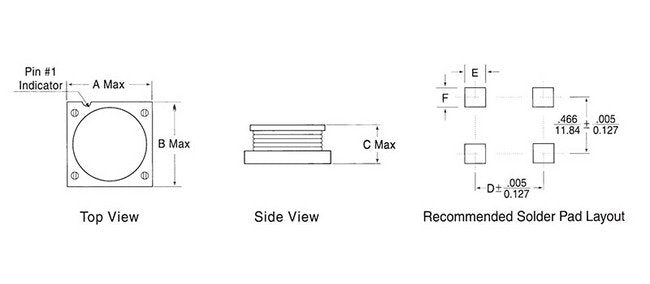

Specifications Dimension A
0.634 in | 16.10 mm
Specifications Dimension B
0.622 in | 15.80 mm
Specifications Dimension C
0.284 in | 7.21 mm
Specifications Dimension D
0.520 in | 13.21 mm
Specifications Dimension E
0.157 in | 4.00 mm
Specifications Dimension F
0.157 in | 4.00 mm
Specifications Inductance H 20
220.0 µH
Specifications Max Dc Resistance At 25
0.3300 Ohm
