BASELINE® Series Versatile THA Analyzer with FID Sensor
BASELINE® Series Versatile THA Analyzer with FID Sensor
SKU:PRO-6932d1
High-performance THA analyzer with FID sensor for precise trace level measurements in gas analysis applications.
Regular price
$15,999.00
Regular price
Sale price
$15,999.00
Unit price
per
Initiate Order
BASELINE® Series Versatile THA Analyzer with FID Sensor
$15,999.00
Quantity: 1
Claim Your Seller Account
BASELINE® Series Versatile THA Analyzer with FID Sensor
$15,999.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

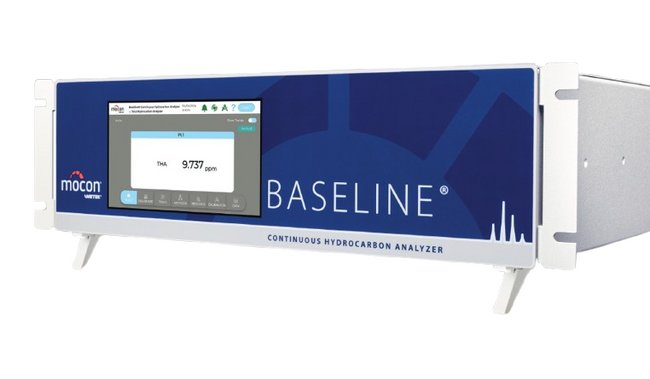

The BASELINE® Series Versatile Total Hydrocarbon Analyzer offers exceptional performance for precise trace level measurements down to ppb levels. Incorporating a Flame Ionization Detector (FID) sensor, it provides accurate results for specialty gas, oil and gas, environmental, and semiconductor applications. With user-definable ranges, multilevel alarms, and intuitive graphical touch display, this analyzer ensures reliable and effortless operation. Ideal for institutional buyers requiring industry-approved gas measurement instruments.
Product Specifications
Accessories Accessories
Preventative Maintenance KitIncludes all necessary partsGas GeneratorsHydrogen generatorZero air generators Service & Support OptionsStart-up and training, one day onsite
Electrical Specifications Alternating Current Ac Voltage
100 to 240 V
Electrical Specifications Current
1 A
Electrical Specifications Frequency
50 Hz | 60 Hz
Features Features

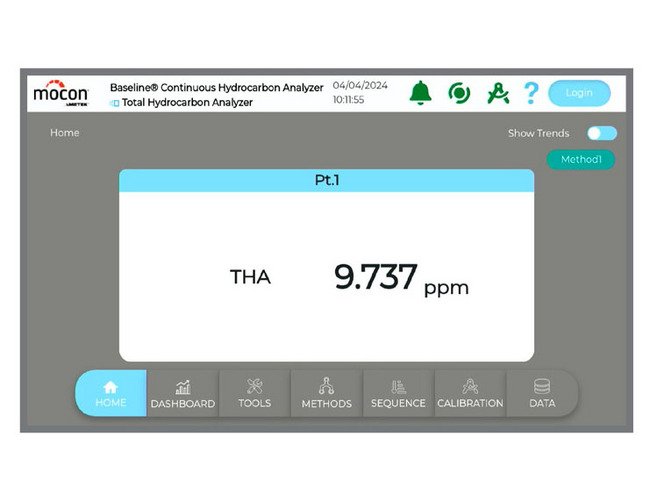

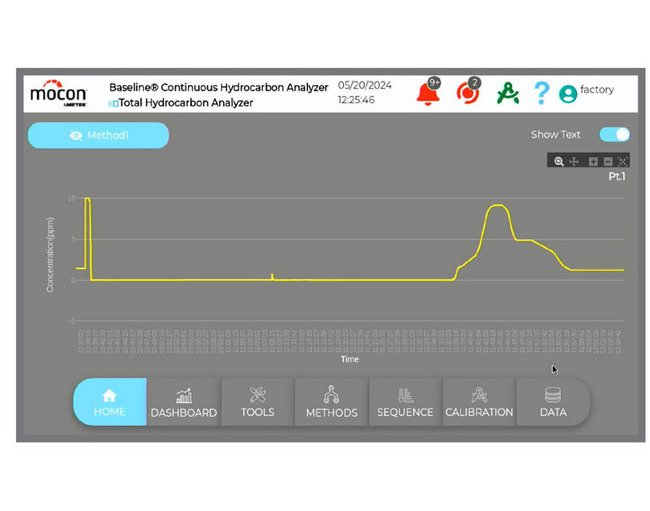

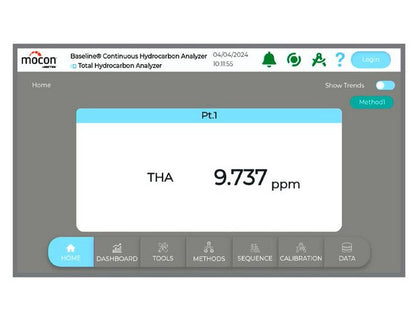

High Performance Effortless OperationIndustry-approved gas measurementReliable performance meets modern interfaceThe BASELINE® Series of Continuous Hydrocarbon Analyzers (CHAs) from AMETEK MOCON® are instruments designed for continuous ambient or process hydrocarbon gas measurement in environmental or industrial settings. All instruments in the series are powered by our high-quality Flame Ionization Detection (FID) sensor, which enables fast, accurate measurement and low detection limits with minimal interference.The CHA Series combines reliable, industry-proven technology with a modern interface and straightforward troubleshooting, allowing you to focus on the results.Operation designed for humansHigh-quality data isn't enough if the instrument is difficult to use. The CHA Series features an intuitive, streamlined interface. Instruments include a range of capabilities to help simplify your process, including easily read results, real-time graphing, the ability to review historical data without pausing instrument operation, and dual display output. The CHA Series also features networking capabilities for easier connectivity, data sharing within a network, and remote diagnostics.Fast and Accurate - FIDOur proprietary FlowGuard electronic control regulates the delivery of fuel, air and a small portion of the sample gas to the FID. During combustion, gases are ionized, measured and reported as a concentration. This method provides fast gas measurement with some of the highest accuracy levels on the market.Intuitive InterfaceModern GUI interfaceDual display capabilitySimple DiagnosticsOn-board data storageReal-time graphingSynchronous operation and data reviewHigh PerformanceLow detection levelsFast measurementAutomatic calibration
Physical Specifications Depth
16.25 in | 41.28 cm
Physical Specifications Height
5.25 in | 13.02 cm
Physical Specifications Weight
< 20 lb | 9.07 kg
Physical Specifications Width
19 in | 48.26 cm
Specifications Industry Focus
Specialty Gas | Oil and Gas | Environmental | Semiconductors
Technical Specifications Accuracy Repeatability
+1% full-scale response
Technical Specifications Alarms
Multilevel concentration and fault alarms, audible and visual
Technical Specifications Calibration
Programmable automatic or manual calibration
Technical Specifications Configuration
Benchtop or 19" (48.3 cm) Rack-Mount, 3U
Technical Specifications Detector

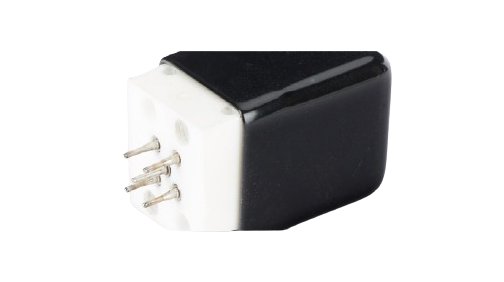

Flame Ionization Detector (FID)
Technical Specifications Display Orientation
Diagonal
Technical Specifications Display Size
7 in | 17.8 cm
Technical Specifications Display Type
Graphical Touch Display
Technical Specifications Drift Span
+1% full-scale, 24 hours
Technical Specifications Drift Zero
+0.025% full-scale over 24 hours
Technical Specifications Non Condensing Operating Humidity
0 to 95 %
Technical Specifications Operating Temperature
32 to 104 ºF | 0 to 40 ºC
Technical Specifications Output
LAN/Ethernet, RS-485Optional outputsAnalog, programmable 0-20 mA/4-20 mA isolated output; Relays, 5 programmable From A relays rated to 3 A at 230 VACIf (a) is installed, 8 additional analog outputs and up to 16 additional relays can be added
Technical Specifications Ranges Ch4
User definable based upon calibration:Very Low - 0.01 ppm to 200 ppmLow - 0.1 ppm to 2,000 ppmMedium - 0.3 ppm to 20,000 ppmHigh - 0.003% ppm to 100% ppm
Technical Specifications Response Time
T90 < 5 seconds
Technical Specifications Sampling
Internal single or multi-point, (pump optional)
Technical Specifications Support Gas Requirement
UHP Hydrogen (H2) 30 cc/minZero air - 175 cc/minSpan gas - methane is typical
Unique Needs Unique Needs
Specialty gas producers require robust quality control and quality assurance to keep products consistent and customers happy. Accurate trace level measurements and a reliable instrument are vital to maintaining tight operations.For oil and gas companies, downtime means major financial loss. That's why a rugged instrument with user-focused diagnostics and troubleshooting is essential.Whether collecting ambient air quality data or monitoring emissions to stay below required levels, environmental applications require highly accurate results and easy access to data for compliance and reporting.
