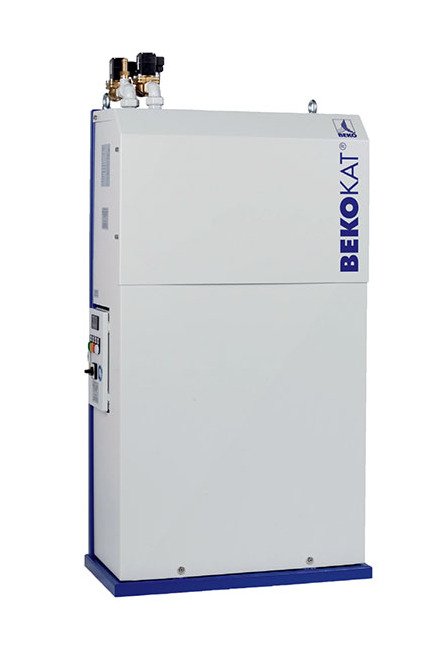

BEKOKAT® CC 705 Catalytic Convertor for Clean Air Treatment

BEKOKAT® CC 705 Catalytic Convertor for Clean Air Treatment

CLE-bdb965

Transform compressed air quality with the BEKOKAT® CC 705 Catalytic Convertor for clean, oil-free, germ-free air.

$14,599.00
$14,599.00
Sale

Initiate Order

BEKOKAT® CC 705 Catalytic Convertor for Clean Air Treatment

BEKOKAT® CC 705 Catalytic Convertor for Clean Air Treatment

$14,599.00

Quantity: 1

Claim Your Seller Account

BEKOKAT® CC 705 Catalytic Convertor for Clean Air Treatment

BEKOKAT® CC 705 Catalytic Convertor for Clean Air Treatment

$14,599.00

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

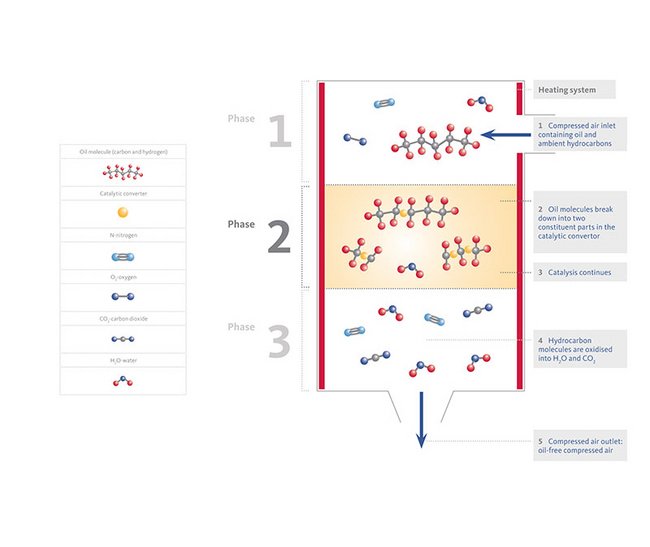

Upgrade your air quality with the BEKOKAT® CC 705 Catalytic Convertor. Specifically designed for total hydrocarbon oxidation in compressed air, this system ensures oil-free air with residual oil as low as ≤ 0.003 mg/m3. Producing germ-free, sterile air and ISO 8573-1, Class 1 certified, it operates efficiently at a maximum pressure of 160 psig. With dimensions of 85.3" x 64.9" x 41.3" and weighing 1774 lb, this catalytic convertor guarantees peak performance in temperatures ranging from +41 ºF to +113 ºF.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Financing Approve Payments
Finance with Approve Payments
Specifications Attainable Oil Residue
≥ 0.003 mg/m³

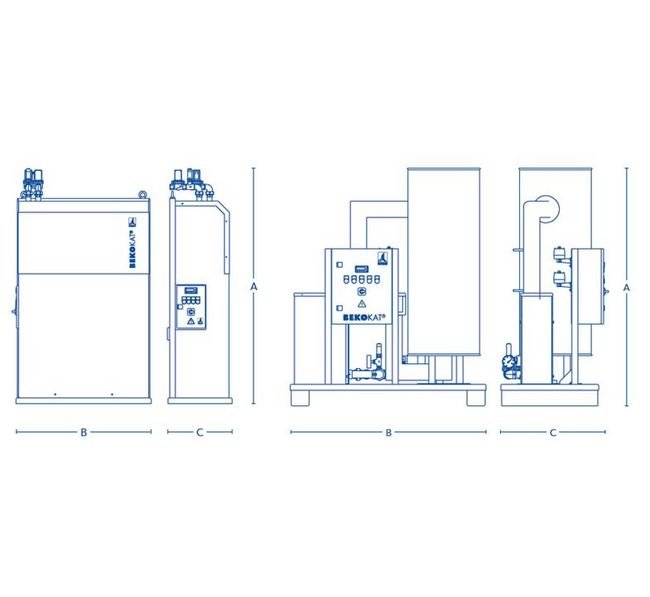

Specifications Dimension A
85.3 in
Specifications Dimension B
64.9 in
Specifications Dimension C
41.3 in
Specifications Flow Rate
705 scfm
Specifications Installed Power
13.80 kW
Specifications Maximum Operating Pressure
160 psig
Specifications Minimum Operating Temperature
+41 ºF
Specifications Pipe Size Npt
2 1/2 in
Specifications Power Consumption Full Load Kw
3.75 kW
Specifications Power Consumption Stand By Kw
0.2520 kW
Specifications Standard Ac Voltage
230 V at 1 phase | 460 V at 3 phase
Specifications Warranty
5 years
Specifications Weight
1774 lb
Standard Features And Benefits 0
Oil Free Compressed Air:Continuously produced from any compressor type down to 0.003 mg/m3.Independent of Conditions:Stable residual oil content throughout the year, independent from any ambient condition.Environmentally Friendly:Produces oil free condensate of the highest quality.Partial Load Operation:Maximum process reliability regardless of production fluctuations.Responsive Controls:Ensures machine safety and operational accuracy.
Technical Specifications Maximum Operating Temperature
+383 ºF
