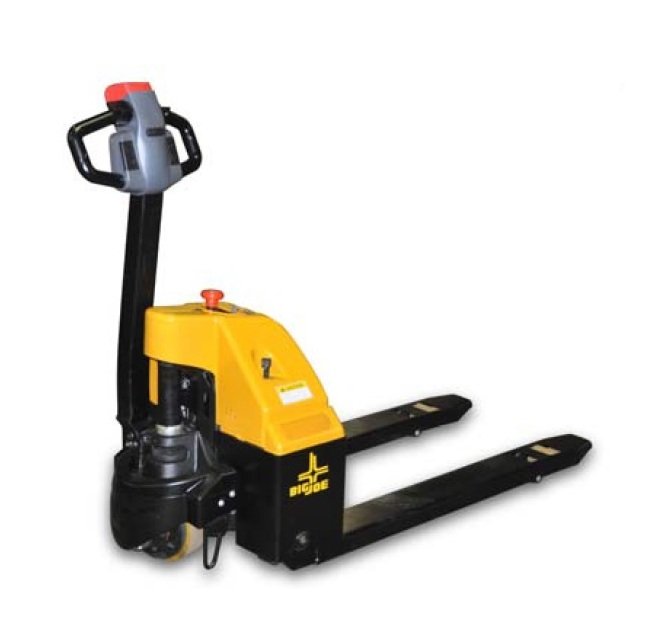

Upgrade your material handling operations with the Big Joe® Electric Power Pallet Trucks. Featuring a 3000 lb capacity, integral maintenance-free 24-Volt 65AH battery, and high-efficiency permanent magnet drive motor, this pallet truck offers seamless movement at speeds up to 2.8 mph. The ergonomic tiller arm controls provide operator comfort and easy handling, while the electromagnetic disc brake ensures safe stops in all conditions. Optional AGM battery upgrade extends run times for up to 4.5 hours. Designed for efficiency, durability, and operator convenience, the Big Joe® Electric Power Pallet Trucks are ideal for enhancing productivity in warehouses, fulfillment centers, and distribution facilities.
Product Specifications
Brakes
Electromagnetic disc brake provides safe and secure stops under all conditions.
Drive Unit
24-Volt permanent magnet DC drive motor with rare earth neodymium magnets increases efficiency and duty cycle.
Electrical
Curtis travel control with matching permanent magnet drive motor. Electric braking, quick disconnect EPD power cut off and battery discharge indicator are standard equipment.
Hydraulics
Permanent magnet pump motor and chrome plated lift cylinder provides smooth lifting and lowering. Pump unit includes DC motor, solenoid, and gear pump.
Optional Battery Ugrade Optional Battery Upgrade
85AH (AGM) Absorbed Glass Mat battery pack for extended run times - up to 4.5 hours.
Serviceability
Removable one piece power head cover allows for easy maintenance.
Technical Specs Brands
Big Joe®
Technical Specs Capacity
3000 lb
Technical Specs Integral Batterycharger
24-Volt 65AH maintenance free batteries with 110VAC plug-in automatic charger.
Technical Specs Speed
24-Volt Curtis transistor travel control with high efficiency permanent magnet drive motor.Variable from 0 mph to 2.8 mph emptyVariable from 0 mph to 2.5 mph loaded
Technical Specs Tireswheels
Drive8.26 x 2.76 in. polyurethaneLoad2.36 x 3.15 in. polyurethane
Technical Specs Weight With Battery And Charger
450 lb
Tiller Arm Controls
Travel, lift, and lower functions are located in the ergonomic operator handle. All operator controls are accessible without having to lift the hand from the handle.Angle grips are designed to allow easy operation with either hand. Wrap around guard, reversing switch, thumb control, and horn are standard. Low mounted tiller arm offers excellent operator comfort and minimum steering effort.
