Cablecraft® Unidrum Lever Control Cables
Cablecraft® Unidrum Lever Control Cables
SKU:PUS-158e8c
Enhance control precision with Cablecraft® Unidrum Lever Control Cables - ideal for light lever control applications.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
Cablecraft® Unidrum Lever Control Cables
$89.99
Quantity: 1
Claim Your Seller Account
Cablecraft® Unidrum Lever Control Cables
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

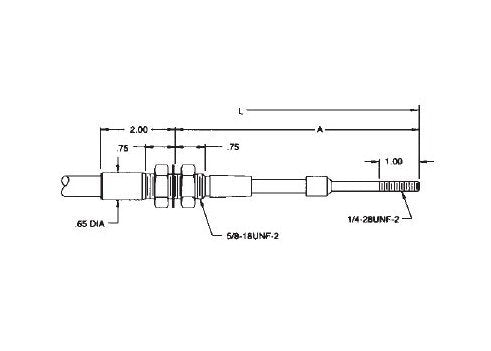

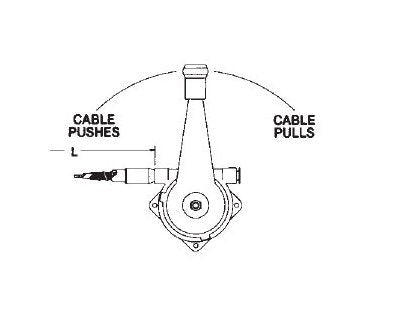

Experience precise lever control with Cablecraft® Unidrum Lever Control Specialty Cables. These cables offer versatility with optional lever/cable combinations suitable for a range of light lever control applications. Featuring a black knob, upper mount left exit, grooved swivel output end configuration, and light-duty wire rope, these utility cables provide an approximate travel of 2 inches for the cable and 90º for the lever. With an overall length of 120 inches and swivel dimensions per stroke ranging from 2 to 6.56 inches (extended: 3 to 8.56 inches), these cables deliver reliable performance and durability for various industrial settings.
Product Specifications
Specifications Cable Exit Position
CableCraft Unidrum Lever Upper Mount, Left Exit
Specifications Cable Travel
2 "
Specifications Knob Color
Black 165-505-101
Specifications Lever Travel
Approx. 90º
Specifications Output End Configuration
Grooved Swivel
Specifications Overall Length In
120 "
Specifications Swivel Dimension A Per Stroke
2 to 6.56 "
Specifications Swivel Dimension A Per Stroke Extended
3 to 8.56 "
Specifications Type
Utility
Specifications Wire Rope Dia
Light Duty
