CeramiX® 10 Inch Abrasive Nylon Disc Brush, 80 Grit
CeramiX® 10 Inch Abrasive Nylon Disc Brush, 80 Grit
SKU:ABR-df8db2
Enhance productivity with the CeramiX® 10 Inch Abrasive Nylon Disc Brush for efficient surface finishing.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
CeramiX® 10 Inch Abrasive Nylon Disc Brush, 80 Grit
$59.99
Quantity: 1
Claim Your Seller Account
CeramiX® 10 Inch Abrasive Nylon Disc Brush, 80 Grit
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

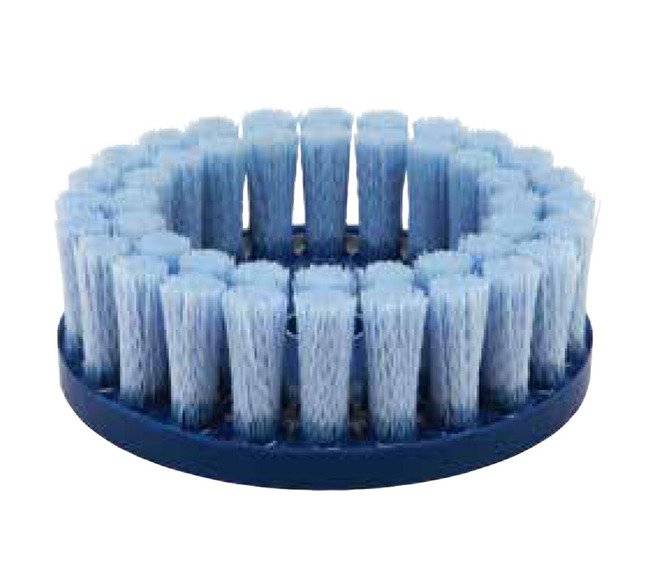

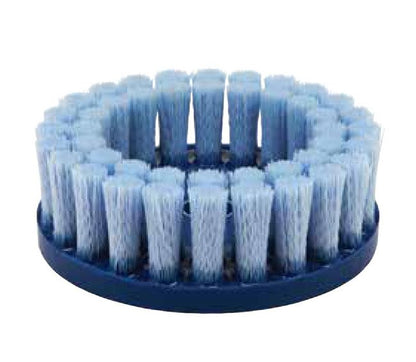

The CeramiX® 10 Inch Abrasive Nylon Disc Brush with a tufted pattern and 80 grit size is engineered for high-productivity applications requiring efficient surface finishing. Crafted with CeramiX® filament and a durable composite molded construction, this brush offers aggressive brushing capabilities while ensuring longevity. Perfect for deburring cast parts, airframe components, blending grinding marks, and enhancing surface finishes, this brush provides precise performance and reliability. With optimal speed recommendations, troubleshooting guidance, and customizable options available, the CeramiX® brush meets the demands of institutional and government buyers seeking top-quality abrasive brushes for various applications.
Product Specifications
Accessories

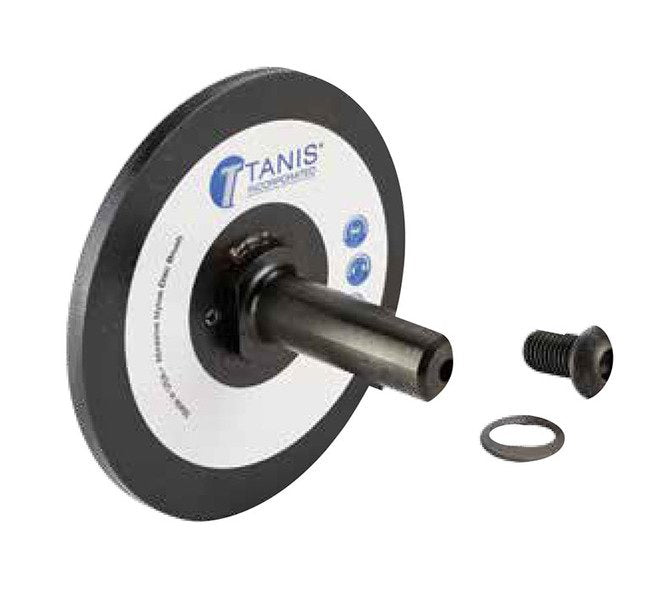

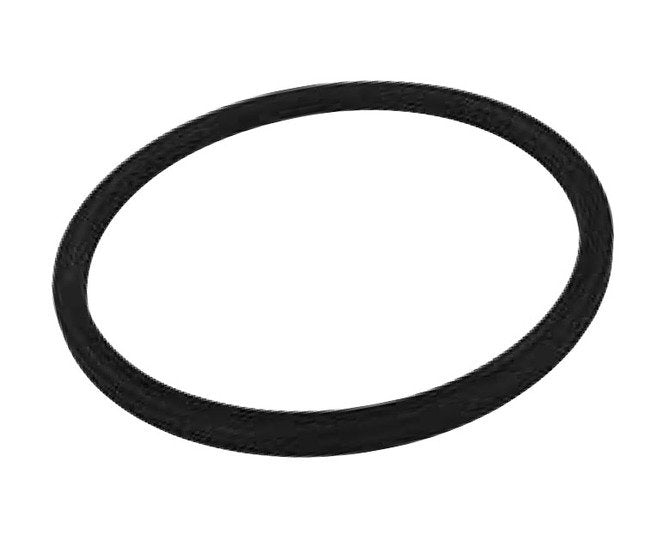

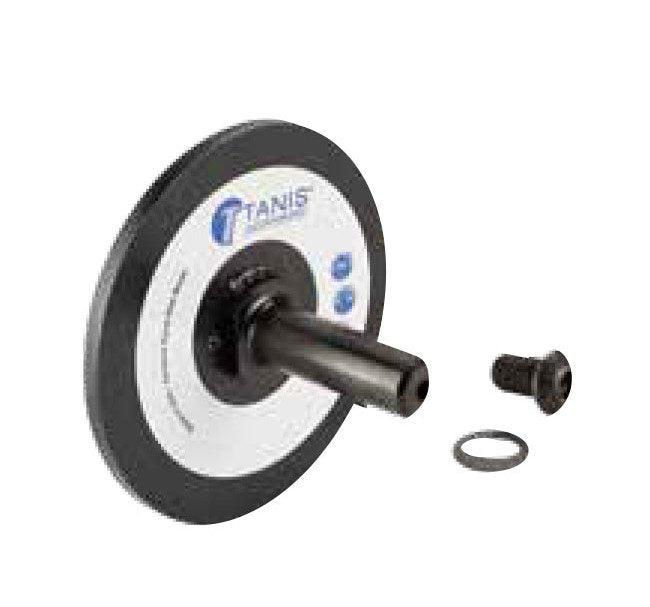

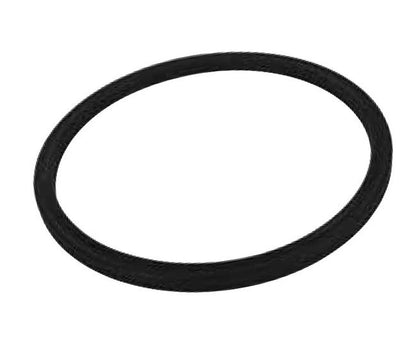

Disc Brush Drive ArborsDescription - Used to securely mount disc brushes for use in any type of milling or CNC machine. Drive arbor shaft is 3/4" diameter for use in any live tool holder. Drive arbor includes bolt and washer, part no. 35075.Drive Arbor Part Number - 35070For Brush Diameter - 10 in.Shaft Diameter - 3/4 in.Numbers of Locator Pins - 4Replacement Bolt/Washer KitPart Number - 35070Disc Brush BandsDescription - Apply to disc or end brushes to prevent flare and enhance aggressive action. To use, insert bands on disc where filament meets composite material.Part Number - 35094For Brush Diameter - 10 in.Ring Inside Diameter (ID) - 9 in.Ring Outside Diameter (OD) - 9-1/2 in.Ring Width - 0.275 in.Package Quantity - 3 per pack.
Additional Information
Abrasive nylon disc brushes work best at speeds allowing fairly deep penetration of the work piece into the brush filaments. Faster speeds do not typically work as well as slower speeds, since the maximum RPM listed on the brush is not the optimum working speed. A good rule of thumb is to stay below 2,500 SFPM in dry applications and 3,500 SFPM with coolant.Rotational DirectionOn the initial pass of the brush, rotation should be in the opposite direction of the cutting tool that created the burr. Brush should overlap edge of working piece by 1" minimum.Brush PathThe ideal brush path is in the opposite direction of travel from the cutting tool that created the burr. The brush path should also be longer than the cutting tool path, to a point where the trailing edge of the brush is effective on the end of the part. Lastly, to maximize the amount of filament that is striking the part, the center line of the brush should be offset from the center of the part.Penetration (Point of Contact)The abrasive action occurs when the sides of the brush filament slide across the part surface or edge of the part. When the correct balance between speed (RPM), penetration, dwell time and abrasive grit size are achieved, then optimum life and cut can be obtained. Recommended penetration rates for abrasive nylon disc brushes are from 0.075" to 0.100". This will allow long brush life with aggressive abrasive action.
Applications
Cast Part DeburringAirframe ComponentsDeburring Face-Milled PartsBlending Grinding MarksImproving Surface Finish
Feed Rate Feed Rate Aluminumnon Ferrous
35 to 50 in/min
Feed Rate Feed Rate Mild Steelcast Iron
25 to 30 in/min
Feed Rate Feed Rate Stainless Steelalloy Steels
12 to 18 in/min
Note
Additional diameters and grits available upon request.
Pattern
Use the Tufted Brush on contoured areas that need light to moderate surface finish. The bristle spacing allows for filament movement ideal for flat and varied surfaces.
Specifications Arbor Hole Size
7/8 in
Specifications Brush Diameter
10 in
Specifications Dry Application Starting Speed
700 to 800 rpm
Specifications Filament
CeramiX®
Specifications Filament Diameter
0.040 in
Specifications Maximum Speed
1750 rpm
Specifications Recommended Motor Size Based On A 1 Inch In Brush
1 hp
Specifications Size
80 grit
Specifications Trim Length
1-1/2 in
Troubleshooting Abrasive Nylon Brushes
Brush too aggressiveReduce filament diameter and/or grit sizeReduce surface speed by reducing RPMIncrease trim length and decrease fill densityIncrease feed rateUse a smaller diameter brushBrush not aggressive enoughIncrease filament density and/or grit sizeIncrease surface speed by increasing RPMDecrease trim lengthReduce feed rateUse a larger diameter brushBrush not conforming enough to partIncrease trim lengthReduce filament densityUse a smaller diameter brushReduce surface speed by reducing RPMReduce feed rateFinal finish too roughIncrease surface speed by increasing RPMUse a larger diameter brushUse a finer abrasive filamentUse a coolant or cutting oilUse a buffing compoundFinal finish too smoothReduce surface speed by reducing RPMUse a smaller diameter brushIncrease filament density and/or grit sizeFilament smearing/meltingReduce surface speed by reducing RPMDecrease brush diameterUse a coolant or lubricantMore action needed on edges parallel to brush axisReduce surface speed by reducing RPMReduce feed rateKeep longer brush contact on problem areaMore action needed on edges perpendicular to brush axisReduce surface speed by reducing RPMIncrease feed rateOscillate brush on problem areaBrush action not uniform enoughIncrease trim lengthReduce filament densityUse automated equipment for brush motionShort brush lifeIncrease filament densityReduce pressure/depth of interference
