CeramiX® 8" Shell Mill Holder Disc Brush - 80 Grit
CeramiX® 8" Shell Mill Holder Disc Brush - 80 Grit
SKU:ABR-a0c885
Achieve precise deburring and finishing with CeramiX® 8" Shell Mill Holder Disc Brush - 80 Grit, designed for CNC machining centers.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
CeramiX® 8" Shell Mill Holder Disc Brush - 80 Grit
$49.99
Quantity: 1
Claim Your Seller Account
CeramiX® 8" Shell Mill Holder Disc Brush - 80 Grit
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

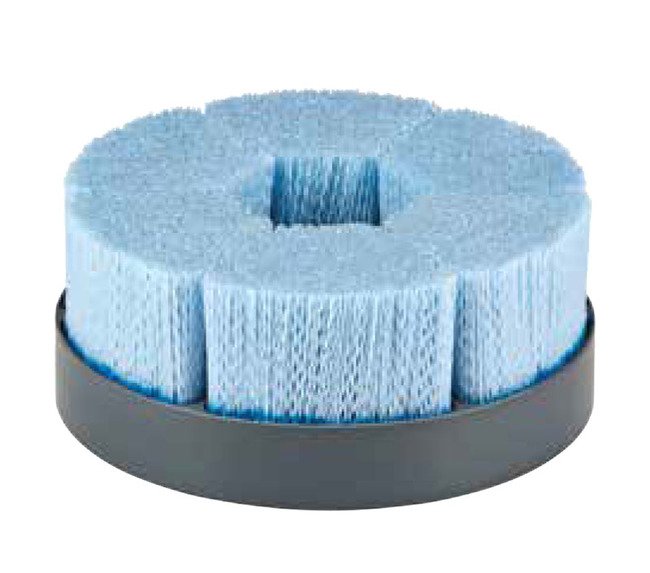

The CeramiX® 8-inch Shell Mill Holder Disc Brush with 80-grit filament diameter offers superior dimensional precision for deburring and finishing applications on flat surfaces. Designed for CNC machining centers, this high-density brush provides tough, aggressive performance to enhance metal finishing and blend rough edges on machined parts effectively. Equipped with a built-in keyway, this brush mounts seamlessly on standard shell mill holders, ensuring optimal performance and durability.
Product Specifications
Accessories
Disc Brush Drive ArborsDescription - Used to securely mount disc brushes for use in any type of milling or CNC machine. Drive arbor shaft is 3/4" diameter for use in any live tool holder. Drive arbor includes bolt and washer, part no. 35075.Drive Arbor Part Number - 35065For Brush Diameter - 8 in.Shaft Diameter - 3/4 in.Numbers of Locator Pins - 4Replacement Bolt/Washer KitPart Number - 35070Disc Brush BandsDescription - Apply to disc or end brushes to prevent flare and enhance aggressive action. To use, insert bands on disc where filament meets composite material.Part Number - 35092For Brush Diameter - 8 in.Ring Inside Diameter (ID) - 7 in.Ring Outside Diameter (OD) - 7-1/2 in.Ring Width - 0.275 in.Package Quantity - 3 per pack.
Applications
Cast Part DeburringAircraft ComponentsDeburring Face-Milled PartsBlending Grinding MarksImproving Surface Finish
Note

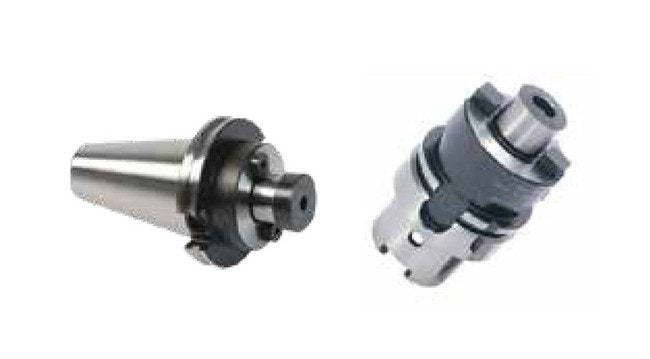

Additional diameters and grits available upon request.Both brush patterns feature shell mill mount–fits standard shell mill holders. (Holders are not included.)
Pattern
Apply on large flat surfaces that require tough aggressive performance. The great bristle density creates more deburring and finishing pressure.
Specifications Arbor Hole Size
1-1/4 in
Specifications Brush Diameter
8 in
Specifications Filament Diameter
0.055 in
Specifications Maximum Speed
2500 rpm
Specifications Size
80 grit
Specifications Trim Length
1-1/2 in
