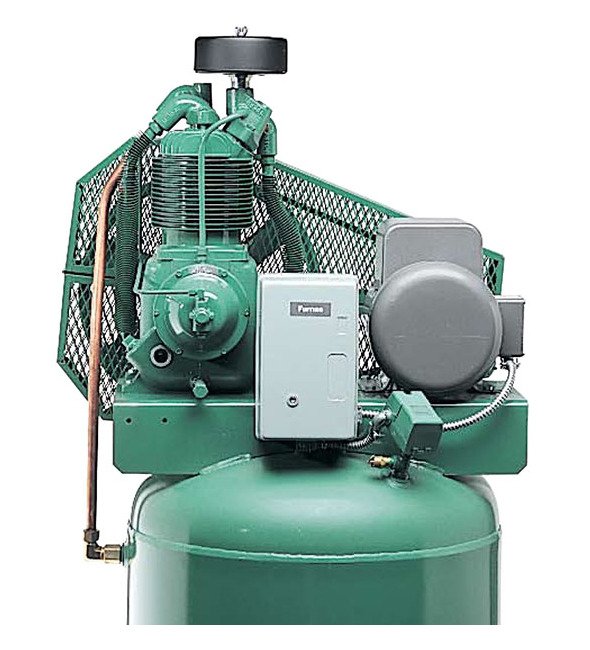

Experience unrivaled reliability and performance with the Champion® 4-3/8 Inch Bolt-Down R and PL Series Oil-Lubricated Air Compressor. Ideal for industrial applications, this compressor operates up to 250 psi in extreme duty environments. With features like slow-speed operation, domed pistons, and a 5-year warranty, it ensures long-lasting durability and ease of maintenance. Champion® sets the standard for quality and efficiency, delivering the compressed air solutions you can trust.
Product Specifications
Additional Information 0
Many options are available to help you develop a Champion® compressor package that exactly matches your specific operating requirements.With many models from which to choose in both single-stage and two-stage, we can match your needs exactly. These configurations, combined with a wide choice of options, provide all the components for a customized installation. They are available in both R-Series splash-lubricated and PL-Series pressure lubricated models.Loaded with rugged features, the R-Series splash-lubricated compressors deliver high performance, long life and tremendous value.The PL-Series compressor has been designed to operate in extreme duty applications and is also an alternative to an R-Series unit. Because the PL-Series can operate up to 250 psi, in remote locations or in off-level operations, it is a true industrial use compressor. Champion® is so confident in the way it has engineered and built its products, it offers a 5-year warranty on the compressor pump. The PL-Series features domed pistons, integral cylinder head, disc valves and an oil pump that provides lubricant to all crucial parts of the compressor. From its extra heavy-duty design to its ease of maintenance, the Champion® PL-Series exemplifies reliability, durability and quality.

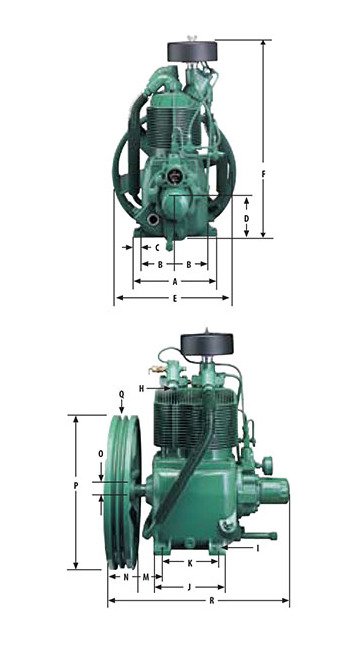

Bare Pump Dimensions Approximate Shipping Weight
125 lb
Bare Pump Dimensions Base Depth
7-1/2 in
Bare Pump Dimensions Base To Crank Ctr
5-1/2 in
Bare Pump Dimensions Base Width
10 in
Bare Pump Dimensions Bolt Down Depth
5-3/4 in
Bare Pump Dimensions Bolt Down Hole Diameter
15/32 in
Bare Pump Dimensions Bolt Down To Edge
5/8 in | 7/8 in
Bare Pump Dimensions Crank Diameter
1-5/16 in
Bare Pump Dimensions Flywheel Diameter
16-1/2 in
Bare Pump Dimensions Flywheel Grooves
2 V Belt
Bare Pump Dimensions Flywheel Width
2-1/2 in
Bare Pump Dimensions Hp Exhaust Opening Manifold Tubing
3/4 in
Bare Pump Dimensions Maximum Bolt Hole To Wheel
3 in
Bare Pump Dimensions Overall Depth
20 in
Bare Pump Dimensions Overall Height
23-1/4 in
Bare Pump Dimensions Overall Width
16-7/8 in

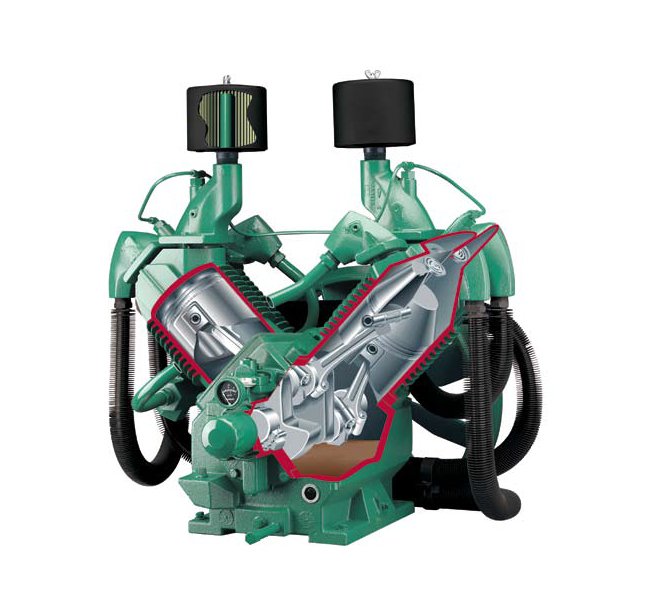

Pressure Lubricated Pl Series Babbitt Bearings
Replaceable bearing makes repairs easy and inexpensive.
Pressure Lubricated Pl Series Loadless Starting For Pl Series
Hydraulic unloader with-factory set pilot valve provides easy, loadless starts and low oil pressure protection for unattended operation.
Pressure Lubricated Pl Series Lubricant Filtration
An external spin on oil filter and an internal oil inlet screen protect internal components from damaging debris.
Pressure Lubricated Pl Series Oil Pressure Gauge
Mounted on the front of the compressor for an excellent view and easy pressure monitoring.
Pressure Lubricated Pl Series Positive Displacement Oil Pump
Provides lubricant to all critical areas of the compressor pump that require lubrication.
Pressure Lubricated Pl Series Pressure Lubrication
Crankshaft and connecting rod bearings are pressure lubricated for extended life.

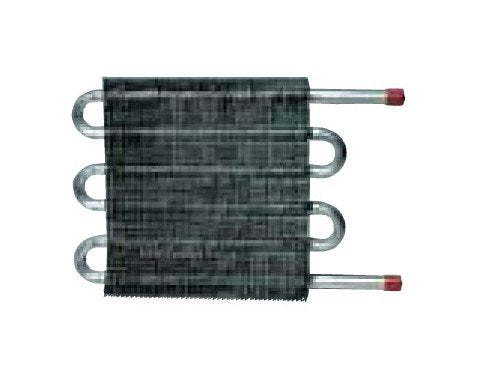

Quality Accessories Air Cooled Or Water Cooled Aftercooler
The factory mounted, heavy-duty, air-cooled aftercooler effectively reduces up to 65% of the moisture from discharged compressed air.

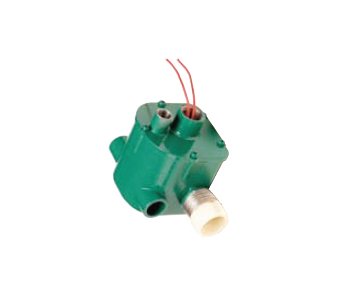

Quality Accessories Automatic Tank Drain
Pneumatic drain operates from a centrifugal unloader.

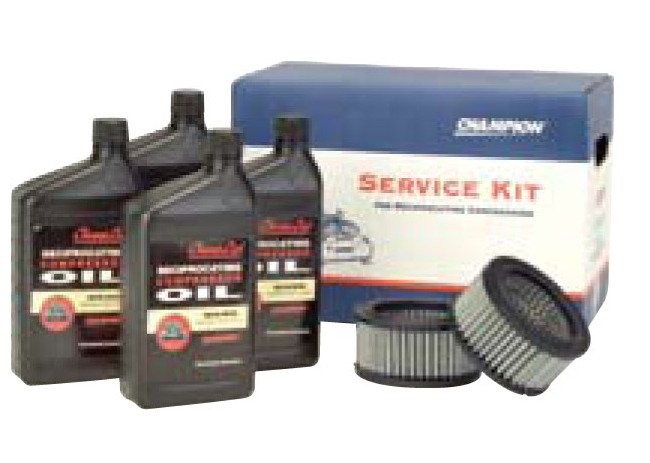

Quality Accessories Champion Compressor Lubricants
ChampLub lubricants are blended specifically for Champion® compressors for use in harsh compressor environments. They are sourced from extremely stable base stocks and enhanced with carefully selected additive packages to provide long life and superior protection. ChampLub lubricants are suitable for a variety of applications and are available as a mineral oil, synthetic or food-grade synthetic.Available in 55-gallon drums, five-gallon pails, one-gallon bottles and one-quart bottles.

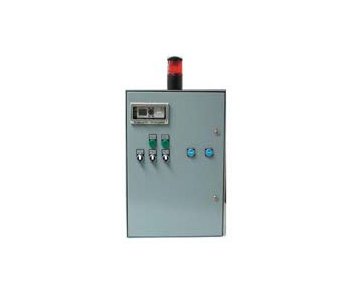

Quality Accessories Dpr Control Panel
The Microprocessed Duplex Relay Panel was created for controlling a duplex air compressor package. The controller includes visual maintenance and shut down alarms.

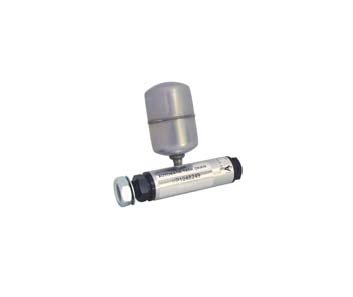

Quality Accessories Low Oil Level Monitor
Low Oil Level Monitor shuts down the unit when oil levels are below an adequate level. Prevents the unit from restarting if oil levels are not at an adequate level.

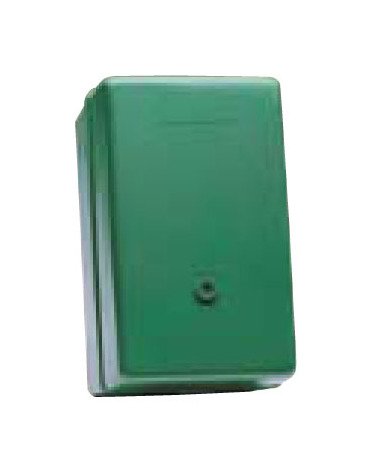

Quality Accessories Magnetic Starter Included As Standard On Mos
For thermal overload protection, a starter is required for units 3 HP and up. May be mounted or unmounted.
Quality Accessories Other Options
Power Monitor that shuts down unit in the event of single phasing, low voltage or phase reversalConstant Speed Control which prevents excessive motor start/stop cycles while saving energyDual Control will allow the compressor to run either in start/stop or constant speed modeNEMA 4 rated parts availableAlternate voltages and TEFC, ODPHE, TEFCHE Electric Motors

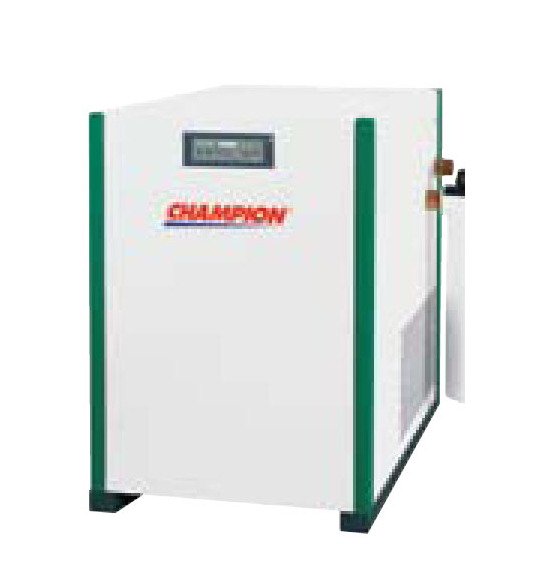

Quality Accessories Refrigerated Air Dryer
Cools compressed air to a 33º-39º dew point, eliminating additional downstream condensation in the air line. Normally, a dryer should be used in conjunction with an aftercooler. Refrigerated and desiccant dryer types are available.

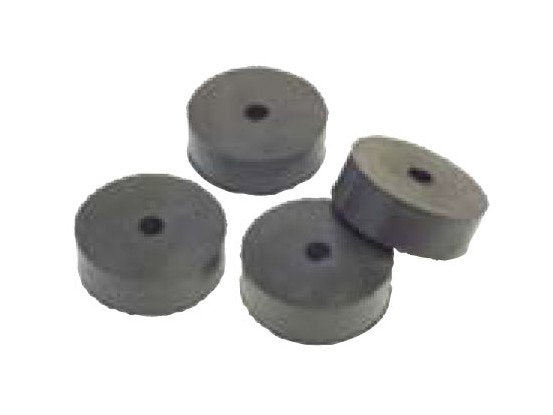

Quality Accessories Vibration Isolators
Isolates the compressor unit from the foundation or floor. Reduces noise and protects the unit from any out-of-level floor situation that could cause vibration and damage.
Specifications Applications
Automotive | Dry Cleaning | Industrial | Refineries | Service Fleets
Specifications Approximately Shipping Weight
125 lb
Specifications Bolt Down Width
4-3/8 in
Specifications Bore Diameter
2-1/2 in | 4-5/8 in
Specifications Brand
Champion®
Specifications Delivery At 125 Psi Rating
10.9 ft³/min | 19.1 ft³/min | 23.9 ft³/min
Specifications Oil Capacity
2 liq qt

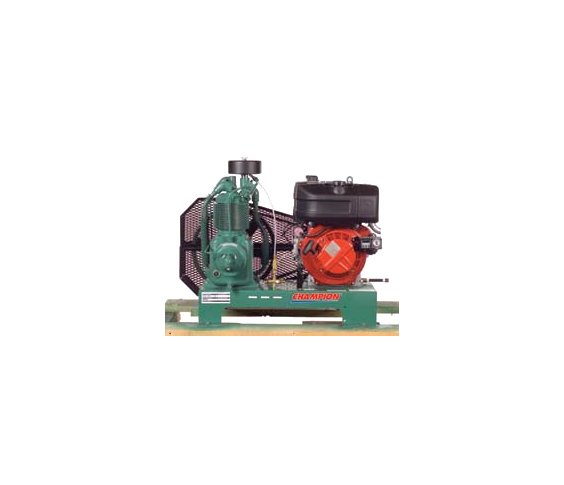

The Solution To Your Application Gasoline Or Diesel Engine Power
Truck and utility bed mounting design makes these compressors ideal for fleet and field service. Ideal for applications where electricity is not available.
