Champion Fiberglass® 1 1/2 Inch LB Conduit Body
Champion Fiberglass® 1 1/2 Inch LB Conduit Body
SKU:PVC-680ce1
Champion Fiberglass® LB Conduit Body: Superior strength and durability with flame retardant and watertight seal. Ideal for various applications.
Regular price
$25.99
Regular price
Sale price
$25.99
Unit price
per
Initiate Order
Champion Fiberglass® 1 1/2 Inch LB Conduit Body
$25.99
Quantity: 1
Claim Your Seller Account
Champion Fiberglass® 1 1/2 Inch LB Conduit Body
$25.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Champion Fiberglass® 1 1/2 Inch LB Conduit Body is a superior solution for aboveground conduit installations. Made from vinyl ester resin with high glass content, this conduit body boasts ultimate strength and durability. Certified flame retardant per UL 2515 and CSA C22.2 No. 2515, and halogen-free, it ensures safety and compliance. The included high-performance rubber gasket provides a watertight seal, and the stainless steel hardware adds to its robust construction. Ideal for a wide range of applications, this conduit body is the top choice for reliability and performance.

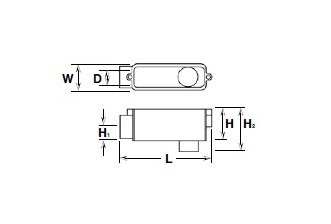

Product Specifications
Dimesional Attributes D
1.910 in | 48 mm
Dimesional Attributes H
2.875 in | 73 mm
Dimesional Attributes H1
1.188 in | 30 mm
Dimesional Attributes H2
4.875 in | 124 mm
Dimesional Attributes L
9.000 in | 229 mm
Dimesional Attributes Nominal Size
1 1/2 in
Dimesional Attributes W
2.540 in | 64 mm
Features
Most Commonly used.
Specifications Brand
Champion Fiberglass®, Inc.
Specifications Industry Standardscertifications
Underwriters Laboratories (UL) 2515, Canadian Standards Association (CSA) C22.2 No. 2515
Specifications Material
Vinyl Ester Resin with High Glass Content
Specifications Style
LB
Specifications Type
Iron Pipe Size (IPS) Aboveground Conduit Body
Specifications Volume Capacity
32.00 in³ | 524 cm³
Specifications Wall Thickness
Standard Wall
Specifications Weight
0.50 kg | 1.10 lb
