Champion Fiberglass® 2 Inch IPS Aboveground Stop Coupling with Gasket Joint

Name: Champion Fiberglass® 2 Inch IPS Aboveground Stop Coupling with Gasket Joint
Brand: Colonial Teltek
SKU: PVC-a3986c
Price: 29.99 USD
Availability: OutOfStock

SKU:PVC-a3986c

Enhance your conduit system with the Champion Fiberglass® 2 Inch IPS Stop Coupling for superior water-tightness and reliability.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Upgrade your conduit system with the Champion Fiberglass® 2 Inch IPS Aboveground Stop Coupling with Gasket Joint. This stop coupling features a triple seal gasket joint for exceptional water-tightness, providing a pull-out strength of 2,000 lbs when combined with the interference joint. Designed with industry-leading standards in mind, the Champion Fiberglass® stop coupling ensures durability and reliability, making it a trusted choice for a wide range of applications.

Product Specifications

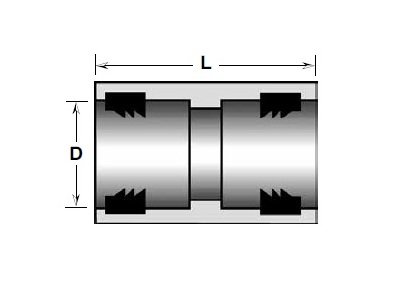

Dimesional Attributes D

2.40 in | 61 mm

Dimesional Attributes L

8 in | 203 mm

Dimesional Attributes Nominal Size

2 in

Features

Most Commonly used.

Gasket Joint Triple Seal

The gasket joint system consists of an integral bell and spigot. The belled end has a triple seal gasket in addition to the interference joint. The triple seal gasket fits into a permanent groove formed during the manufacturing of the conduit. Because of this design, thermoplastic retainer rings, which often fall out during cold weather, are not necessary. The triple seal gasket provides a water tight seal. When properly installed, the triple seal gasket in combination with the interference joint has a pull out strength of 2,000 lbs. Triple seal gasket without interference joint (e.g. after a field cut) has a pull out strength of 500 lbs.

Specifications Brand

Champion Fiberglass®, Inc.

Specifications Color

Black

Specifications Conduit Type

Coupling

Specifications Industry Standardscertifications

Underwriters Laboratories (UL)

Specifications Type

Iron Pipe Size (IPS) Aboveground Stop Coupling with Gasket Joint

Specifications Wall Thickness

Standard Wall

Specifications Weight

0.32 kg | 0.70 lb

Champion Fiberglass® 2 Inch IPS Aboveground Stop Coupling with Gasket Joint
