Champion Fiberglass® 3/4 Inch Standard Wall Type LB Conduit Body

Name: Champion Fiberglass® 3/4 Inch Standard Wall Type LB Conduit Body
Brand: Colonial Teltek
SKU: PVC-4e7455
Price: 24.99 USD
Availability: OutOfStock

SKU:PVC-4e7455

Champion Fiberglass® LB Conduit Body - Flame Retardant, Water-Tight Seal, Stainless Steel Hardware

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Champion Fiberglass® 3/4 Inch Standard Wall Type LB Conduit Body is expertly crafted using vinyl ester resin with high glass content, ensuring ultimate strength and durability. This conduit body is flame retardant according to UL 2515 and CSA C22.2 No. 2515, halogen-free, and equipped with a high-performance rubber gasket for a watertight seal. With stainless steel hardware, it provides a secure solution for enclosing and protecting conduit connections. Ideal for various applications, this LB conduit body meets the most stringent industry standards for safety and performance.

Product Specifications

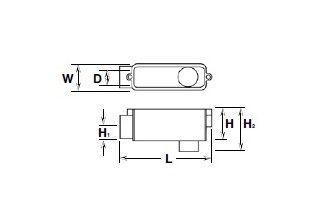

Dimesional Attributes D

1.075 in | 27 mm

Dimesional Attributes H

2.375 in | 60 mm

Dimesional Attributes H1

1.000 in | 25 mm

Dimesional Attributes H2

3.900 in | 99 mm

Dimesional Attributes L

7.375 in | 187 mm

Dimesional Attributes Nominal Size

3/4 in

Dimesional Attributes W

1.840 in | 47 mm

Features

Most Commonly used.

Specifications Brand

Champion Fiberglass®, Inc.

Specifications Industry Standardscertifications

Underwriters Laboratories (UL) 2515, Canadian Standards Association (CSA) C22.2 No. 2515

Specifications Material

Vinyl Ester Resin with High Glass Content

Specifications Style

Specifications Type

Iron Pipe Size (IPS) Aboveground Conduit Body

Specifications Volume Capacity

13.90 in³ | 228 cm³

Specifications Wall Thickness

Standard Wall

Specifications Weight

0.32 kg | 0.70 lb

Champion Fiberglass® 3/4 Inch Standard Wall Type LB Conduit Body
