Champion Fiberglass® 3-Inch Extra Heavy Wall Bullet Resistant Expansion Joint
Champion Fiberglass® 3-Inch Extra Heavy Wall Bullet Resistant Expansion Joint
SKU:BRI-86e3c0
Get superior protection with Champion Fiberglass® 3-Inch Bullet Resistant Expansion Joint. UL-compliant for safety.
Regular price
$99.99
Regular price
Sale price
$99.99
Unit price
per
Initiate Order
Champion Fiberglass® 3-Inch Extra Heavy Wall Bullet Resistant Expansion Joint
$99.99
Quantity: 1
Claim Your Seller Account
Champion Fiberglass® 3-Inch Extra Heavy Wall Bullet Resistant Expansion Joint
$99.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Champion Fiberglass® 3-Inch Nominal Size Extra Heavy Wall Single Expansion Joint with O-Ring offers unparalleled protection for conduit systems in demanding environments. Designed for the highest level of physical protection, this ID aboveground expansion joint complies with Underwriters Laboratories (UL) standards. With a bullet-resistant extra heavy wall construction and a unique black color, it ensures durability and visibility. Easy to install with guidelines for various duct lengths, each expansion joint features a yellow line for proper installation. Ideal for Class 1 Div 2 & Class 1 Zone 2 Applications.
Product Specifications
Application
Highest level of physical protection, Class 1 Div 2 & Class 1 Zone 2 Applications

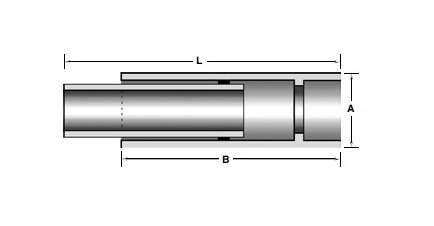

Dimesional Attributes A
4.0000 in | 102 mm
Dimesional Attributes B
12 in | 305 mm
Dimesional Attributes L Max
23 in | 584 mm
Dimesional Attributes L Min
15 in | 381 mm
Dimesional Attributes Nominal Size
3 in
Installation Of Expansion Joints
When the duct is shorter than 50 ft., no Expansion Joint neededWhen the duct is between 50 ft. up to 200 ft., install one Expansion Joint at the mid pointIf the duct is longer than 200 ft., install one Expansion Joint every 200 ft. apart
Note
All Expansion Joints have a yellow line on the nipple end of the joint for proper installation.
Specifications Brand
Champion Fiberglass®, Inc.
Specifications Color
Black
Specifications Industry Standardscertifications
Underwriters Laboratories (UL)
Specifications Style
Expansion
Specifications Type
ID Aboveground Single Expansion Joint with O-Ring
Specifications Wall Thickness
Extra Heavy Wall, Bullet Resistant
Specifications Weight
1.90 kg | 4.19 lb
