Champion Fiberglass® 5 Inch IPS Aboveground Alignment/Expansion Fitting with O-Ring

Champion Fiberglass® 5 Inch IPS Aboveground Alignment/Expansion Fitting with O-Ring

BRI-64e80f

Durable Champion Fiberglass® 5 Inch Alignment/Expansion Fitting for bridge conduit systems. Corrosion-resistant with UL certification.

$59.99
$59.99
Sale

Initiate Order

Champion Fiberglass® 5 Inch IPS Aboveground Alignment/Expansion Fitting with O-Ring

Champion Fiberglass® 5 Inch IPS Aboveground Alignment/Expansion Fitting with O-Ring

$59.99

Quantity: 1

Claim Your Seller Account

Champion Fiberglass® 5 Inch IPS Aboveground Alignment/Expansion Fitting with O-Ring

Champion Fiberglass® 5 Inch IPS Aboveground Alignment/Expansion Fitting with O-Ring

$59.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Champion Fiberglass® 5 Inch IPS Aboveground Alignment/Expansion Fitting with O-Ring is a durable and corrosion-resistant solution for bridge conduit systems. Designed for maximum protection in 5" & 6" applications, this fitting features medium wall thickness, black color, and stainless steel clamps for added longevity. With UL certification, this fitting ensures reliability and safety in diverse installations. Easy to install and maintain, it comes with clear guidelines for expansion joint placement based on duct length, enhancing efficiency and performance.

Product Specifications

Application
Used for more protection in 5" & 6"

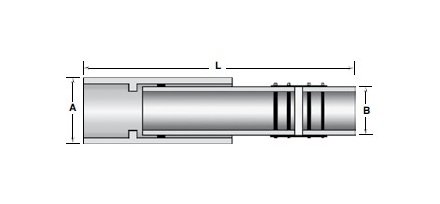

Dimesional Attributes A
5.79 in | 147 mm
Dimesional Attributes B
5.6 in | 142 mm
Dimesional Attributes L Max
51 in | 1,295 mm
Dimesional Attributes L Min
37 in | 940 mm
Dimesional Attributes Nominal Size
5 in
Features
Most Commonly used.
Installation Of Expansion Joints
When the duct is shorter than 50 ft., no Expansion Joint neededWhen the duct is between 50 ft. up to 200 ft., install one Expansion Joint at the mid pointIf the duct is longer than 200 ft., install one Expansion Joint every 200 ft. apart
Note
All Expansion Joints have a yellow line on the nipple end of the joint for proper installation.
Specifications Brand
Champion Fiberglass®, Inc.
Specifications Color
Black
Specifications Industry Standardscertifications
Underwriters Laboratories (UL)
Specifications Style
Alignment/Expansion
Specifications Type
Iron Pipe Size (IPS) Aboveground Alignment/Expansion Fitting with O-Ring
Specifications Wall Thickness
Medium Wall
Specifications Weight
3.81 kg | 8.40 lb
