Champion Fiberglass® Socket x Socket Single Expansion Joint with O-Ring - Fiberglass Conduit Fitting, 2 in
Champion Fiberglass® Socket x Socket Single Expansion Joint with O-Ring - Fiberglass Conduit Fitting, 2 in
SKU:PVC-dafdf0
Enhance conduit systems with Champion Fiberglass® Expansion Joint: UL-certified, O-Ring sealed for superior protection.
Regular price
$45.99
Regular price
Sale price
$45.99
Unit price
per
Initiate Order
Champion Fiberglass® Socket x Socket Single Expansion Joint with O-Ring - Fiberglass Conduit Fitting, 2 in
$45.99
Quantity: 1
Claim Your Seller Account
Champion Fiberglass® Socket x Socket Single Expansion Joint with O-Ring - Fiberglass Conduit Fitting, 2 in
$45.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your conduit system with the Champion Fiberglass® Socket x Socket Single Expansion Joint featuring ID Aboveground design and O-Ring for superior sealing. This extra heavy wall fitting ensures maximum physical protection suitable for Class 1 Div 2 & Class 1 Zone 2 applications. Meeting Underwriters Laboratories (UL) standards, this champion in conduit fittings guarantees durability and reliability. Install at intervals based on duct length per industry guidelines to enhance performance and longevity.
Product Specifications
Application
Highest level of physical protection, Class 1 Div 2 & Class 1 Zone 2 Applications

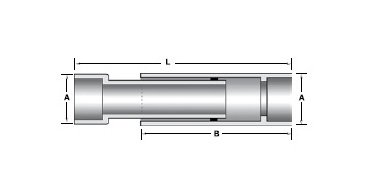

Dimesional Attributes A
3.000 in | 76 mm
Dimesional Attributes B
12 in | 305 mm
Dimesional Attributes L Max
26 in | 660 mm
Dimesional Attributes L Min
18 in | 457 mm
Dimesional Attributes Nominal Size
2 in
Installation Of Expansion Joints
When the duct is shorter than 50 ft., no Expansion Joint neededWhen the duct is between 50 ft. up to 200 ft., install one Expansion Joint at the mid pointIf the duct is longer than 200 ft., install one Expansion Joint every 200 ft. apart
Note
All Expansion Joints have a yellow line on the nipple end of the joint for proper installation.
Specifications Brand
Champion Fiberglass®, Inc.
Specifications Color
Black
Specifications Industry Standardscertifications
Underwriters Laboratories (UL)
Specifications Style
Expansion
Specifications Type
ID Aboveground Socket x Socket Single Expansion Joints with O-Ring
Specifications Wall Thickness
Extra Heavy Wall, Bullet Resistant
Specifications Weight
1.64 kg | 3.62 lb
