Champion Fiberglass® T Conduit Bodies
Champion Fiberglass® T Conduit Bodies
SKU:BRI-973514
Premium Champion Fiberglass® Type T Conduit Bodies with flame-retardant resin for superior strength and watertight sealing. Ideal for industrial use.
Regular price
$45.99
Regular price
Sale price
$45.99
Unit price
per
Initiate Order
Champion Fiberglass® T Conduit Bodies
$45.99
Quantity: 1
Claim Your Seller Account
Champion Fiberglass® T Conduit Bodies
$45.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Champion Fiberglass® Type T Conduit Bodies are expertly crafted using compression molding technology for unparalleled strength. Constructed from vinyl ester resin with a high glass content, these conduit bodies are flame-retardant per UL 2515 and CSA C22.2 No. 2515 standards, in addition to being halogen-free. Equipped with high-performance rubber gaskets, they ensure a watertight seal between the cover and body. The supplied stainless steel hardware adds to their durability, making them ideal for various industrial applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

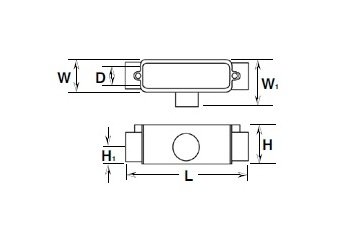

Dimesional Attributes D
4.508 in | 114 mm
Dimesional Attributes H
6.000 in | 152 mm
Dimesional Attributes H1
3.000 in | 76 mm
Dimesional Attributes L
21.750 in | 552 mm
Dimesional Attributes Nominal Size
4 in
Dimesional Attributes W
5.875 in | 149 mm
Dimesional Attributes W1
8.750 in | 222 mm
Features
Most Commonly used.
Specifications Brand
Champion Fiberglass®, Inc.
Specifications Industry Standardscertifications
Underwriters Laboratories (UL) 2515, Canadian Standards Association (CSA) C22.2 No. 2515
Specifications Material
Vinyl Ester Resin with High Glass Content
Specifications Style
T
Specifications Type
Iron Pipe Size (IPS) Aboveground Stop Coupling Conduit Body
Specifications Volume Capacity
425.00 in³ | 6,964 cm³
Specifications Wall Thickness
Standard Wall
Specifications Weight
1.92 kg | 4.24 lb
