Champion Fiberglass® TB Conduit Bodies - Vinyl Ester Resin, UL & CSA Certified, 2-inch IPS

Champion Fiberglass® TB Conduit Bodies - Vinyl Ester Resin, UL & CSA Certified, 2-inch IPS

BRI-be7acc

Champion Fiberglass® TB Conduit Bodies - High Strength, UL & CSA Certified, Ideal for Aboveground Conduit Systems

$59.99
$59.99
Sale

Initiate Order

Champion Fiberglass® TB Conduit Bodies - Vinyl Ester Resin, UL & CSA Certified, 2-inch IPS

Champion Fiberglass® TB Conduit Bodies - Vinyl Ester Resin, UL & CSA Certified, 2-inch IPS

$59.99

Quantity: 1

Claim Your Seller Account

Champion Fiberglass® TB Conduit Bodies - Vinyl Ester Resin, UL & CSA Certified, 2-inch IPS

Champion Fiberglass® TB Conduit Bodies - Vinyl Ester Resin, UL & CSA Certified, 2-inch IPS

$59.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

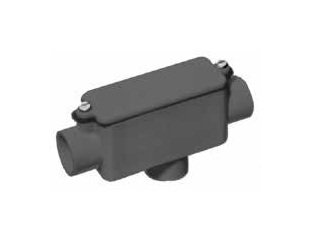

Upgrade your conduit system with Champion Fiberglass® Type TB Conduit Bodies, featuring compression-molded vinyl ester resin for superior strength and flame retardancy. These conduit bodies meet UL 2515 and CSA C22.2 No. 2515 standards, ensuring reliable performance. Each body includes a high-performance rubber gasket for a watertight seal and comes with stainless steel hardware. With a volume capacity of 70.75 in³ and dimensions of 13.375" x 4.000" x 3.040", these conduit bodies are the ideal choice for durability and compliance in aboveground installations.

Product Specifications

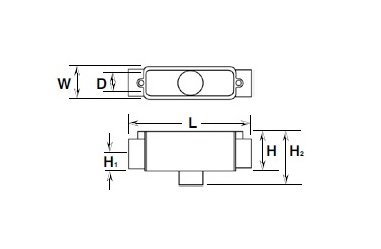

Dimesional Attributes D
2.390 in | 61 mm
Dimesional Attributes H
4.000 in | 102 mm
Dimesional Attributes H1
1.812 in | 46 mm
Dimesional Attributes H2
6.687 in | 170 mm
Dimesional Attributes L
13.375 in | 340 mm
Dimesional Attributes Nominal Size
2 in
Dimesional Attributes W
3.040 in | 77 mm
Features
Most Commonly used.
Specifications Brand
Champion Fiberglass®, Inc.
Specifications Industry Standardscertifications
Underwriters Laboratories (UL) 2515, Canadian Standards Association (CSA) C22.2 No. 2515
Specifications Material
Vinyl Ester Resin with High Glass Content
Specifications Style
TB
Specifications Type
Iron Pipe Size (IPS) Aboveground Conduit Body
Specifications Volume Capacity
70.75 in³ | 1,160 cm³
Specifications Wall Thickness
Standard Wall
Specifications Weight
1.27 kg | 2.80 lb
