CHE Series Metallized Film Capacitors - 0.33 µF, 700V
CHE Series Metallized Film Capacitors - 0.33 µF, 700V
SKU:MET-22a727
High-performance CHE Series Metallized Film Capacitors for reliable power management. 0.33 µF, 700V.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
CHE Series Metallized Film Capacitors - 0.33 µF, 700V
$29.99
Quantity: 1
Claim Your Seller Account
CHE Series Metallized Film Capacitors - 0.33 µF, 700V
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

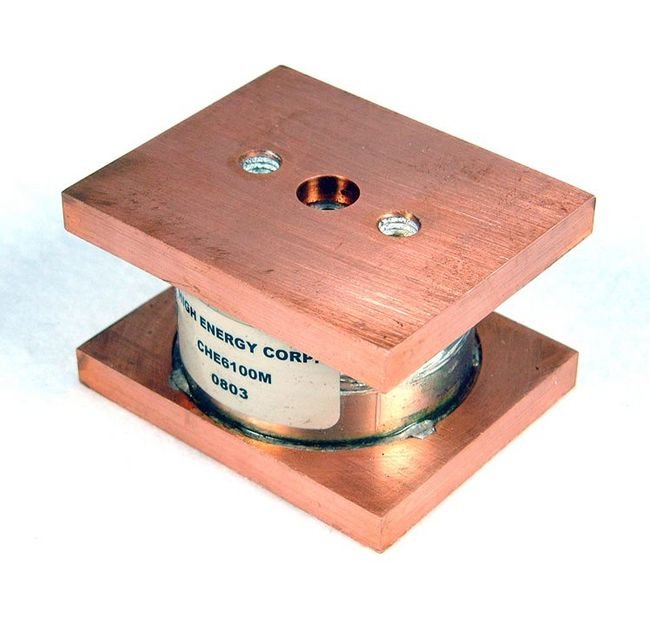

The CHE Series Metallized Film Capacitors deliver exceptional performance with a capacitance of 0.33 µF and a working voltage of 700 VRMS. Designed for reliability, these capacitors feature a high capacitance range of 0.2 to 2.0 µF with a capacitance tolerance of ±10%, making them ideal for a variety of applications. Operating at temperatures up to +90 ºC and conduction-cooled by bus bars, these capacitors ensure stable performance in demanding environments. With a compact size of 2 3/4 x 2 1/4 x 2 5/8 in and a weight of 0.5 kg, they offer versatility and ease of integration.
Product Specifications
Specifications Cap
0.33 µF
Specifications Capacitance Range
0.2 to 2.0 µF Standard
Specifications Capacitance Tolerance
±10% Standard
Specifications Cooling Method
Conduction-cooled by bus bars

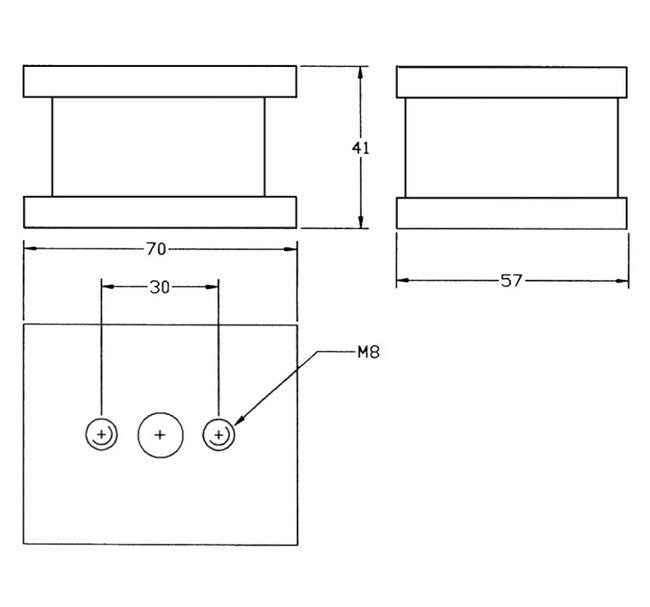

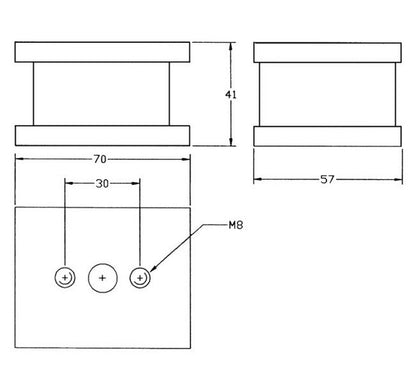

Specifications Dimensions
2 3/4 x 2 1/4 x 2 5/8 in | 70 x 57 x 41 mm
Specifications Dissipation Factor
0.1% Maximum
Specifications Fh
448 kHz
Specifications Fl
320 kHz
Specifications Fmax
700 kHz
Specifications Imax Rms
550 A
Specifications Operating Temperature
Up to +90 ºC
Specifications Smax
325 kV·A
Specifications Stray Inductance
Less than 5 nH
Specifications Vmax Rms
700 V
Specifications Weight
0.5 kg | 1.1 lb
