Check-All® 1/2" WV Style Wafer Insert Check Valve
Check-All® 1/2" WV Style Wafer Insert Check Valve
SKU:WVS-a588a6
High-quality 1/2" Check Valve for ANSI flanges, durable 316 Stainless Steel, 0.500 psi cracking pressure, CE and ISO certified.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
Check-All® 1/2" WV Style Wafer Insert Check Valve
$129.99
Quantity: 1
Claim Your Seller Account
Check-All® 1/2" WV Style Wafer Insert Check Valve
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

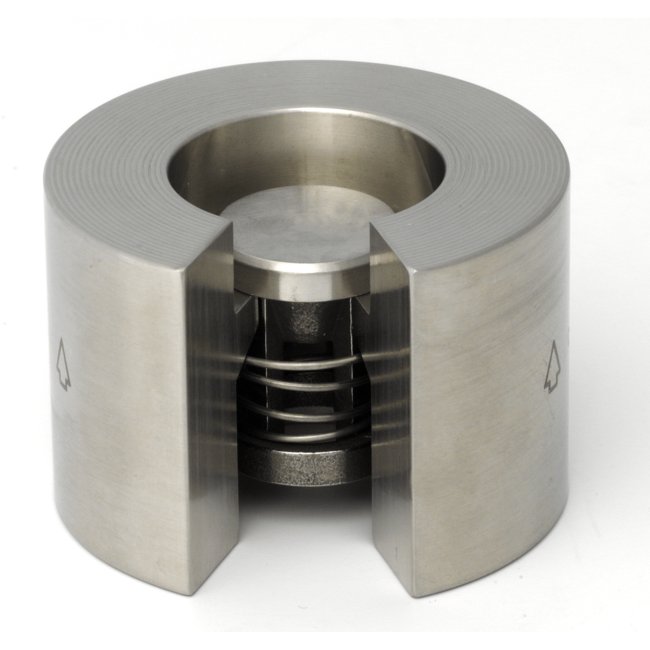

The Check-All® 1/2" WV Style Wafer Insert Check Valve is a versatile valve designed to seamlessly fit between ANSI flanges, offering quick installation and removal in rigid piping applications. This valve boasts a robust 316 Stainless Steel construction, ensuring durability and reliability in various industrial settings. With a standard cracking pressure of 0.500 psi and multiple seat material options, including Buna-N and PTFE, this valve provides exceptional performance as a low pressure relief valve or vacuum breaker. Certified to meet European Conformity (CE) PED and ISO 9001 standards, this valve is a dependable choice for a wide range of applications.
Product Specifications
Note
Made in USA.
Specifications Body Material
316 Stainless Steel = SS | 316L Stainless Steel = SS | Alloy 20 = A2 | Alloy B = HB | Alloy C-276 = HC | Brass = BR | Carbon Steel = CS | Monel® 400 or Alloy R405 = MO | Titanium = TI
Specifications Certifications
European Conformity (CE) PED 2014/68/EU Complaint | International Organization for Standardization (ISO 9001) Certified
Specifications Nominal Pipe Size
1/2 in
Specifications Non Shock Pressure Rating
American National Standards Institute (ANSI) Class 150 to 2500
Specifications Non Shock Pressure Rating At 100 Degree Fahrenhei
1500 psig
Specifications Non Shock Pressure Rating For Brass Valves
American National Standards Institute (ANSI) Class 150 - 300
Specifications Note For Standard Cracking Pressure
0.500 psi is the only standard cracking pressure for spring materials other than Stainless Steel.
Specifications Seat Material
"Metal-to-Metal" = MT | Aflas® = AS | Buna-N = BN | Ethylene Propylene Diene Monomer (EPDM) = EP (EP seats not recommended for use with Carbon Steel valves.) | Fluoro-Elastomer (FKM) = VT | Neoprene = NE | Perfluoroelastomer = KZ | Polytetrafluoroethylene (PTFE) = TF
Specifications Size Code
D
Specifications Special Options
T = FEP Encapsulated Spring (Contact the factory for more options)
Specifications Spring Material
17-7PH Stainless Steel = PH | 316 Stainless Steel = SS | Alloy C-276 = HC | Inconel® X750 or Alloy X750 = IX | Monel® 400 = MO | Titanium = TI
Specifications Standard Cracking Pressure
0.500 psi
Specifications Valve Style
WV
