Check-All® 1/2" WV Style Wafer Insert Check Valve

Name: Check-All® 1/2" WV Style Wafer Insert Check Valve
Brand: Check-All Valve Mfg. Co.
SKU: WVS-404dcc
Price: 129.99 USD
Availability: OutOfStock

SKU:WVS-404dcc

High-quality 1/2" WV Style Wafer Insert Check Valve with 3.50 psi standard cracking pressure, ideal for rigid piping applications.

$129.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

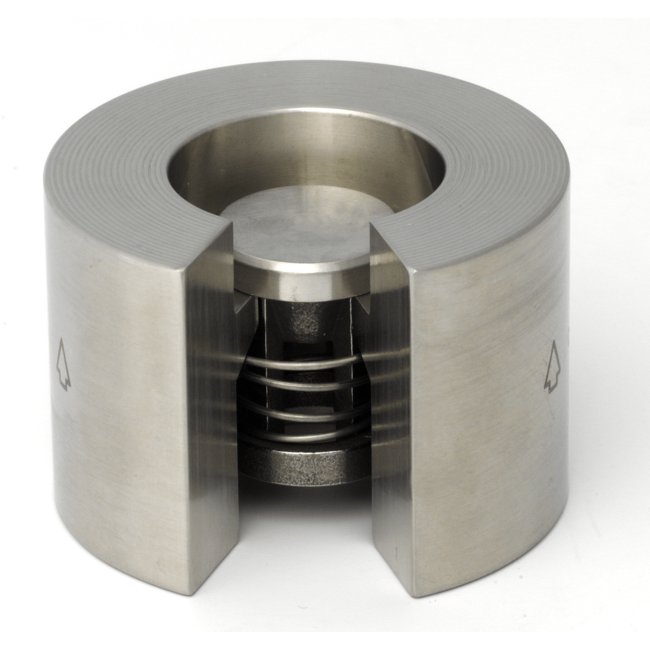

The Check-All® 1/2" WV Style Wafer Insert Check Valve is a precision-engineered valve designed to fit seamlessly between ANSI flanges. Its drop-in body allows for swift installation and removal in rigid piping applications. Made in the USA, this valve boasts a durable 316 Stainless Steel construction and a standard cracking pressure of 3.50 psi. With options for various seat materials and spring settings, it offers versatility for different applications. Meeting ANSI Class 150 to 2500 standards, this valve is suitable for low-pressure relief and vacuum breaker functions.

Product Specifications

Note

Made in USA.

Specifications Body Material

Specifications Certifications

European Conformity (CE) PED 2014/68/EU Complaint | International Organization for Standardization (ISO 9001) Certified

Specifications Nominal Pipe Size

1/2 in

Specifications Non Shock Pressure Rating

American National Standards Institute (ANSI) Class 150 to 2500

Specifications Non Shock Pressure Rating At 100 Degree Fahrenhei

1500 psig

Specifications Non Shock Pressure Rating For Brass Valves

American National Standards Institute (ANSI) Class 150 - 300

Specifications Seat Material

Specifications Size Code

Specifications Special Options

T = FEP Encapsulated Spring (Contact the factory for more options)

Specifications Spring Material

Specifications Standard Cracking Pressure

3.50 psi

Specifications Valve Style

Check-All® 1/2" WV Style Wafer Insert Check Valve
