Check-All® 1.5x1.25 NPT Bushing Check Valve with 3.50 psi Standard Cracking Pressure
Check-All® 1.5x1.25 NPT Bushing Check Valve with 3.50 psi Standard Cracking Pressure
SKU:BUA-6d70cb
High-quality 1.5x1.25 NPT Bushing Check Valve with 3.50 psi Cracking Pressure
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
Check-All® 1.5x1.25 NPT Bushing Check Valve with 3.50 psi Standard Cracking Pressure
$129.99
Quantity: 1
Claim Your Seller Account
Check-All® 1.5x1.25 NPT Bushing Check Valve with 3.50 psi Standard Cracking Pressure
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

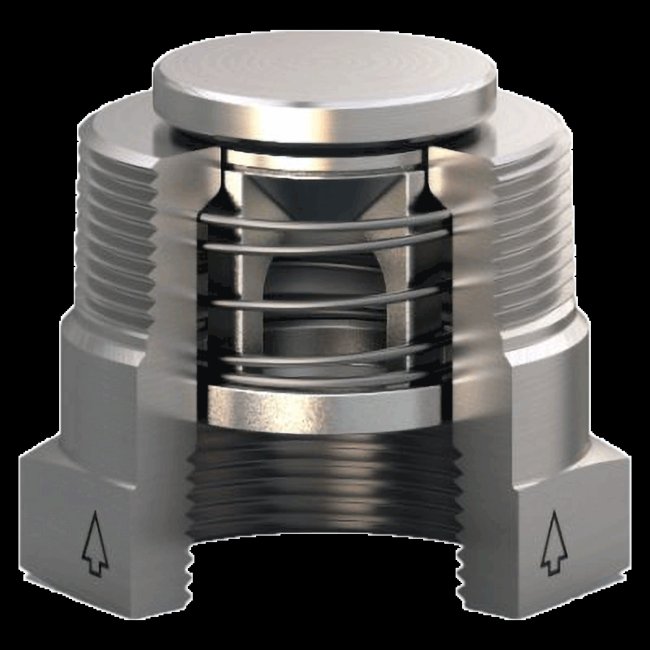

The Check-All® 1.5x1.25 NPT Bushing Check Valve is a versatile solution suitable for various service applications. Constructed with high-quality 316 Stainless Steel, it ensures durability and reliability. With a low-pressure drop and the ability to function as a relief valve or vacuum breaker, this valve offers optimal performance. Its 'Metal-to-Metal' seat material and 3000 psig non-shock pressure rating at 100°F make it a dependable choice for critical systems. This valve, manufactured in the USA, adheres to ISO 9001 standards.
Product Specifications
Additional Information

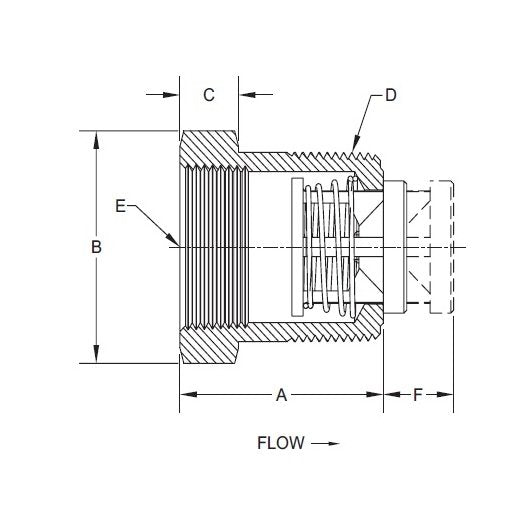

The bushing thread sizes are designated by two sets of numbers; the first being the male thread, the second the female thread. NPT threads are per ASME B1.20.1. Also available with ISO 7 "R" (R male x Rp female) threads (BR).The Bushing Check Valve (BU, BR) is a spring loaded check valve with a standard pipe bushing housing. The valve is adaptable to many types of service applications. It has very little restriction and produces a low-pressure drop. It can be used quite effectively in systems where flow and pressure drop are critical by the use of a reducer coupling. This spring check valve also makes an excellent vacuum breaker. The high flow rate insures maximum effectiveness for vacuum breaker service. By reversing the direction of flow it can also be used as a low-pressure relief valve.
Note
Made in USA.
Specifications Body Material
316 Stainless Steel = SS | Alloy 20 = A2 | Alloy B = HB | Alloy C-276 = HC | Brass = BR | Carbon Steel = CS | Monel® 400 or Alloy R405 = MO | Titanium = TI
Specifications Body Material Availability
316 Stainless Steel (SS) - Standard | Alloy 20 (A2) - Semi-Standard | Alloy B (HB) - Contact the factory for these or other materials | Alloy C-276 (HC) - Semi-Standard | Brass (BR) - Standard | Carbon Steel (CS) - Standard | Monel® 400 or Alloy R405 - Semi-Standard
Specifications Certifications
European Conformity (CE) PED 2014/68/EU Complaint | International Organization for Standardization (ISO 9001) Certified
Specifications Nominal Pipe Size
1-1/2 x 1-1/4 in
Specifications Non Shock Pressure Rating At 100 Degree Fahrenhei
3000 psig
Specifications Note For Material
Listed above are the most common material selections. Please contact the factory for additional options.
Specifications Seat Material
"Metal-to-Metal" = MT | Aflas® = AS | Buna-N = BN | Ethylene Propylene Diene Monomer (EPDM) = EP (EP seats not recommended for use with Carbon Steel valves.) | Fluoro-Elastomer (FKM) = VT | Neoprene = NE | Perfluoroelastomer = KZ | Polytetrafluoroethylene (PTFE) = TF
Specifications Size Code
J
Specifications Special Options
T = FEP Encapsulated Spring (Contact the factory for more options)
Specifications Spring Material
17-7PH Stainless Steel = PH | 316 Stainless Steel = SS | Alloy 400 or Monel® = MO | Alloy C-276 = HC | Inconel® X750 or Alloy X750 = IX | Titanium = TI
Specifications Standard Cracking Pressure
3.50 psi
Specifications Valve Style
National Pipe Thread (NPT) Threads = BU
