Check-All® 1" WV Style Wafer Insert Check Valve
Check-All® 1" WV Style Wafer Insert Check Valve
SKU:WVS-0efbe9
Durable 1" Check-All® WV Style Wafer Insert Check Valve for reliable performance in rigid piping applications. Made in the USA.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
Check-All® 1" WV Style Wafer Insert Check Valve
$129.99
Quantity: 1
Claim Your Seller Account
Check-All® 1" WV Style Wafer Insert Check Valve
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

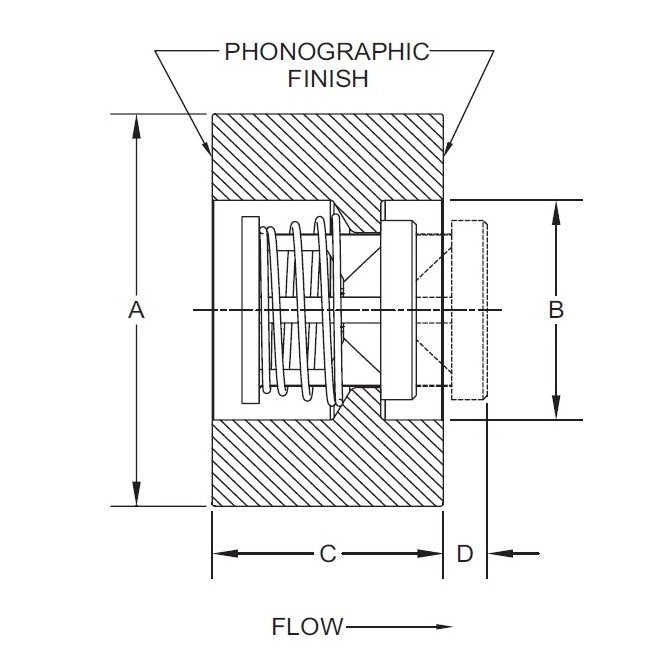

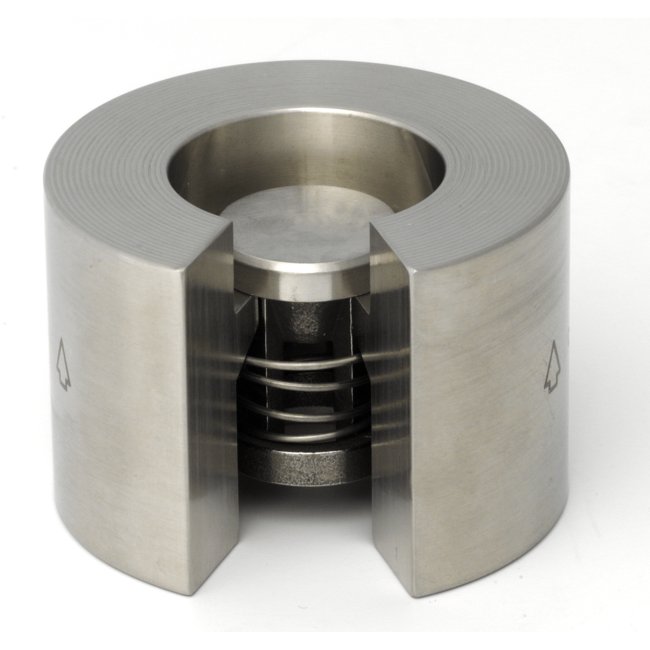

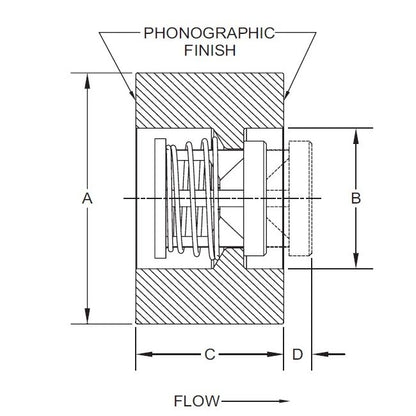

The Check-All® 1" WV Style Wafer Insert Check Valve is a precision-engineered valve designed to fit seamlessly between ANSI flanges, providing reliable performance in rigid piping applications. Constructed with high-grade 316 Stainless Steel, this valve ensures durability and longevity. With a standard cracking pressure of 1.50 psi and various seat material options available, this valve offers versatility for different operational requirements. Meeting ANSI Class 150 to 2500 non-shock pressure ratings, this valve is suitable for a wide range of applications, including low-pressure relief and vacuum breaker functions. Made in the USA, this valve exemplifies quality and precision engineering.
Product Specifications
Note
Made in USA.
Specifications Body Material
316 Stainless Steel = SS | 316L Stainless Steel = SS | Alloy 20 = A2 | Alloy B = HB | Alloy C-276 = HC | Brass = BR | Carbon Steel = CS | Monel® 400 or Alloy R405 = MO | Titanium = TI
Specifications Certifications
European Conformity (CE) PED 2014/68/EU Complaint | International Organization for Standardization (ISO 9001) Certified
Specifications Nominal Pipe Size
1 in
Specifications Non Shock Pressure Rating
American National Standards Institute (ANSI) Class 150 to 2500
Specifications Non Shock Pressure Rating At 100 Degree Fahrenhei
1500 psig
Specifications Non Shock Pressure Rating For Brass Valves
American National Standards Institute (ANSI) Class 150 - 300
Specifications Seat Material
"Metal-to-Metal" = MT | Aflas® = AS | Buna-N = BN | Ethylene Propylene Diene Monomer (EPDM) = EP (EP seats not recommended for use with Carbon Steel valves.) | Fluoro-Elastomer (FKM) = VT | Neoprene = NE | Perfluoroelastomer = KZ | Polytetrafluoroethylene (PTFE) = TF
Specifications Size Code
H
Specifications Special Options
T = FEP Encapsulated Spring (Contact the factory for more options)
Specifications Spring Material
17-7PH Stainless Steel = PH | 316 Stainless Steel = SS | Alloy C-276 = HC | Inconel® X750 or Alloy X750 = IX | Monel® 400 = MO | Titanium = TI
Specifications Standard Cracking Pressure
1.50 psi
Specifications Valve Style
WV
