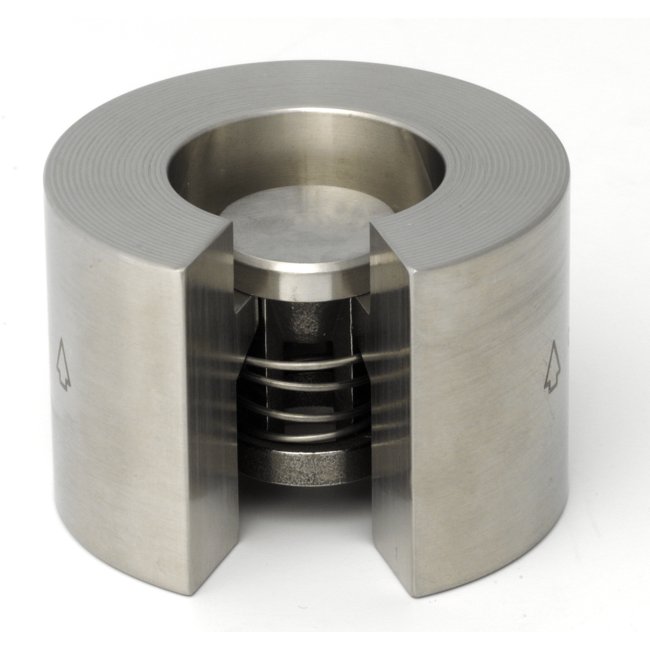

Check-All® 1" WV Style Wafer Insert Check Valve - Stainless Steel
Check-All® 1" WV Style Wafer Insert Check Valve - Stainless Steel
SKU:WVS-673271
Check-All® 1" WV Style Wafer Insert Check Valve - Stainless Steel, durable valve for ANSI flanges, 0.125 psi cracking pressure, ANSI Class 150-2500 rated, USA-made
Regular price
$99.99
Regular price
Sale price
$99.99
Unit price
per
Initiate Order
Check-All® 1" WV Style Wafer Insert Check Valve - Stainless Steel
$99.99
Quantity: 1
Claim Your Seller Account
Check-All® 1" WV Style Wafer Insert Check Valve - Stainless Steel
$99.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Check-All® 1" WV Style Wafer Insert Check Valve is expertly designed to effortlessly fit between ANSI flanges, offering unparalleled flexibility in installation. Made from high-quality 316 Stainless Steel, this valve ensures durability and reliability in demanding applications. With a standard cracking pressure of 0.125 psi, it serves as a versatile low pressure relief valve or vacuum breaker. Meeting ANSI Class 150 to 2500 ratings, this valve guarantees performance excellence. Engineered with precision in the USA, this Check Valve is a top choice for industrial and institutional needs.
Product Specifications
Note
Made in USA.
Specifications Body Material
316 Stainless Steel = SS | 316L Stainless Steel = SS | Alloy 20 = A2 | Alloy B = HB | Alloy C-276 = HC | Brass = BR | Carbon Steel = CS | Monel® 400 or Alloy R405 = MO | Titanium = TI
Specifications Certifications
European Conformity (CE) PED 2014/68/EU Complaint | International Organization for Standardization (ISO 9001) Certified
Specifications Nominal Pipe Size
1 in
Specifications Non Shock Pressure Rating
American National Standards Institute (ANSI) Class 150 to 2500
Specifications Non Shock Pressure Rating At 100 Degree Fahrenhei
1500 psig
Specifications Non Shock Pressure Rating For Brass Valves
American National Standards Institute (ANSI) Class 150 - 300
Specifications Note For Standard Cracking Pressure
0.125 psi springs are not recommended for installations with flow vertical down.
Specifications Seat Material
"Metal-to-Metal" = MT | Aflas® = AS | Buna-N = BN | Ethylene Propylene Diene Monomer (EPDM) = EP (EP seats not recommended for use with Carbon Steel valves.) | Fluoro-Elastomer (FKM) = VT | Neoprene = NE | Perfluoroelastomer = KZ | Polytetrafluoroethylene (PTFE) = TF
Specifications Size Code
H
Specifications Special Options
T = FEP Encapsulated Spring (Contact the factory for more options)
Specifications Spring Material
17-7PH Stainless Steel = PH | 316 Stainless Steel = SS | Alloy C-276 = HC | Inconel® X750 or Alloy X750 = IX | Monel® 400 = MO | Titanium = TI
Specifications Standard Cracking Pressure
0.125 psi
Specifications Valve Style
WV
