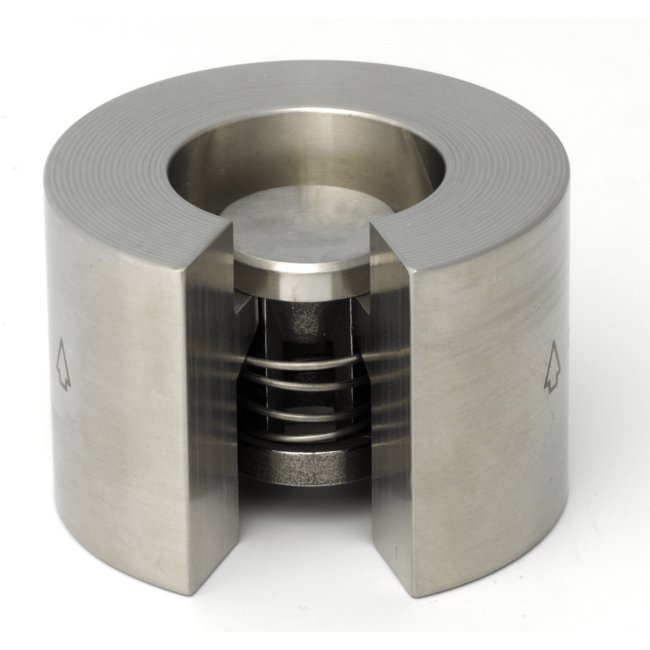

Check-All® 2-1/2" WV Style Wafer Insert Check Valve
Check-All® 2-1/2" WV Style Wafer Insert Check Valve
SKU:WVS-5a142a
High-quality 2-1/2" WV Style Wafer Insert Check Valve, ANSI Class 150 - 1500, CE PED and ISO 9001 compliant.
Regular price
$289.99
Regular price
Sale price
$289.99
Unit price
per
Initiate Order
Check-All® 2-1/2" WV Style Wafer Insert Check Valve
$289.99
Quantity: 1
Claim Your Seller Account
Check-All® 2-1/2" WV Style Wafer Insert Check Valve
$289.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Check-All® 2-1/2" WV Style Wafer Insert Check Valve is a versatile valve designed to fit between ANSI flanges, offering quick installation and removal in rigid piping applications. Its 316 Stainless Steel body provides durability and reliability. This valve meets ANSI Class 150 - 1500 non-shock pressure ratings and is compliant with European Conformity (CE) PED, ISO 9001, API 594, and B16.34 standards. Made in the USA for superior quality and performance.
Product Specifications
Note
Made in USA.
Specifications Body Material
316 Stainless Steel = SS | 316L Stainless Steel = SS | Alloy 20 = A2 | Alloy B = HB | Alloy C-276 = HC | Brass = BR | Carbon Steel = CS | Monel® 400 or Alloy R405 = MO | Titanium = TI
Specifications Certifications
European Conformity (CE) PED 2014/68/EU Complaint | International Organization for Standardization (ISO 9001) Certified
Specifications Nominal Pipe Size
2-1/2 in
Specifications Non Shock Pressure Rating
American National Standards Institute (ANSI) Class 150 - 1500
Specifications Non Shock Pressure Rating At 100 Degree Fahrenhei
1500 psig
Specifications Non Shock Pressure Rating For Brass Valves
American National Standards Institute (ANSI) Class 150 - 300
Specifications Note For Standard Cracking Pressure
0.500 psi is the only standard cracking pressure for spring materials other than Stainless Steel.
Specifications Seat Material
"Metal-to-Metal" = MT | Aflas® = AS | Buna-N = BN | Ethylene Propylene Diene Monomer (EPDM) = EP (EP seats not recommended for use with Carbon Steel valves.) | Fluoro-Elastomer (FKM) = VT | Neoprene = NE | Perfluoroelastomer = KZ | Polytetrafluoroethylene (PTFE) = TF
Specifications Size Code
L
Specifications Special Options
T = FEP Encapsulated Spring (Contact the factory for more options)
Specifications Spring Material
17-7PH Stainless Steel = PH | 316 Stainless Steel = SS | Alloy C-276 = HC | Inconel® X750 or Alloy X750 = IX | Monel® 400 = MO | Titanium = TI
Specifications Standard Cracking Pressure
0.500 psi
Specifications Valve Style
WV
